Hi all,
I've bought a set of megaphone dominator pipes as my dommi only came with the standard peashooters.
The pipes have not arrived yet so I cannot offer them up to the bike and see what's needed so the question is this, do I need different brackets and foot pegs and if so does anyone know where these can be obtained or if someone has had this problem how did they get round it ie fabricate brackets or used different model pegs etc.

Kind regards
Steve

bozman said:
Hi all,
I've bought a set of megaphone dominator pipes as my dommi only came with the standard peashooters.
The pipes have not arrived yet so I cannot offer them up to the bike and see what's needed so the question is this, do I need different brackets and foot pegs and if so does anyone know where these can be obtained or if someone has had this problem how did they get round it ie fabricate brackets or used different model pegs etc.

Kind regards
Steve
Click to expand...
Yes.
You need different brackets and the race control frames. And also the shift rod.

Did the brackets come with the megaphones?

Finding them is going to be hard unless you make them or have them made for you.

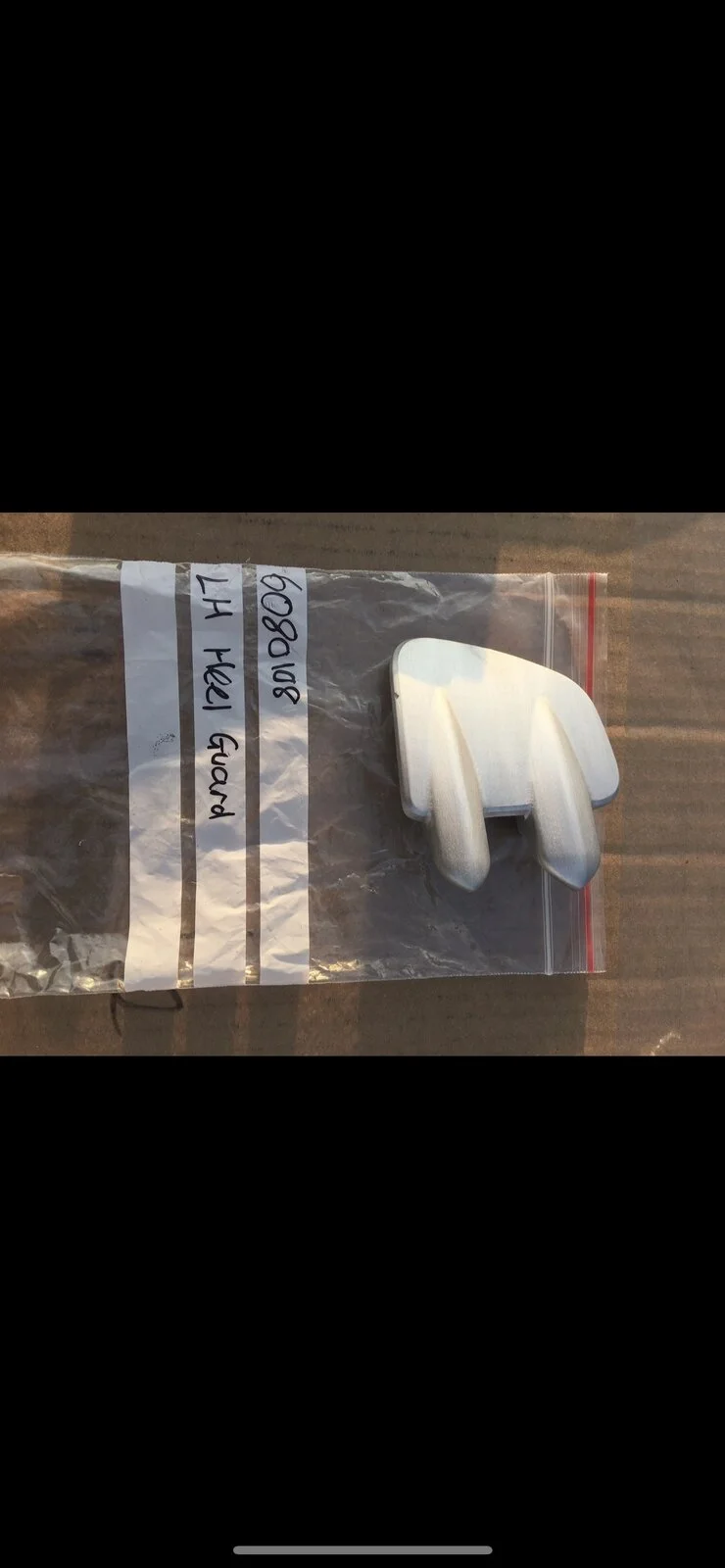

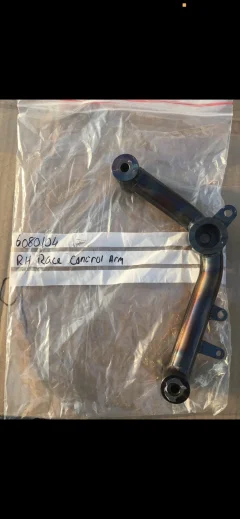

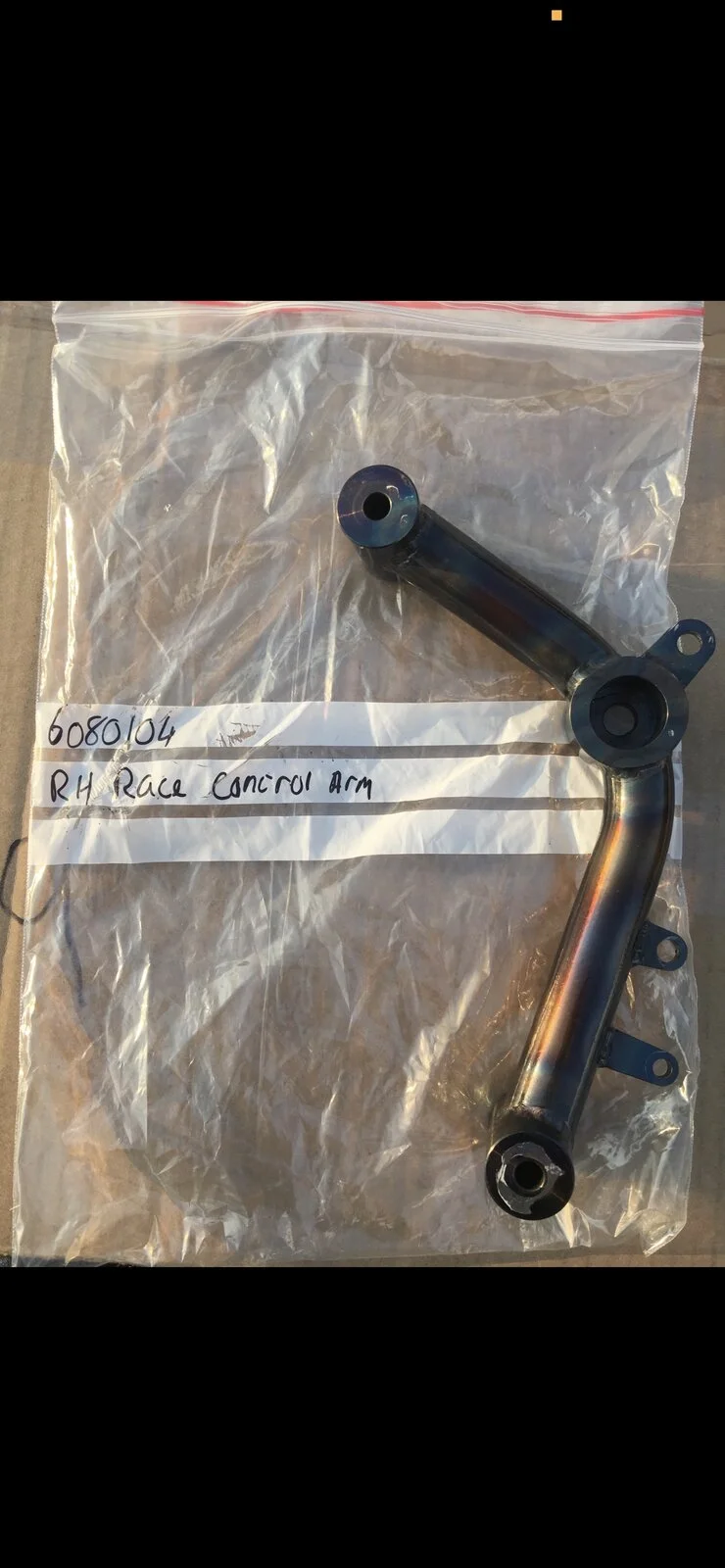

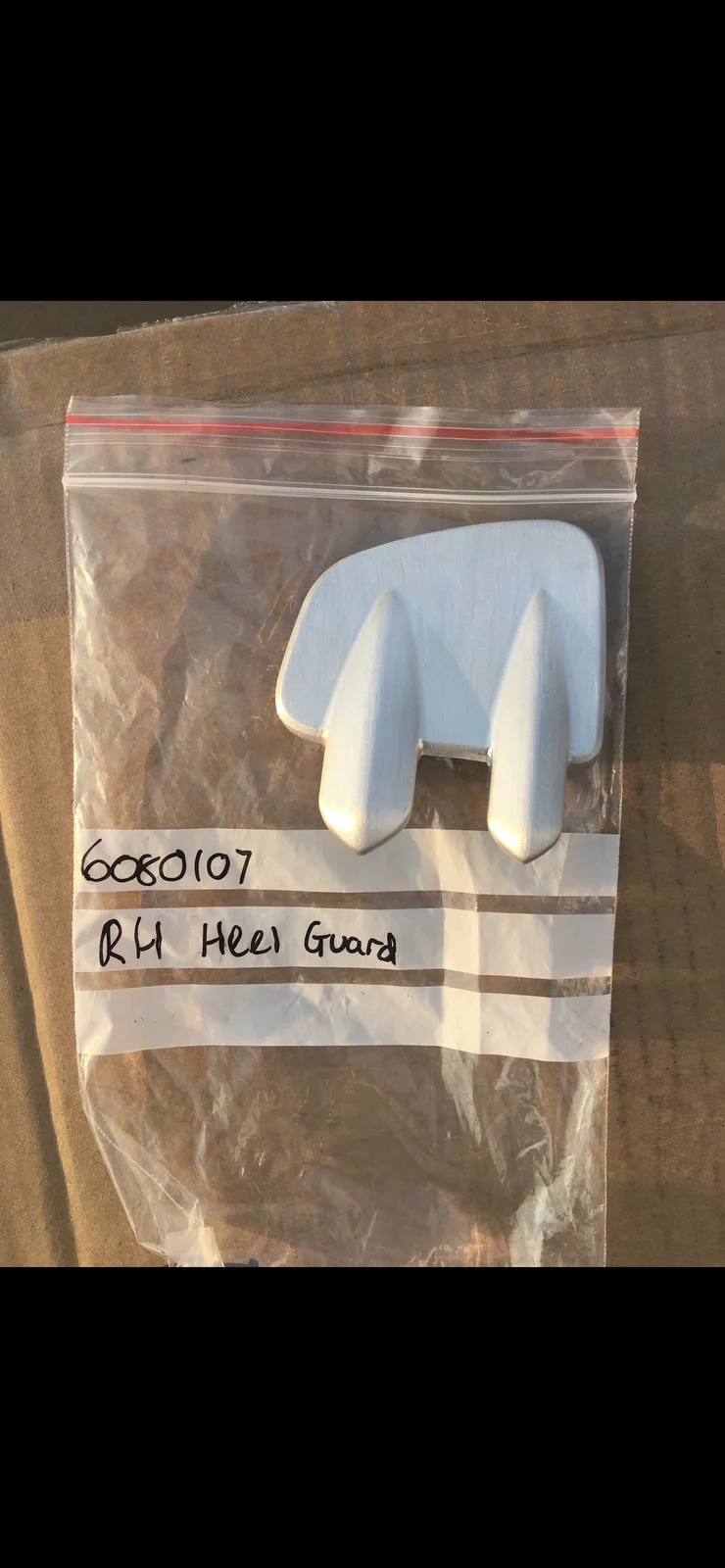

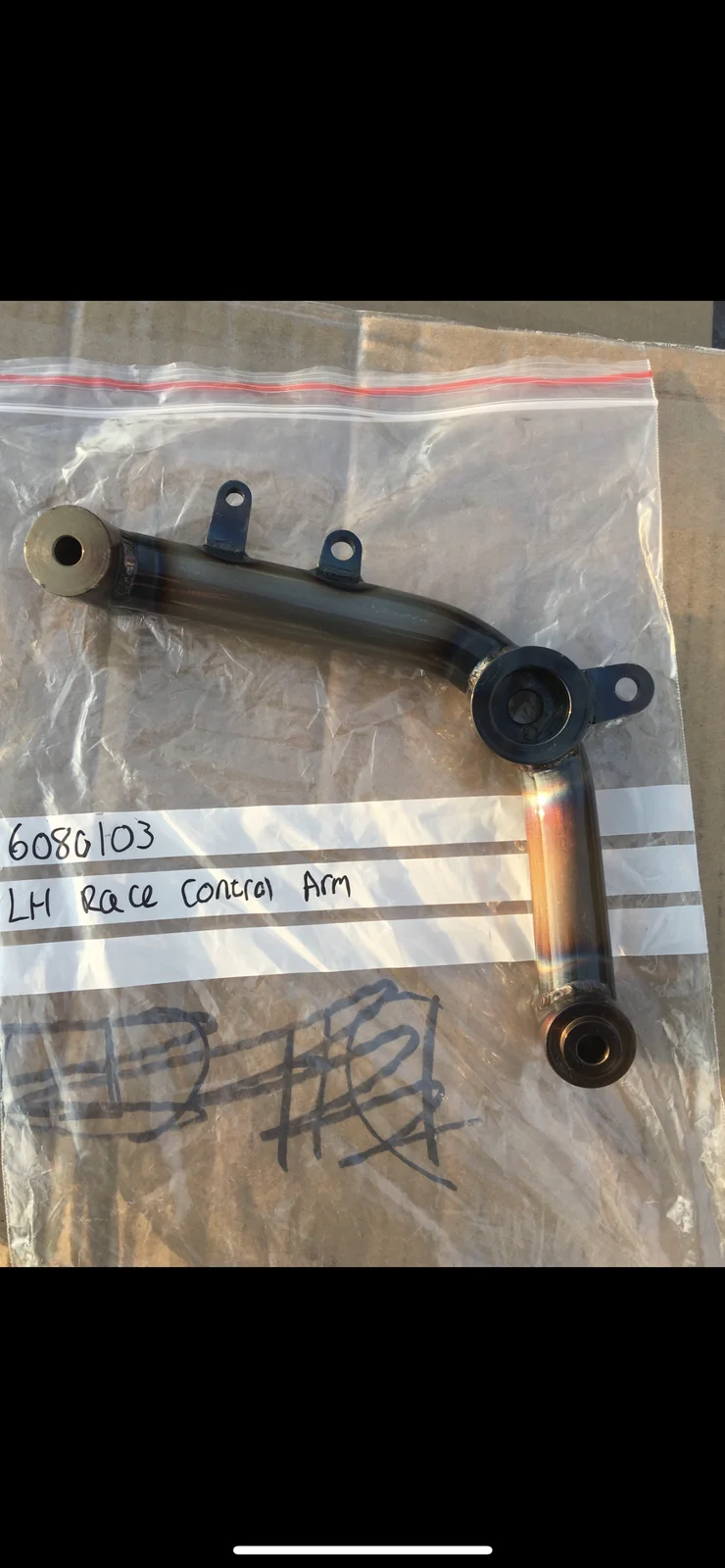

Below are photos of the needed race frames and you could make up some different heel guards but below are the factory ones.

Mine are for the Domi naked, only difference is clear coat.


Attachments

  • Dominator 961 ss
    1.1 MB · Views: 125
  • Dominator 961 ss
    142.9 KB · Views: 81
  • Dominator 961 ss
    1.1 MB · Views: 81
  • Dominator 961 ss
    76.1 KB · Views: 101
Last edited:
As mentioned, foot control hangers, heel plates, longer shift rod, and foot brake lever stop. If you go to the resources section of this forum, there's an installation guide there.
You'll also need to change the map.

Thanks guys, I will wait til they arrive and offer them up to see if I can fabricate the hangers. Spent ages finding the megaphones and they cost a bit but hopefully the end result will be worth it.
Looked at a previous thread about silences and will look at sourcing those to. Photos will come in handy so thanks Voodooo.

Happy riding.

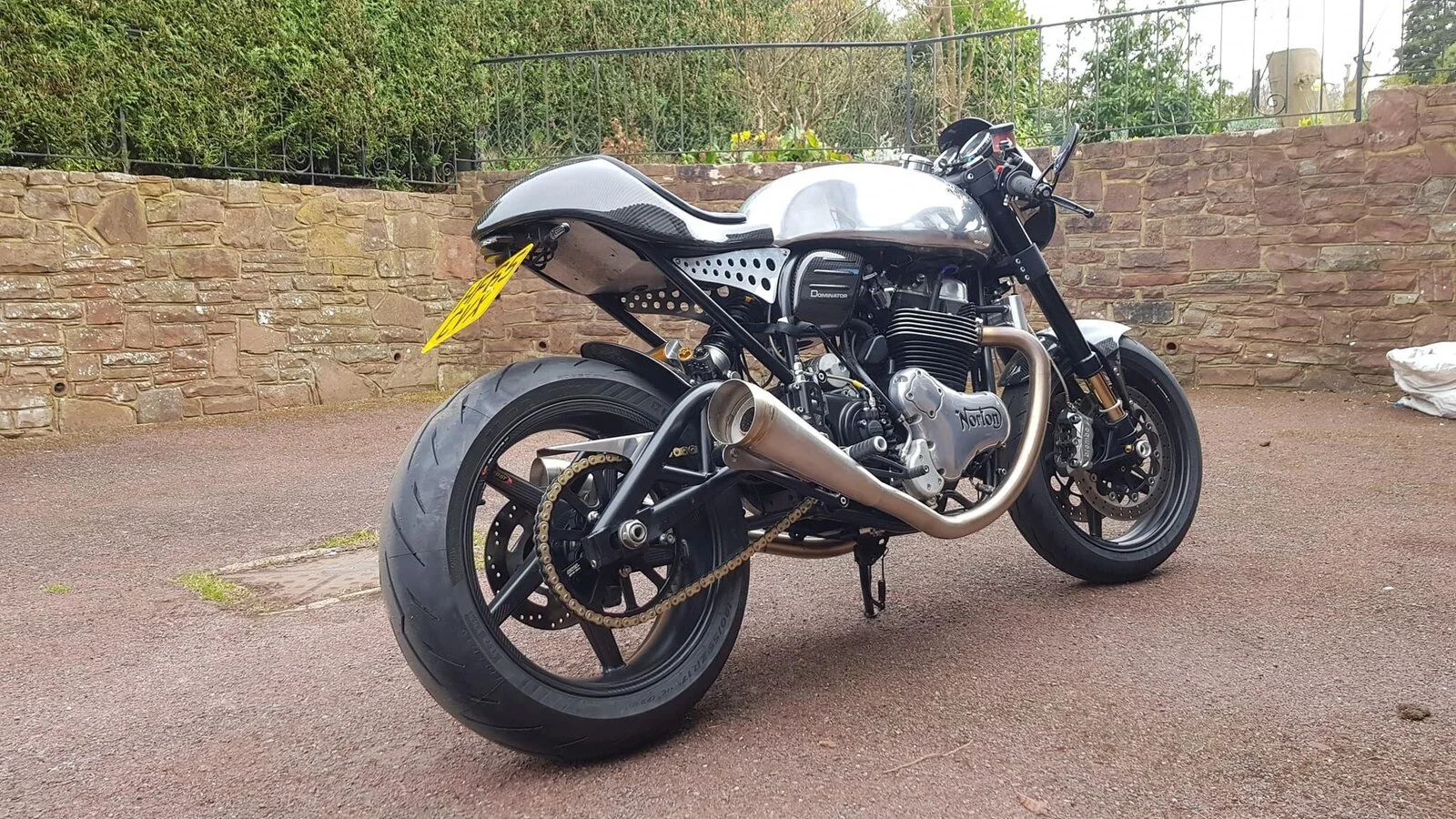

I bought a set last year and it was just the pipes. I fabricated small brackets that then mounted them to the standard exhaust brackets. I’ll post up some more pictures. The original brackets and heel guards are pretty much unobtanium.....I did speak to Olley at Theil and he was looking at making the mounting bars, but not sure what came of that. I guess the advantage of using the existing mounts is you still have the vibration insulators in place, so the exhaust isn’t solidly mounted....some have cracked their mounts.

Vernon240 said:
View attachment 102969
I bought a set last year and it was just the pipes. I fabricated small brackets that then mounted them to the standard exhaust brackets. I’ll post up some more pictures. The original brackets and heel guards are pretty much unobtanium.....I did speak to Olley at Theil and he was looking at making the mounting bars, but not sure what came of that. I guess the advantage of using the existing mounts is you still have the vibration insulators in place, so the exhaust isn’t solidly mounted....some have cracked their mounts.
Click to expand...
How do they sound ? Looks like your ground clearance has improved . Nice work.

Vernon240 said:
View attachment 102969
I bought a set last year and it was just the pipes. I fabricated small brackets that then mounted them to the standard exhaust brackets. I’ll post up some more pictures. The original brackets and heel guards are pretty much unobtanium.....I did speak to Olley at Theil and he was looking at making the mounting bars, but not sure what came of that. I guess the advantage of using the existing mounts is you still have the vibration insulators in place, so the exhaust isn’t solidly mounted....some have cracked their mounts.
Click to expand...
Bloody good call actually, as the vibrations on the race control mountings do cause problems

TonyA said:
How do they sound ? Looks like your ground clearance has improved . Nice work.
Click to expand...

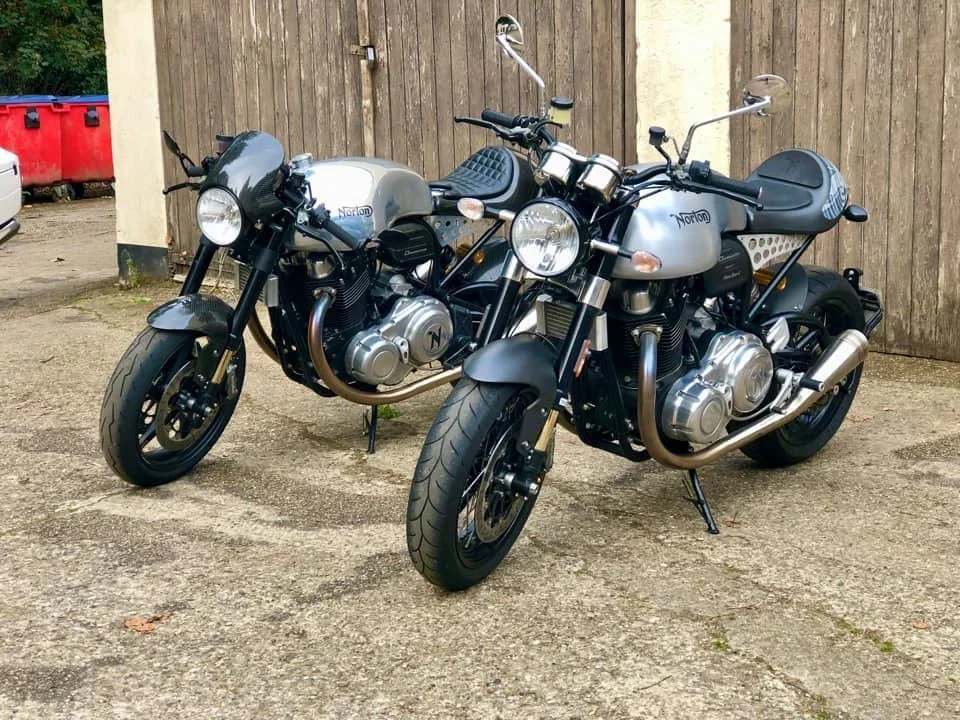

Still pretty damn loud, but more socially acceptable...I like them. Not sure if they get more ground clearance or not....here are some pics next to the one and only ‘high bar’ Dominator.

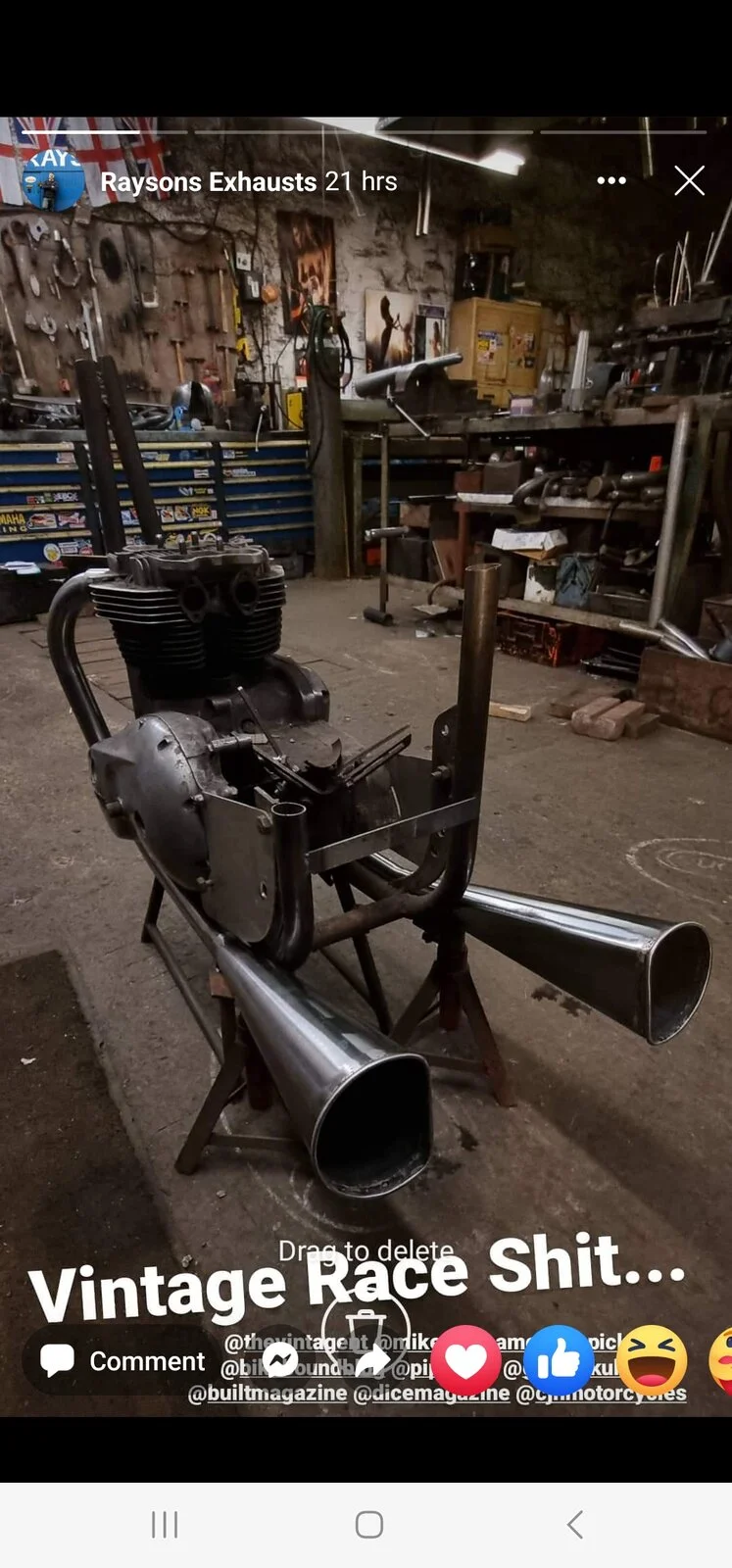

The guy that'll be doing it, recently did these for one of his customers.....I'm liking that look! I'm thinking those, but higher like the 961 megaphones, and spring mounted up front.
Stu Bodycote said:
No, just in stainless.
Click to expand...


Attachments

  • Dominator 961 ss
    201.3 KB · Views: 115
A few pcs of my brackets I made for my megas:

Dominator 961 ss


Dominator 961 ss


Dominator 961 ss


I made them the same thickness as the short open brackets

Dominator 961 ss


Dominator 961 ss


Dominator 961 ss


you can see here they needed a 'twsit' to be put in them:

Dominator 961 ss


Dominator 961 ss


Dominator 961 ss


If I was doing it again, I'd tweak the design slightly. You can see they don't center on the mounts properly...OCD I know lol!

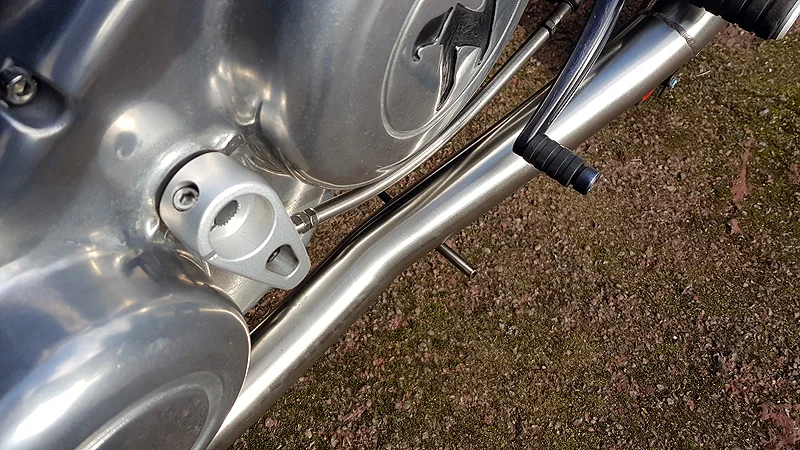

and a final note, I had to extend the arm on the side stand so I could actually reach it! This was a tube of stainless I had laying around.

Dominator 961 ss

Vernon240 said:

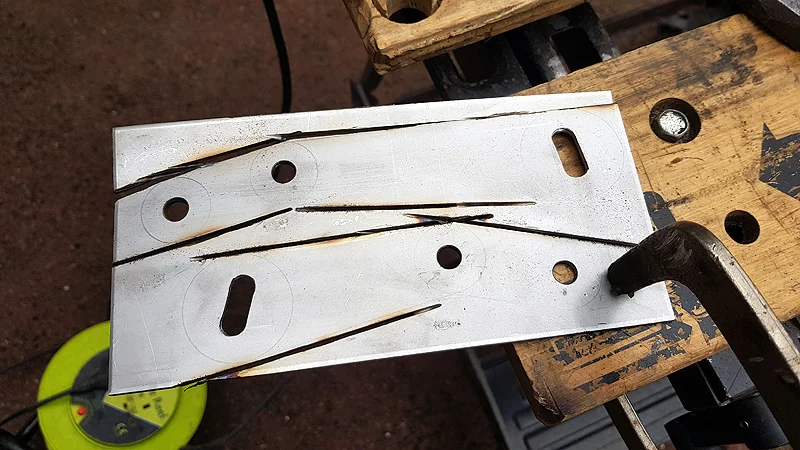

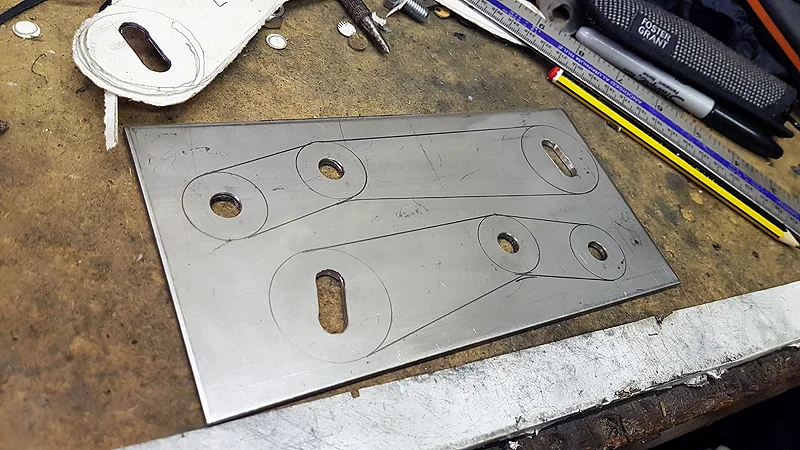

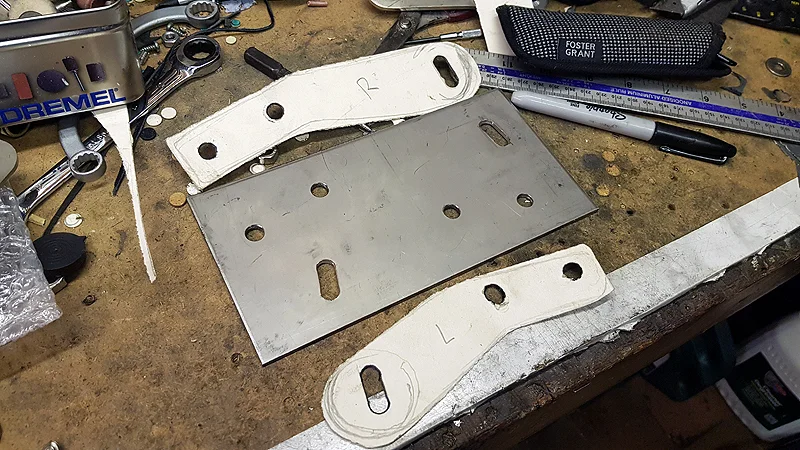

A few pcs of my brackets I made for my megas:

View attachment 103030

View attachment 103031

View attachment 103032

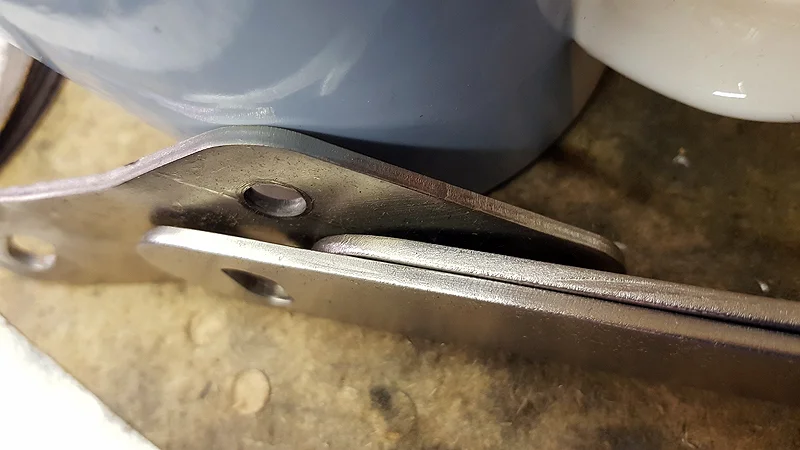

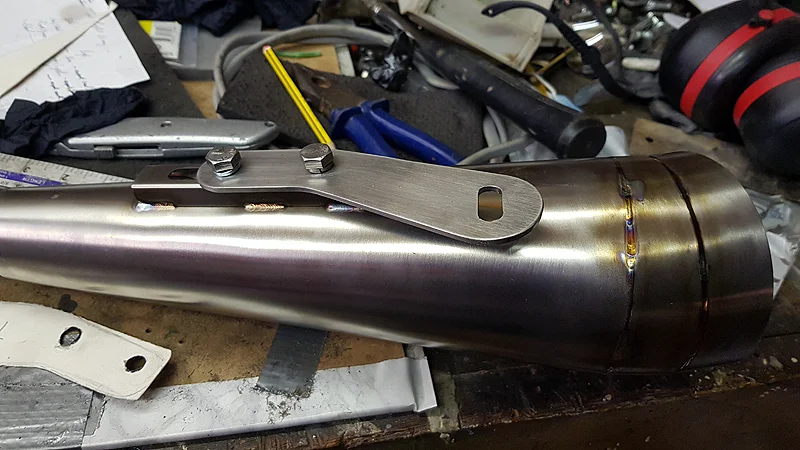

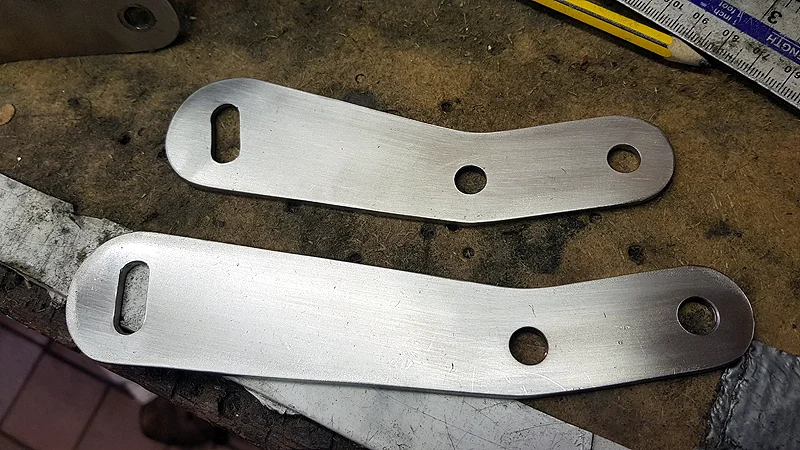

I made them the same thickness as the short open brackets

View attachment 103033

View attachment 103034

View attachment 103035

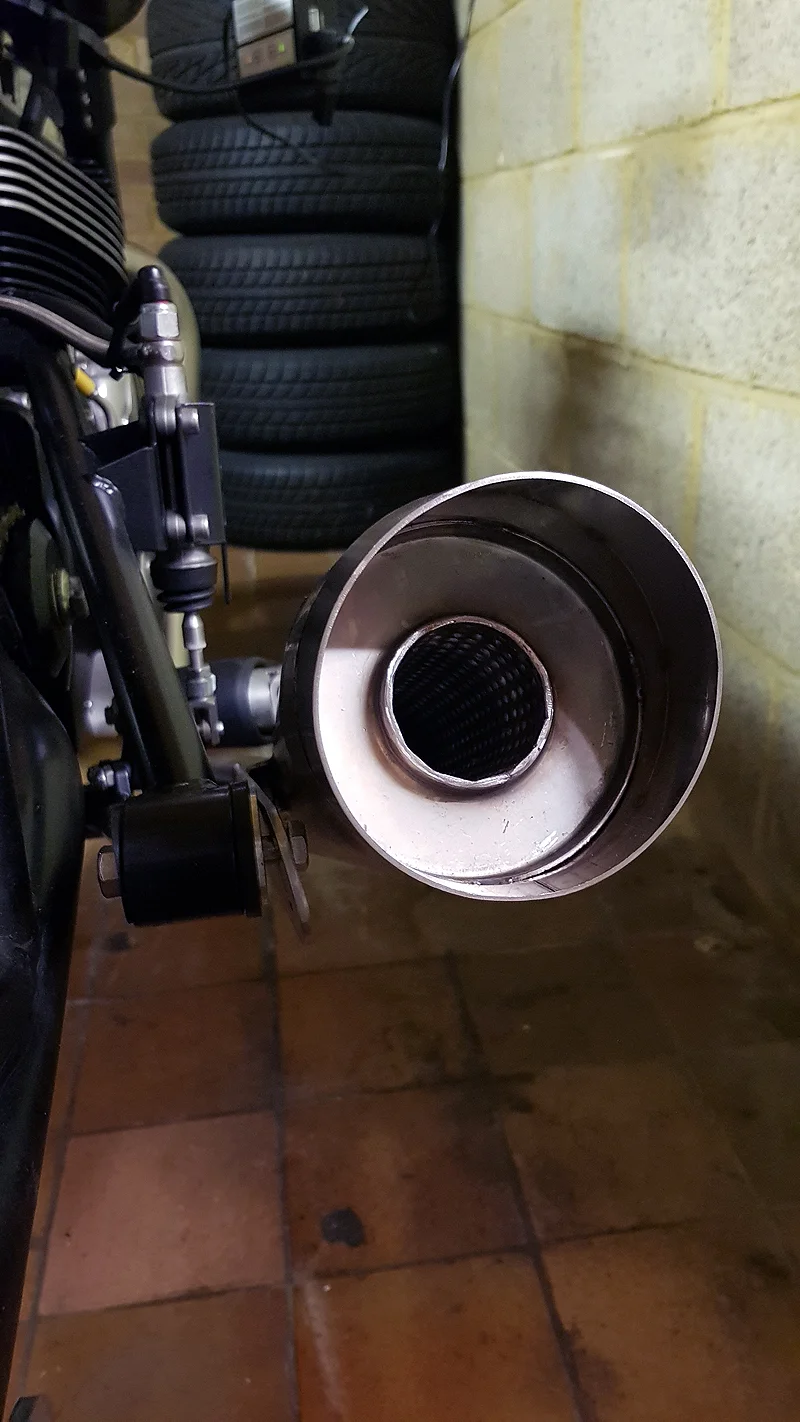

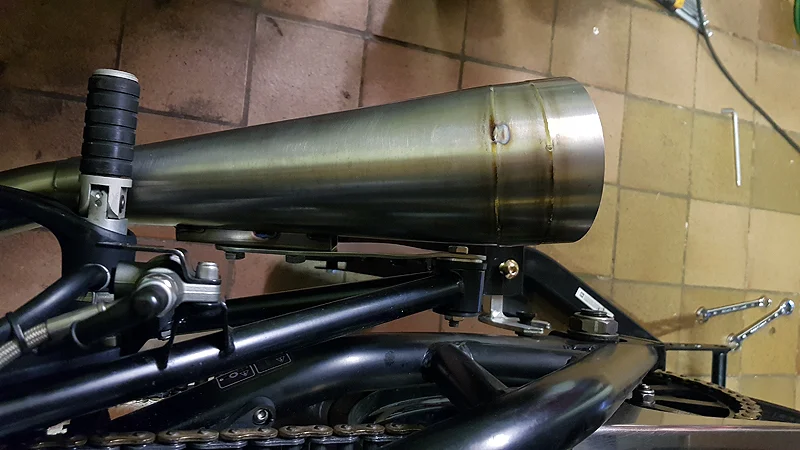

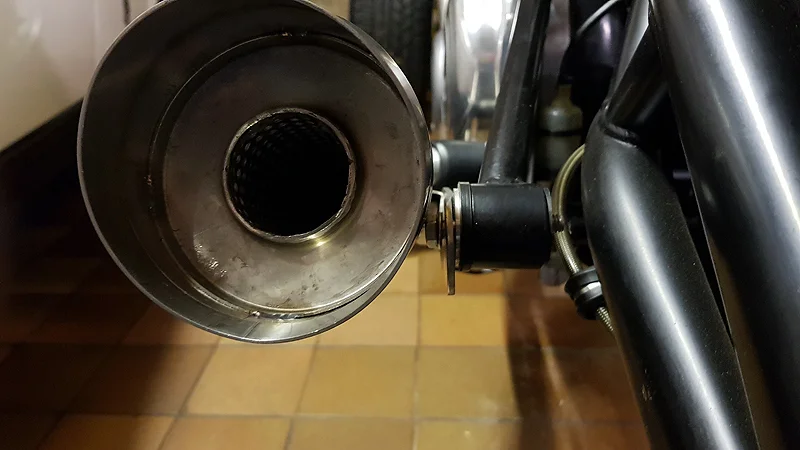

you can see here they needed a 'twsit' to be put in them:

View attachment 103036

View attachment 103037

View attachment 103038

If I was doing it again, I'd tweak the design slightly. You can see they don't center on the mounts properly...OCD I know lol!

and a final note, I had to extend the arm on the side stand so I could actually reach it! This was a tube of stainless I had laying around.

View attachment 103039
Click to expand...
Very nice work indeed. You really have a metal working skill and the tools you need.

TonyA said:
This is a good thing , you don't want them cracking .
Click to expand...
I'm hoping that them bolting up to the original rubber type mounts will stop them cracking like the originally solid mounted Megas. Time will tell I guess!

Been a while since I logged in. But back in 2016, I had a replica set of megas made for my SS as I didn’t want to molest the originals to quieten them down. The fabricator laughed when he saw how the originals were solid mounted and ‘insisted’ on adding a rubber mount. 7 years later still going strong.

Dominator 961 ss

My bike is off to Raysons exhausts soon, see what we can come up with. I'm leaning towards a more traditional Manx tailpipe design, with the headers spring mounted.
