correct ignition switch

Status
Not open for further replies.
Joined
Jan 4, 2010
Messages
107
I received two switches with my 69S. One has seven terminals in a circle on the back and the other four across the center. I don't have a key for either so I am curious wich one to take to the locksmith. Your help appreciated as always.

Tom

Joined
Oct 6, 2009
Messages
114
I'll vote for 4 as I know it's not 7. Next time I'm out in the garage I'll check for sure. I was thinking it was 3 but maybe it was the fact that it's a 3 position switch. Definitely not 7 though.

Joined
Jun 17, 2009
Messages
642
parking lights, off, ignition on, ignition and headlight/tail light on All Commandos are four position switches, my guess

Joined
Jul 3, 2009
Messages
833
Country flag
69-70 is a 2 position switch where later models have a 3 position switch.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,489
Country flag
possm said:
69-70 is a 2 position switch where later models have a 3 position switch.

And later-on (from '72) they had four position switches = [Parking lights] - [OFF] - [IGN]. - [IGN + Lights].

Joined
Jan 4, 2010
Messages
107
The switch with the four terminals is actually a pair of deuces and won't fit the hole in the side cover. The other switch (7 terminal) is three deuces and a single. It also has a rubber boot that sheilds it. Without the key, I can't tell how many position it is. There are only three wires from the harness to the switch. I'm hoping that I have the original switch as then I would have the key for the fork lock.


Tom


DogT

VIP MEMBER
Joined
Jan 20, 2009
Messages
7,446
Country flag

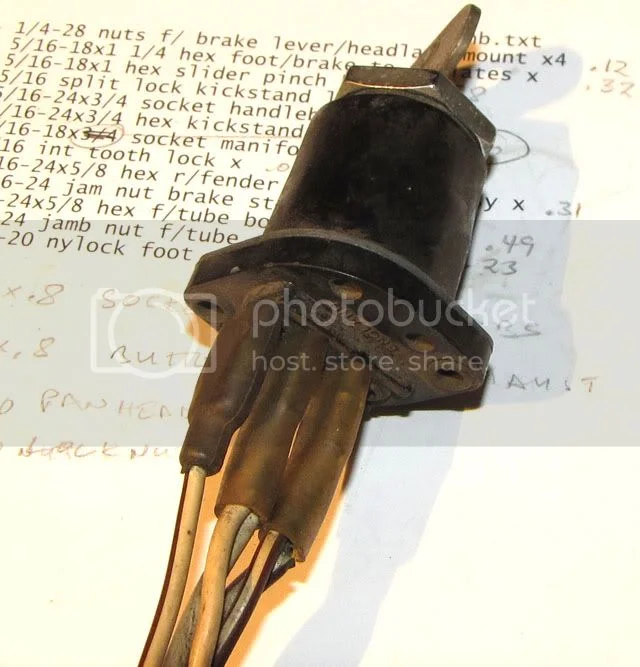

My '69 "S" had a 3 wire connection, on and off. Here is a pic of the back of it.

correct ignition switch


I see you are in PA, we have at least 3 - '69 "S" models in VA/NC, we should form an East coast club of the '69 "S". The others are Nelson in Charlotte, sidrilley in Madison, and I think there is someone in NJ too, I'll have to check.

Dave
69S


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,489
Country flag
TJKII said:
The other switch (7 terminal) is three deuces and a single. It also has a rubber boot that sheilds it. Without the key, I can't tell how many position it is. There are only three wires from the harness to the switch.

You should still be able to use the four position (7 terminal) switch with your "three wire" setup, by connecting the brown/blue to terminal 1, white to terminal 2, & brown/green to terminal 3 or 4 (depending on whether you wanted the headlamp switch operated parking lights or not?) Some pattern switches appear to have different internal connections (T3 & T4?) to the original Lucas 4-position switch?


Lucas four key position,- 7 terminal switch. Note that if there are only three wires (no blue/yellow) then brown/green can be connected to ter. 4 if parking lights are not required?
correct ignition switch

Joined
Jan 4, 2010
Messages
107
Dave, Thanks, that is the switch. And,after i removed some of the excess paint from the hole, the switch does fit. Dave, You the Man. Thank you and everyone else.
Dave , you are right. It seems that we do have a fair concentration of S's in the mid Atlantic states. Maybe after we get 'em together we should get together.

Tom
