Connection on the warning light module (1977 - MK3)

Status
Not open for further replies.
Joined
Jan 22, 2021
Messages
2
Country flag
Hi Access Norton,
While rewiring the main harness of my commando, I got confused with the connection of the warning light module. It has 5 threads: IGN, AL, AL, WL, E. Can anyone help me figure out which wire of which color goes on which thread?

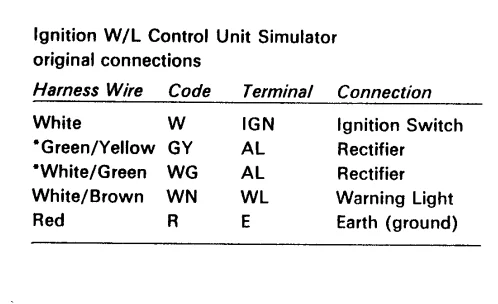

Section J8.
Connection on the warning light module (1977 - MK3)


The brown/green (NG) and blue (U) wires in that harness section are not used with the standard "simulator" (assimilator).
