Commando Replica Side panels

Stuart SS · Jun 15, 2011

Hi Guys

As part of my renovation of my 73 Roadster I am replacing the fuel tank and the side panels .

I have been offered a Second chance offer on a set of metal duplicated side apensl to suit, out of USA . These are surpposed identical replicas but are those with the ignition switch in the left side forward corner. Were the 750s the one with this ignition switch mount possy ?

Do you know if in fact they are all the same ? I know it has been a bit of a night mare with replicas actually fitting as well ! (??)

Your thoughts appreciated ~

Cheers

SS

L.A.B. · Jun 15, 2011

Stuart SS said:
I have been offered a Second chance offer on a set of metal duplicated side apensl to suit, out of USA . These are surpposed identical replicas but are those with the ignition switch in the left side forward corner. Were the 750s the one with this ignition switch mount possy ?

Not only are those side panels with the hole for the ignition switch on the left panel a different shape to the 1971-on Roadster panels, but they were fitted to the 1969-70 'S' and '70 Roadster central oil tank models where the battery is accessed from the right hand side, so they aren't suitable for a 1971-on model with a R/H mounted oil tank and L/H battery access.

Flo · Jun 15, 2011

I have a pair of pattern side panels for a roadster, had them about 15 years now. Never got them to fit.
Ashtray anyone?

swooshdave · Jun 15, 2011

Flo said:
I have a pair of pattern side panels for a roadster, had them about 15 years now. Never got them to fit.
Ashtray anyone?

If you weren't over there I'd tell you to send them to me. :mrgreen:

Cheesy · Jun 15, 2011

L.A.B. said:
Stuart SS said:

I have been offered a Second chance offer on a set of metal duplicated side apensl to suit, out of USA . These are surpposed identical replicas but are those with the ignition switch in the left side forward corner. Were the 750s the one with this ignition switch mount possy ?

Click to expand...

Not only are those side panels with the hole for the ignition switch on the left panel a different shape to the 1971-on Roadster panels, but they were fitted to the 1969-70 'S' and '70 Roadster central oil tank models where the battery is accessed from the right hand side, so they aren't suitable for a 1971-on model with a R/H mounted oil tank and L/H battery access.

These are the original side panels off my 71 Roadster, now this may or may not be true but I was told that the Canadian models (which this bike was) had this style of side panel later than other regions, Im not sure I like the upwards forward slope on the LHS panel though

L.A.B. · Jun 15, 2011

Cheesy said:
These are the original side panels off my 71 Roadster, now this may or may not be true but I was told that the Canadian models (which this bike was) had this style of side panel later than other regions, Im not sure I like the upwards forward slope on the LHS panel though

That would be odd-literally ?
http://www.classicbike.biz/Norton/Broch ... mmando.pdf

Where would the tool roll go? Or has that left hand panel got a tool pouch?

swooshdave · Jun 15, 2011

What he means is the Canadians got the left over 70 bikes in 72 and were told they were the latest models. :mrgreen:

Orsonoce · Jun 15, 2011

Flo said:
I have a pair of pattern side panels for a roadster, had them about 15 years now. Never got them to fit.
Ashtray anyone?

interested. I'll PM you.
cheers

Cheesy · Jun 15, 2011

L.A.B. said:
Cheesy said:

These are the original side panels off my 71 Roadster, now this may or may not be true but I was told that the Canadian models (which this bike was) had this style of side panel later than other regions, Im not sure I like the upwards forward slope on the LHS panel though

Click to expand...

That would be odd-literally ?
http://www.classicbike.biz/Norton/Broch ... mmando.pdf

Where would the tool roll go? Or has that left hand panel got a tool pouch?

I have no idea where the tool pouch would be, it is long gone, Ill have a look at the cover tonight to see if there is anything inside it. The story I was told that it was a Canadian model and they requested that position for the key seems feasible as we all know the Brits were good at using up old stock/phasing in model changes etc. Other than the side covers it is definitely a 71 in terms of frame tag (April 71), black cylinder, chain guard.

shrugger · Jun 15, 2011

I'm pretty sure a black cylinder would be from a 72 combat or a 73 750.
Check that PDF again. No black jugs to be found. It's not really a big deal however.

Stuart SS · Jun 15, 2011

Thanks blokes for the prompt responses ~

Here is the actual link that was originally offering the covers in question ~

http://cgi.ebay.com.au/ws/eBayISAPI.dll ... K:MEWAX:IT

Josh Cox · Jun 15, 2011

Hey Stuart,

Which part of FNQ are you at ?.

I have a RH panel that should be correct for your bike (used).

Josh
Cairns
0428 241 105

Mareeba ?

Rohan · Jun 15, 2011

Stuart SS said:
Thanks blokes for the prompt responses ~

Here is the actual link that was originally offering the covers in question ~

Definitely not 850 sidecovers, of any kind.
Always be aware that some sellers have no idea.....

(If they don't have a Norton, this is hardly surprising ?)

Stuart SS · Jun 16, 2011

I sent areply and he came back with the following coment;

Hey,

These covers are for the Early S type commando roadsters, Where the oil tank is in the center of the left & right side covers. The hole in the cover is for the ignition switch.

I have pics of these covers on a Commando frame. They seem to fit perfectly. I can send the pics to you, and you can see for yourself if they will fit on your Commando or not.

Thanks
Bruce

Seems "Bruce" would save himself a lot of grief by stating that on the EBay listing (?)

Stuart SS · Jul 1, 2011

hey Josh ~

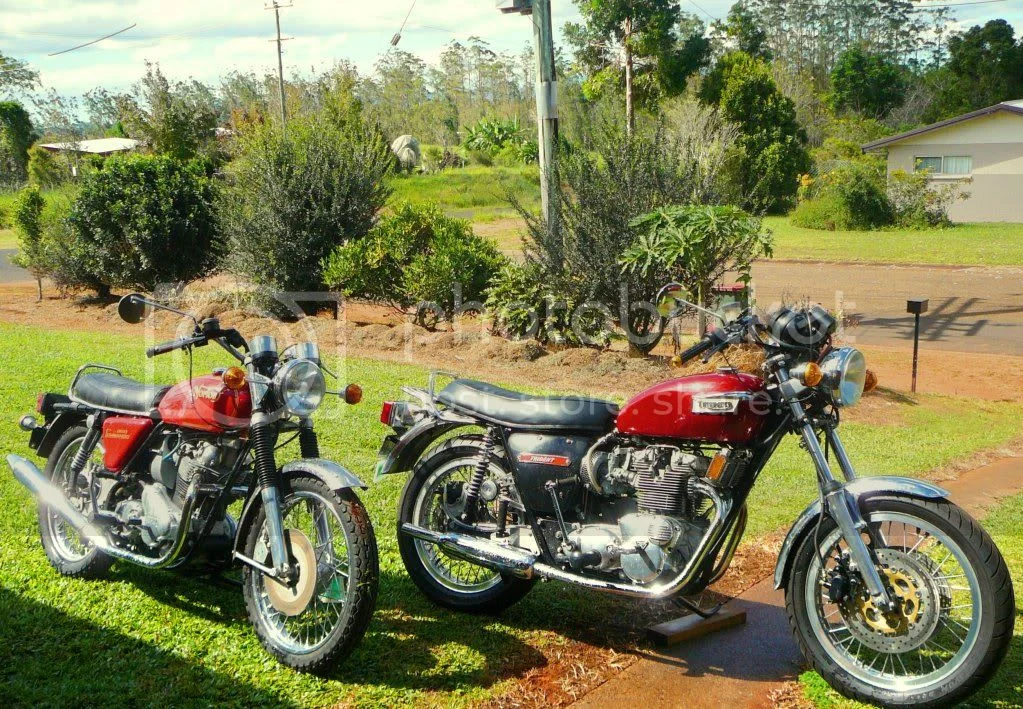

What about thsi change in weather ~ Fristly we getthe first real winter for some years and now it has not stopped chucking down rain for the past week ~

I spent best part of my ten days off sorting a carb issue with the Trident and only managed to get a few klicks !

Then it started raining the next day after finally getting the Trident firing on all three ~ So have not been able to even get some serious riding in ~ let alone front up at the Classic Sunday ride ~

Yesterday I actually thought about breaking out the water proofs ~

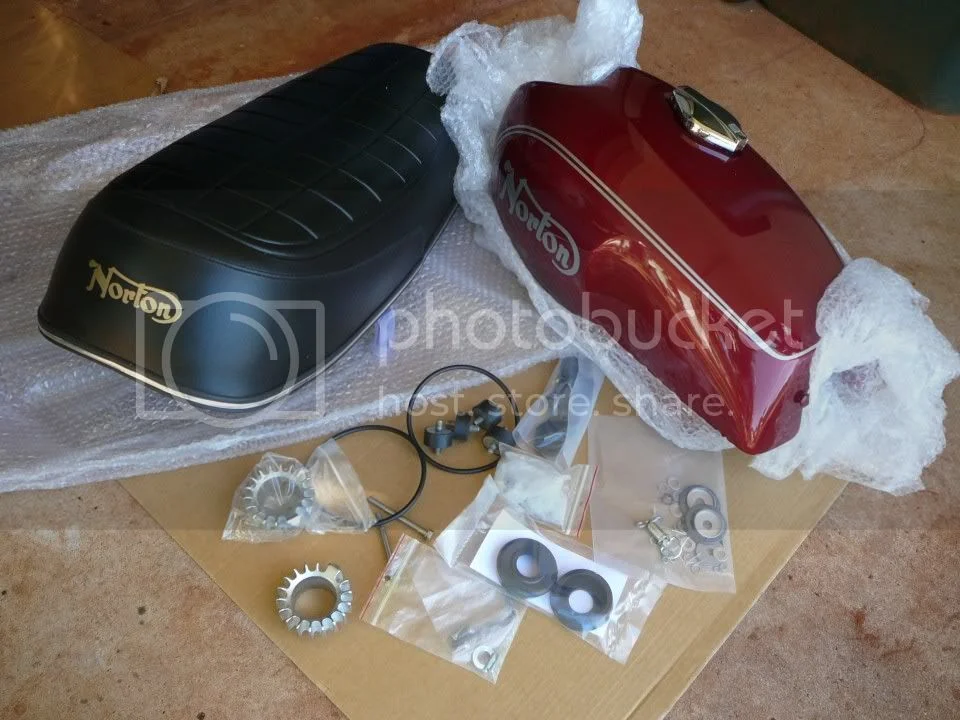

Slowly getting the new parts together for the Commando face lift ~

New Wassell seat , zorst roses and misc ~ plus ordered more bling SS parts ~ no resolve yet on the LH side panel ~
