Cleaning Engine Cases

Joined
Aug 21, 2016
Messages
537
Country flag

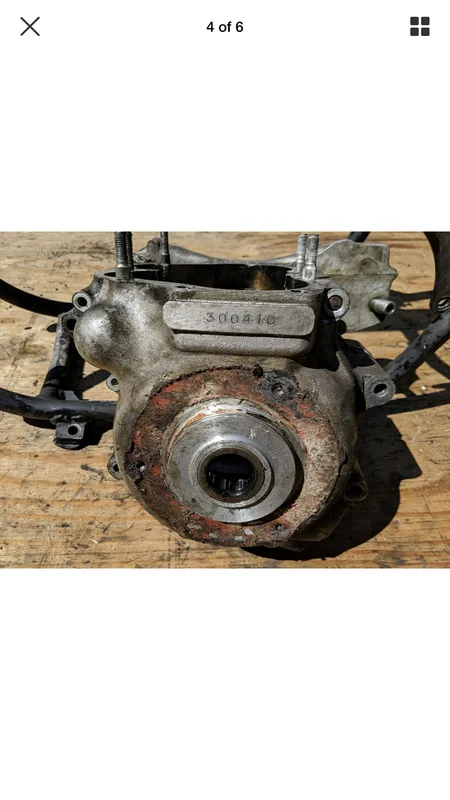

I’m getting a pretty gritty set of engine cases.

Does anyone have any suggestions as to how to clean them so they look like new (well better than they are now anyway)?

Open to ideas.




MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,225
Country flag

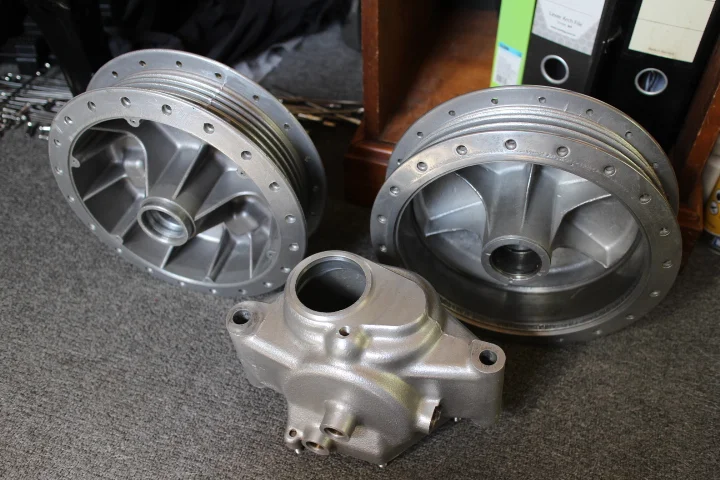

Vapor Blast. Will look better than new.

I can first hand, highly recommend this outfit.
https://partsreborn.com/
Motorcycle rider people tending to motorcycle people.


comnoz

VIP MEMBER
Joined
Dec 10, 2008
Messages
7,193
Country flag
Vapor or low pressure glass bead. I would not recommend a siphon type glass bead machine.

Do not blast the inside of the cases as any abrasive will end up in the pores where it will stay -until it's in use.


Time Warp

.......back to the 70's.
VIP MEMBER
Joined
Dec 3, 2012
Messages
1,996
Country flag

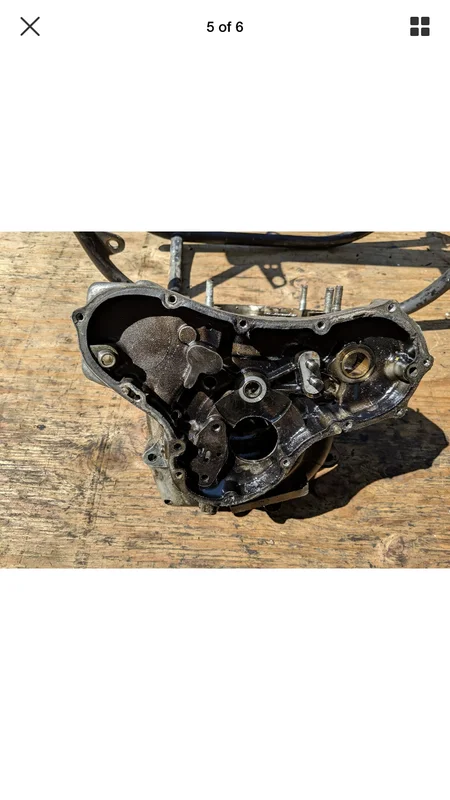

Before you do anything (and it is surprising what Duragloss 851 and a hand brass bristle wooden handle wire brush can do) check those cases over closely including why the cam shaft pinion shaft is missing (hopefully not due to a flogged bore)


Joined
May 7, 2005
Messages
4,052
Country flag
Ultrasonic bath with oxalic acid solution, attacks the aluminium oxide and rust on steel to give you close to vapour blasted cases without the risk of grit hiding in crevices. Phosphoric acid works too but leave it in too long and you get aluminium phosphate on the aluminium as a dark smut which then needs removing.


Tornado

VIP MEMBER
Joined
Dec 5, 2017
Messages
2,013
Country flag
Anyone using soda blasting? I hear that is preferred for engines as any residual particulates will dissolve in the post blast washing water.


Richard Tool

VIP MEMBER
Joined
Aug 3, 2019
Messages
388
Country flag
Anyone using soda blasting? I hear that is preferred for engines as any residual particulates will dissolve in the post blast washing water.
I used soda blast on my crankcases, cylinder head and gearbox shell - does not do as good a job as vapor blast but I was able to do it myself - be aware that that some sodium bicarbonate blast media has added aggressive abrasives - you DO NOT want this for your aluminum components .


rvich

VIP MEMBER
Joined
Jul 25, 2009
Messages
3,124
Country flag
My homemade parts washer is a large plastic tub and a sump pump with a hose attached. Circulate a dilute solution of the cleaner of choice. Some (like the Purple stuff) are not intended for use on aluminum because it will dull the surface. You decide based on your own bias. Simple Green works. Pinesol is a great one for cutting heavy grime, and it smells nice too, but its hard on your hands.

Joined
Aug 21, 2016
Messages
537
Country flag
Before you do anything (and it is surprising what Duragloss 851 and a hand brass bristle wooden handle wire brush can do) check those cases over closely including why the cam shaft pinion shaft is missing (hopefully not due to a flogged bore)

View attachment 13454
Now I’m very concerned.

Are pinion shafts repairable?


Scout63

VIP MEMBER
Joined
Nov 24, 2016
Messages
424
Country flag
+1 vapor blasting. I cleaned off grease and oil with petrol and a brush first.

Joined
Dec 1, 2018
Messages
101
Country flag
Hot tank or judicious and cranny-cleaning brushes, then for certain vapor blasting. The BMW guys swear by vapor blasting nowadays and you know how THEY are about their engine cases...


rvich

VIP MEMBER
Joined
Jul 25, 2009
Messages
3,124
Country flag
Now I’m very concerned.

Are pinion shafts repairable?
Yes. They can be repaired. There are a lot of bikes out there with loose pinion shafts that rely on the timing cover to keep them in place. It isn't perfect, but its the reality. The biggest problem with the shaft being loose is that it makes it very hard to adjust the chain properly. So with that said, the fix is to make or buy a tool to hold the pinion shaft while you work on torquing and adjusting. Not only does this help prevent damage to the pinion shaft it also holds the thing in place so that you can get an accurate adjustment.

If mine were loose enough to cause concern, I'd probably clean it all up, put some JB Weld on it and put on the timing cover until the JB Weld hardened. Making sure of course that I didn't glue my cover on. Others might recommend having it sleeved.

Joined
Aug 21, 2016
Messages
537
Country flag
Yes. They can be repaired. There are a lot of bikes out there with loose pinion shafts that rely on the timing cover to keep them in place. It isn't perfect, but its the reality. The biggest problem with the shaft being loose is that it makes it very hard to adjust the chain properly. So with that said, the fix is to make or buy a tool to hold the pinion shaft while you work on torquing and adjusting. Not only does this help prevent damage to the pinion shaft it also holds the thing in place so that you can get an accurate adjustment.

If mine were loose enough to cause concern, I'd probably clean it all up, put some JB Weld on it and put on the timing cover until the JB Weld hardened. Making sure of course that I didn't glue my cover on. Others might recommend having it sleeved.
Great, thanks

Joined
Aug 21, 2016
Messages
537
Country flag
I’ve Googled “vapor blasting near me” and I can’t find anyone around me that does this. I may need to send them out somewhere.


MichaelB

"Sons of Arthritus"
VIP MEMBER
Joined
Jan 14, 2004
Messages
1,225
Country flag
An option on the cases are to scrub them up real good and paint them.
Norton painted them originally.
Focus on detailing the Head and barrel.
