Capacitor fixing point 1969 S

Discussion in 'Norton Commando Motorcycles (Classic)' started by fireflake, May 15, 2018.

  1. fireflake

    fireflake

    Joined:
    Apr 21, 2015
    I've seen the images posted here regarding the capacitor location but I can't see anywhere to attach the mounting coil, can someone please post a photo, thanks
    David

    Tags:
  2. DogT

    DogT VIP MEMBER

    Joined:
    Jan 20, 2009

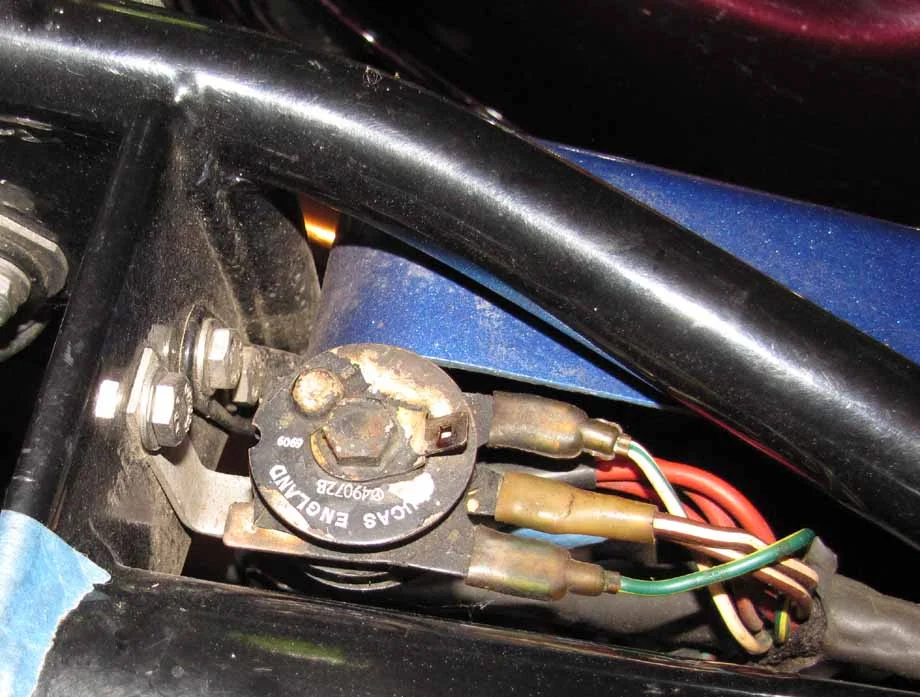

    The capacator mounting coil mounts under the bottom bolt of the rectifier on the L bracket off the frame web.

  3. fireflake

    fireflake

    Joined:
    Apr 21, 2015
    Thanks Dave, did you have to bend the mounting coil to make it fit, David

  4. DogT

    DogT VIP MEMBER

    Joined:
    Jan 20, 2009
    No, mine came that way, I can get a better pic of the bracket.

  5. fireflake

    fireflake

    Joined:
    Apr 21, 2015
    That would be very helpful Dave. New coil mountings have the fixing loop hole in the vertical position David

  6. PeterJoe

    PeterJoe

    Joined:
    Dec 8, 2011
    The horizontal capacitor mounting spring is Lucas part number LU54483155. If you do a computer internet search you will find various places that sell them. I hope this is of some help.

    Peter Joe

  7. DogT

    DogT VIP MEMBER

    Joined:
    Jan 20, 2009

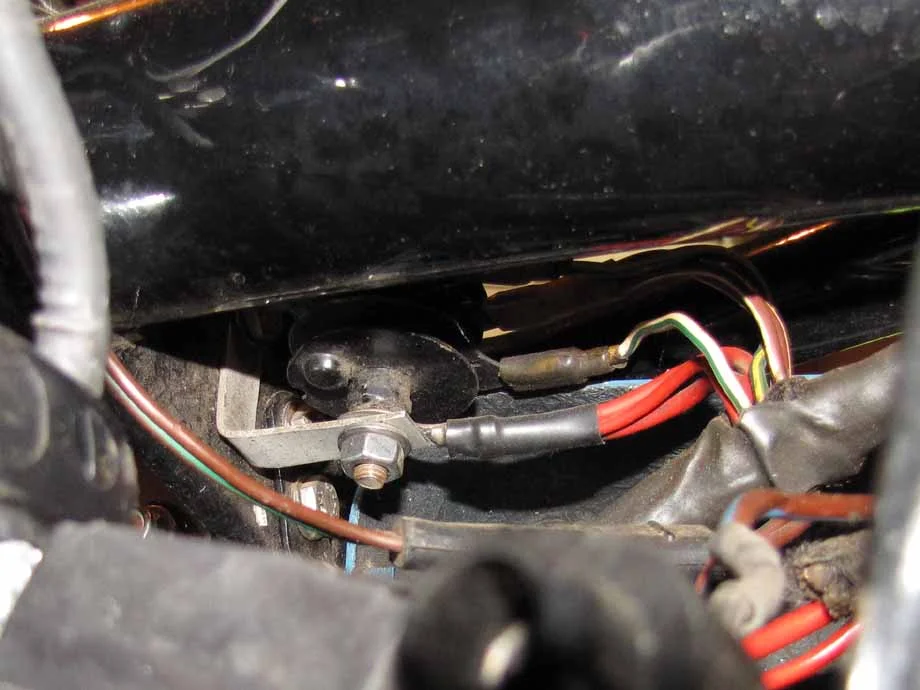

    Here's the bracket, but I've taken off the spring because I'm not using the Capacitor any more.

  8. fireflake

    fireflake

    Joined:
    Apr 21, 2015
    Many thanks for all your help, wonderful David

  9. rivera

    rivera

    Joined:
    Dec 13, 2014

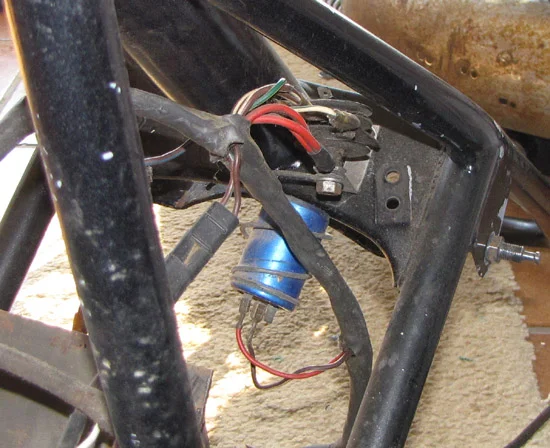

    David, here is a pic of the whole assembly. I did not mount it because I use an electronic rectifier/ regulator.
    [​IMG]

    [​IMG]
    [​IMG]
