Cable Linkage Adaptor Plate

Discussion in 'Norton Commando Motorcycles (Classic)' started by Lineslinger, Jan 25, 2019.

  1. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    Some background:

    I reached out in a previous thread I started on custom cable kits seeking an improved/better/make me quit bitching about the synchronization of the twin Amals on my bike.

    I had already installed a new cable setup with new junction "boxes" during restoration and was still getting frustrated in dealing with the carbs matching/synchronizing.
    I could get them very close but it seemed tweaking was always a mandate. I pulled the head for an overhaul (that's one for another thread) and with the carbs off decided to try to fix the sync issue I was having.

    Cliffa reached out in the "Cable Kit" thread and turned me on to an offering from Madass.

    After reviewing some photos I decided to make the purchase and emailed Mr. Pendor.
    He was very helpful with info and shipping was fast. I spaced out on the time difference from across the pond and emailed him at 3AM his time and he still responded within a few minutes.

    The kit he has developed is very well thought out IMHO. The application and adjustments allow for very finite adjustments without any "dainty" issues, very solid

    No, Mr. Pendor did not comp me or pay me to plug his piece. I found it to be a viable improvement and well made, thus sharing here.

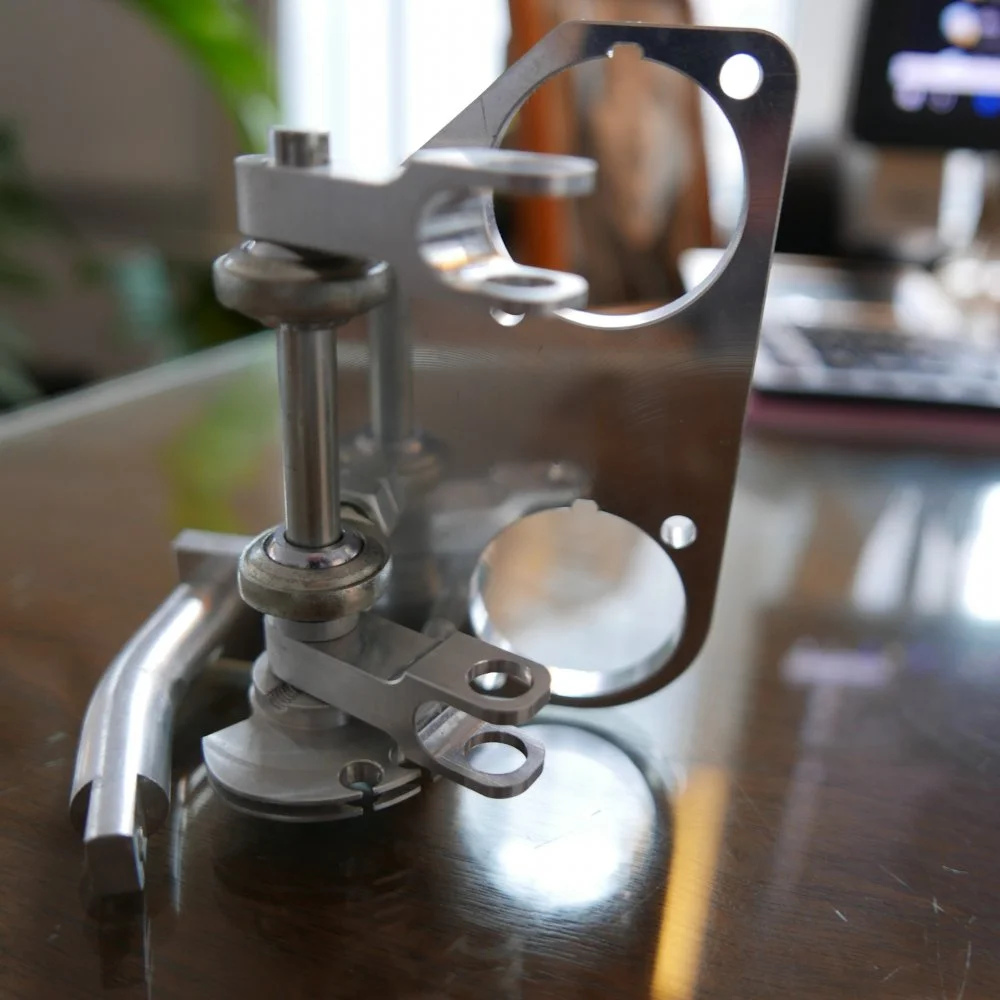

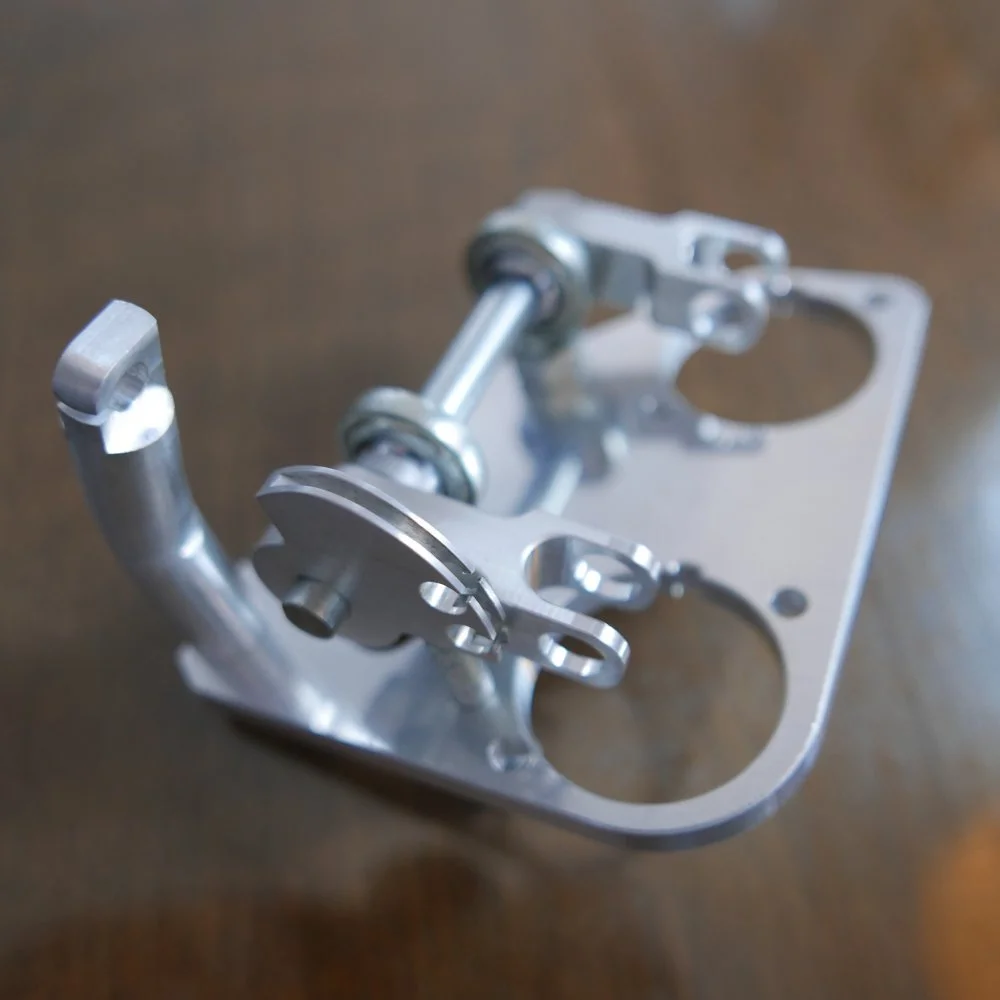

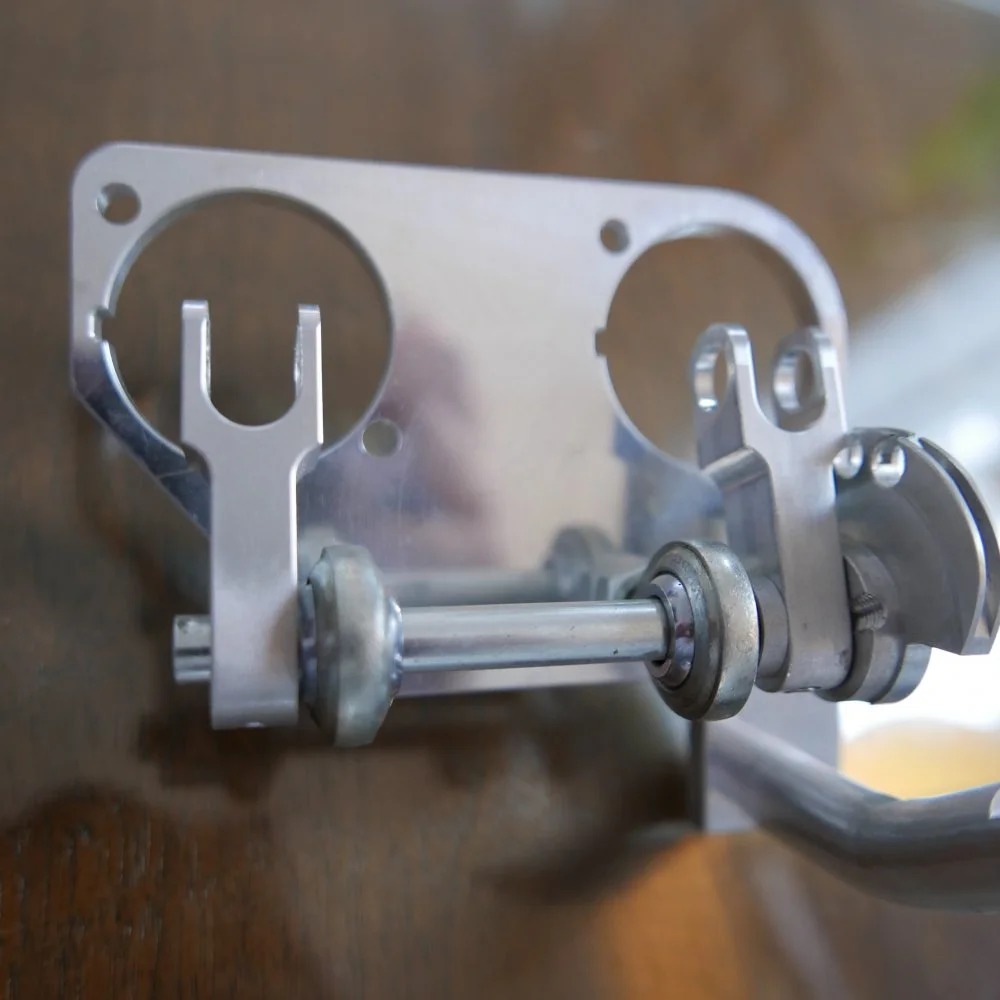

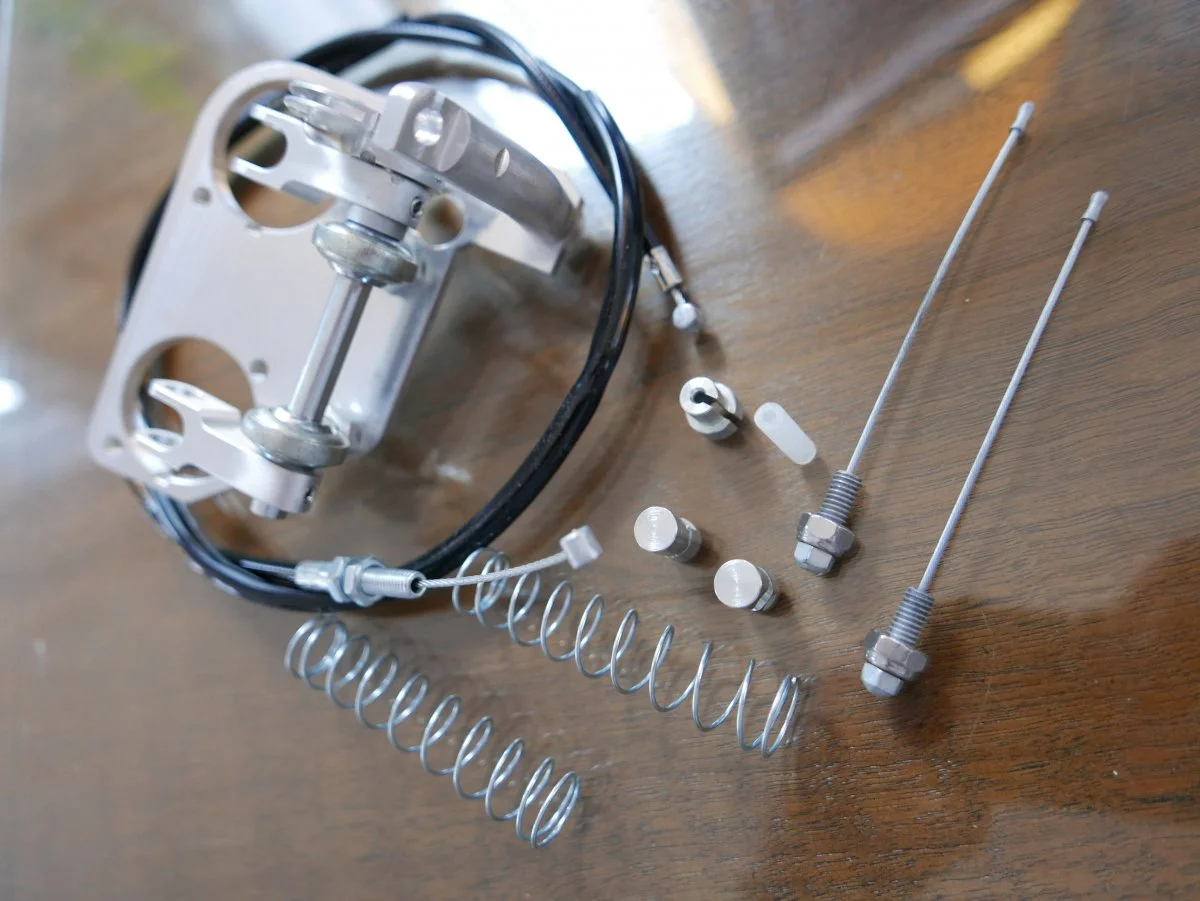

    Maddas140 single throttle cable linkage
    Don Pender: madass140@gmail.com

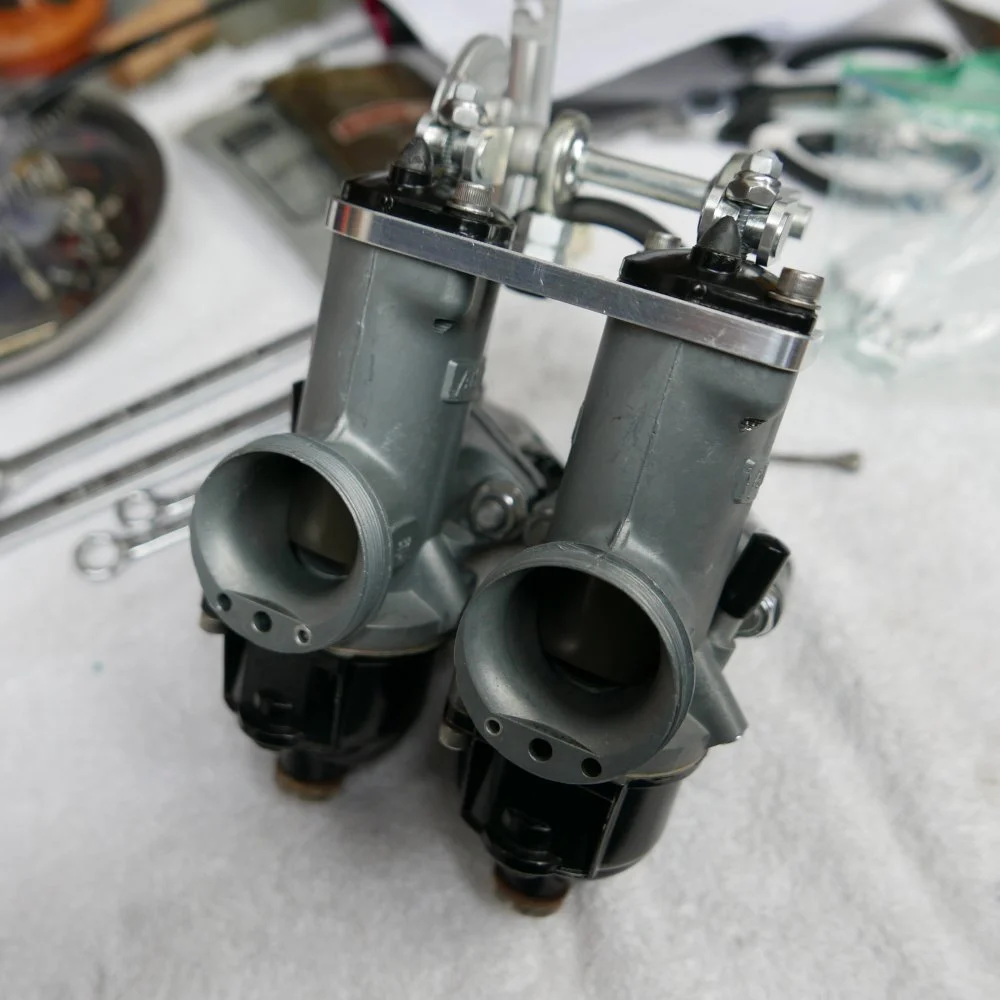

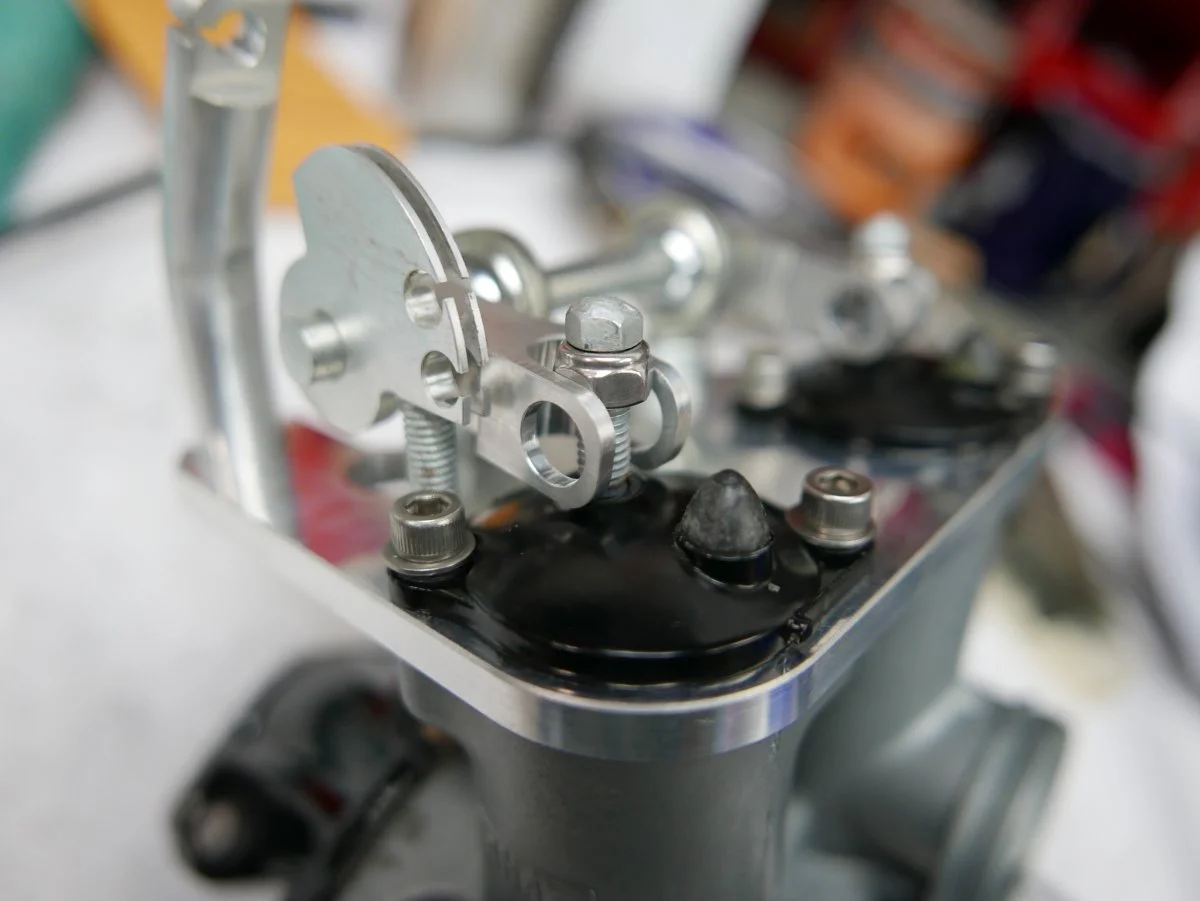

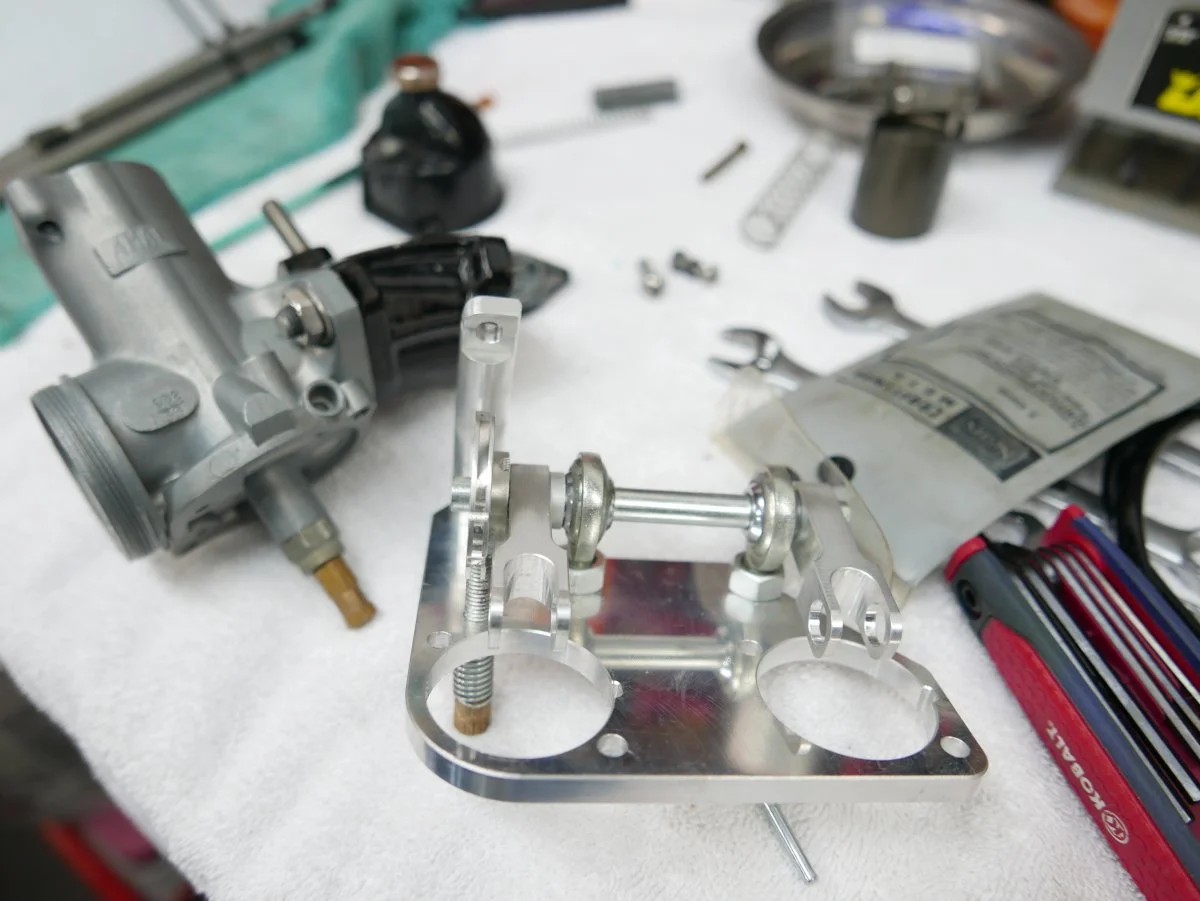

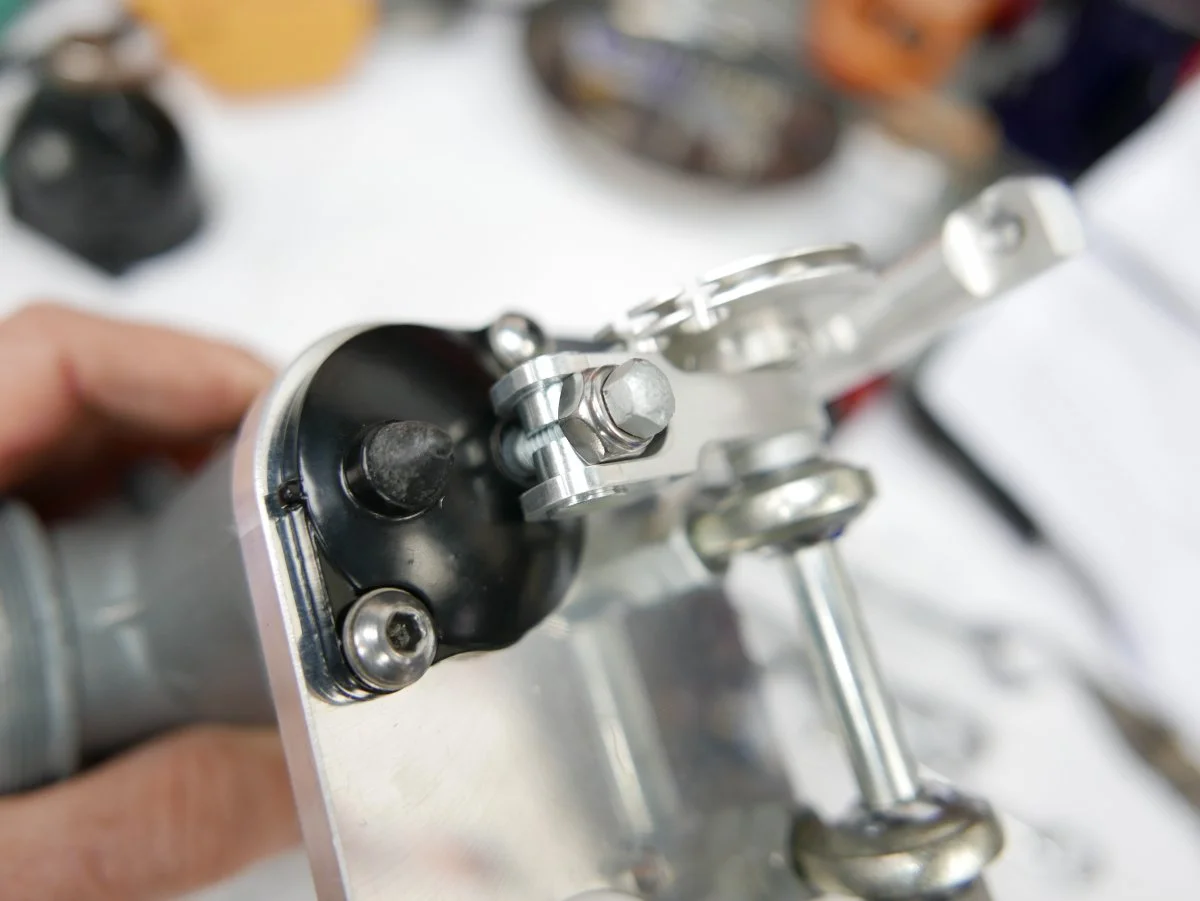

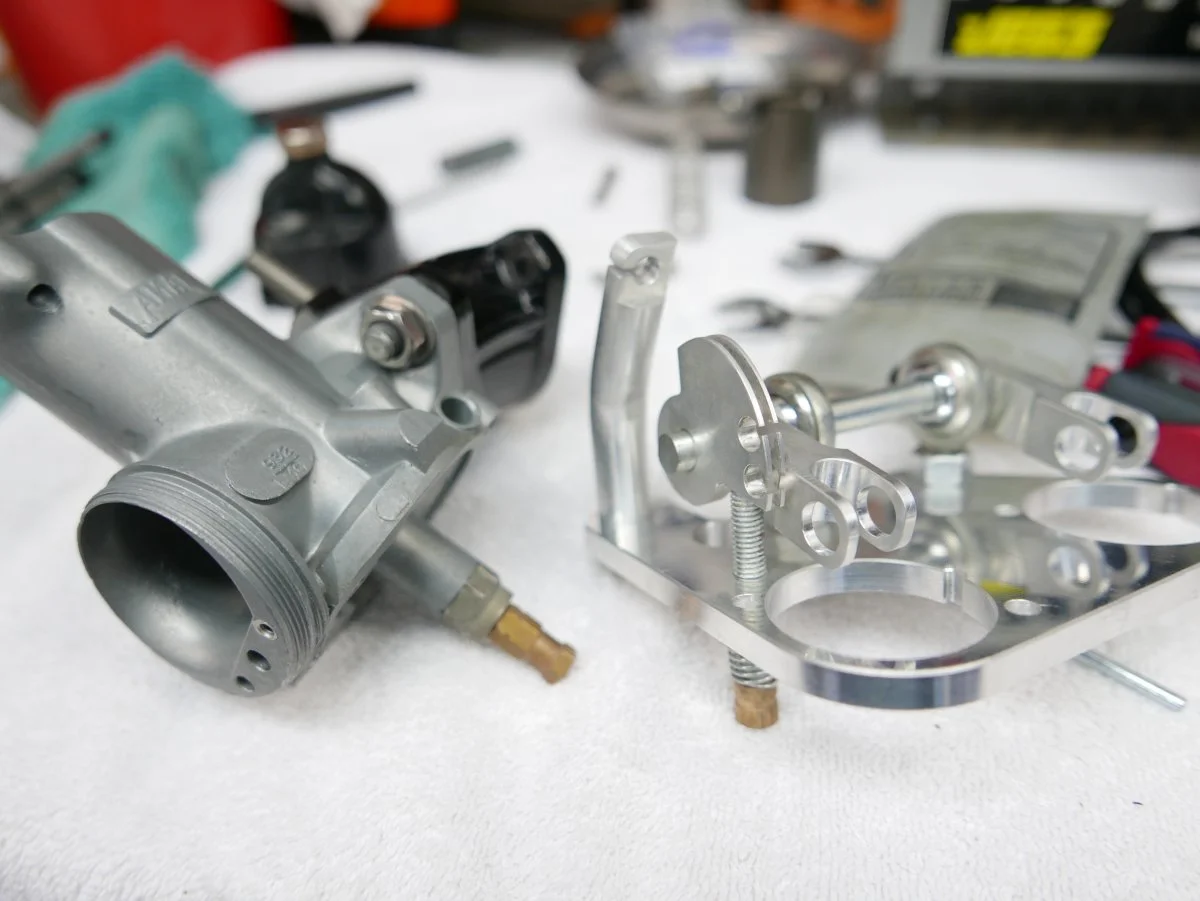

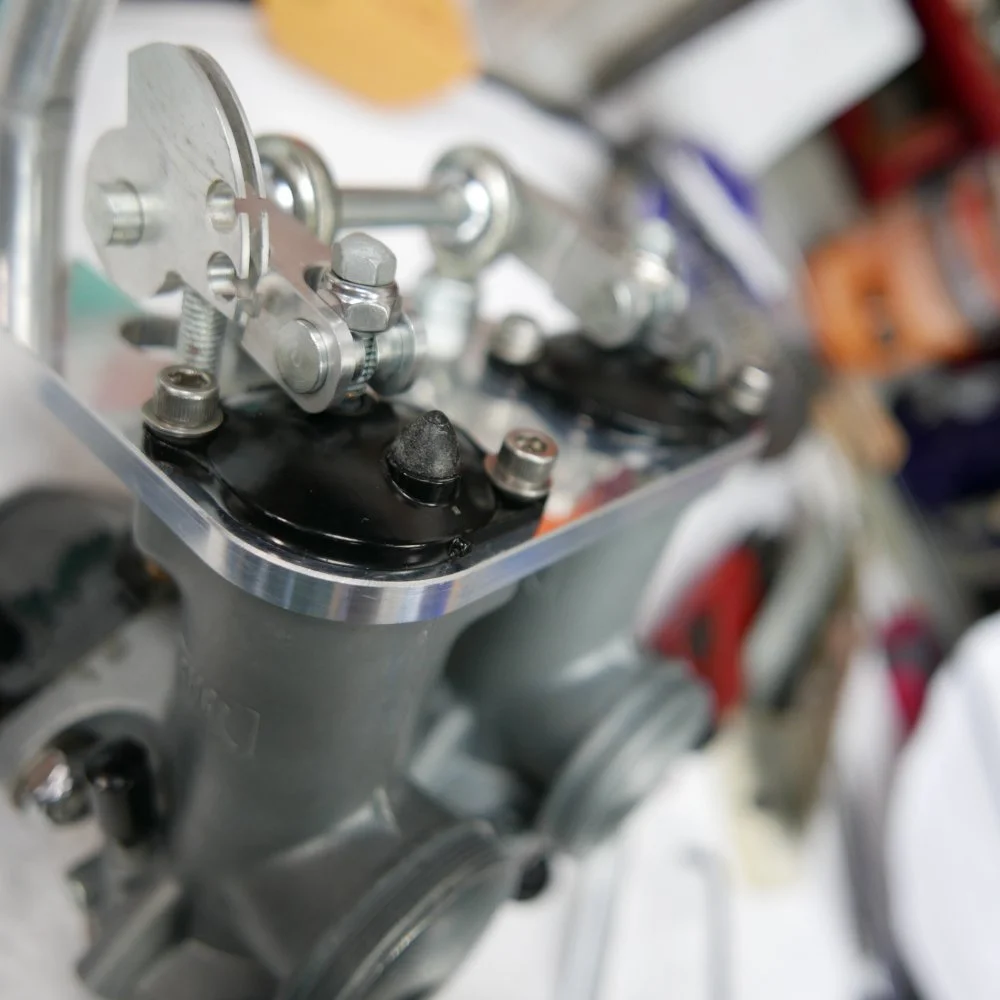

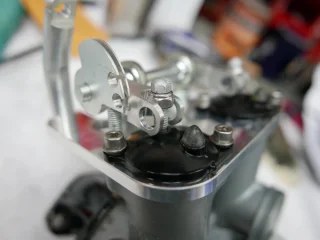

    I thought it might be of interest to some to see photos of the adapter plate mating up with the carbs. I have yet mount it on the engine and will follow up with more when I do.


    Attached Files:

    Last edited: Jan 27, 2019
    Fullauto likes this.
  2. cliffa

    cliffa

    Joined:
    May 26, 2013
    Lineslinger,
    Like you I have no affiliation to Don, but just know quality kit when I see it. - Hence the recommendation. Us Nortoneers are incredibly fortunate that we have so many great suppliers. They should be applauded and supported.


    Cheers,

    cliffa.

    Last edited: Jan 25, 2019
    Kvinnhering likes this.
  3. cyclegeezer

    cyclegeezer

    Joined:
    Jul 15, 2010
    Thanks for those photos, it really shows the details of the adapter. It's on my short list of things to do to my Commando. I've already got his one piece rear axle and Lansdowne dampers and those are both fine products.

  4. Time Warp

    Time Warp .......back to the 70's. VIP MEMBER

    Joined:
    Dec 3, 2012
    OK you sold me on it...... Shipping Monday I am told.:)

  5. cliffa

    cliffa

    Joined:
    May 26, 2013
    You won’t be sorry Time Warp. One tip, if you are still relying on chokes to start up, you may want to consider removing the locknuts from the choke cable adjusters to partly compensate for the increased height of the top caps.

    Cheers,

    cliffa.

  6. blaisestation

    blaisestation

    Joined:
    Apr 10, 2008
    I had to shorten the outers on my choke cables to get them functional using the gantry.

  7. madass140

    madass140 VIP MEMBER

    Joined:
    Nov 6, 2011
    I've always discarded the chokes as I've never needed them and always figured they were more trouble tan they are worth.
    So maybe I didnt pay enough attention to the choke operation in the design.

  8. Onder

    Onder

    Joined:
    May 11, 2010
    ...warm climate....

    madass140 likes this.
  9. blaisestation

    blaisestation

    Joined:
    Apr 10, 2008
    Don,
    It´s no big problem to shorten the cable outers ,and you made it clear in your description and instructions that it was designed for use with no chokes.
    Happy camper this end !

  10. Lineslinger

    Lineslinger VIP MEMBER

    Joined:
    Feb 26, 2017
    I spent two winters in college on a bike, no car, I’m done riding in the 16 degree cold.
    I never had any call for using the chokes and can always reinstall them if I ever ride in the cold again....which is not going to happen.

    MichaelB likes this.
  11. cliffa

    cliffa

    Joined:
    May 26, 2013
    One more tip if you have the carbs off....

    It is possible to remove the unused tickler casting on the inside of both carbs ( they are solid) . It makes it much easier to get a socket on the inner manifold nuts. I used a cold chisel ( well actually it was a wood chisel, but it was cold) taking off perhaps half a millimeter at a time until it was level with the unused idle adjuster casting.



    Cheers,

    cliffa.

    Gadge and Esmerela like this.
  12. madass140

    madass140 VIP MEMBER

    Joined:
    Nov 6, 2011
    and you had the JBWeld on hand just in case.......

    cliffa likes this.
  13. cliffa

    cliffa

    Joined:
    May 26, 2013
    Always ;)
