Box Spanner for Drive Sprocket

Status
Not open for further replies.

marshg246

VIP MEMBER
Joined
Jul 12, 2015
Messages
4,003
Country flag
This has been talked about a few times but I found a really inexpensive solution. While searching the Internet for an offset wrench or 1-1/2" socket deep enough to remove the drive sprocket, I came across a listing on Amazon for a "Screw-In Element Wrench". It is for removing/replacing electric hot water heater elements and sells for $4.65.

It's a slightly loose fit, but works fine. I bet it can be found in US hardware stores as well, but I haven't looked.

O.K. but I took the big nut to a welder and he cut deep reach steel plate pieces together around the nut. Then he welded an arm to it. $10. Happy. Tight fit.

O.K. but I took the big nut to a welder and he cut deep reach steel plate pieces together around the nut. Then he welded an arm to it. $10. Happy. Tight fit.

You have a welder that will work for ten bucks? Around here you can't get one to answer the phone for that.

I have an element wrench and it gets used for this!

I went with the socket. Sockets can be found on ebay for reasonable sums. Useful if something gets stubborn and you
can resort to the rattle gun.

Box Spanner for Drive Sprocket

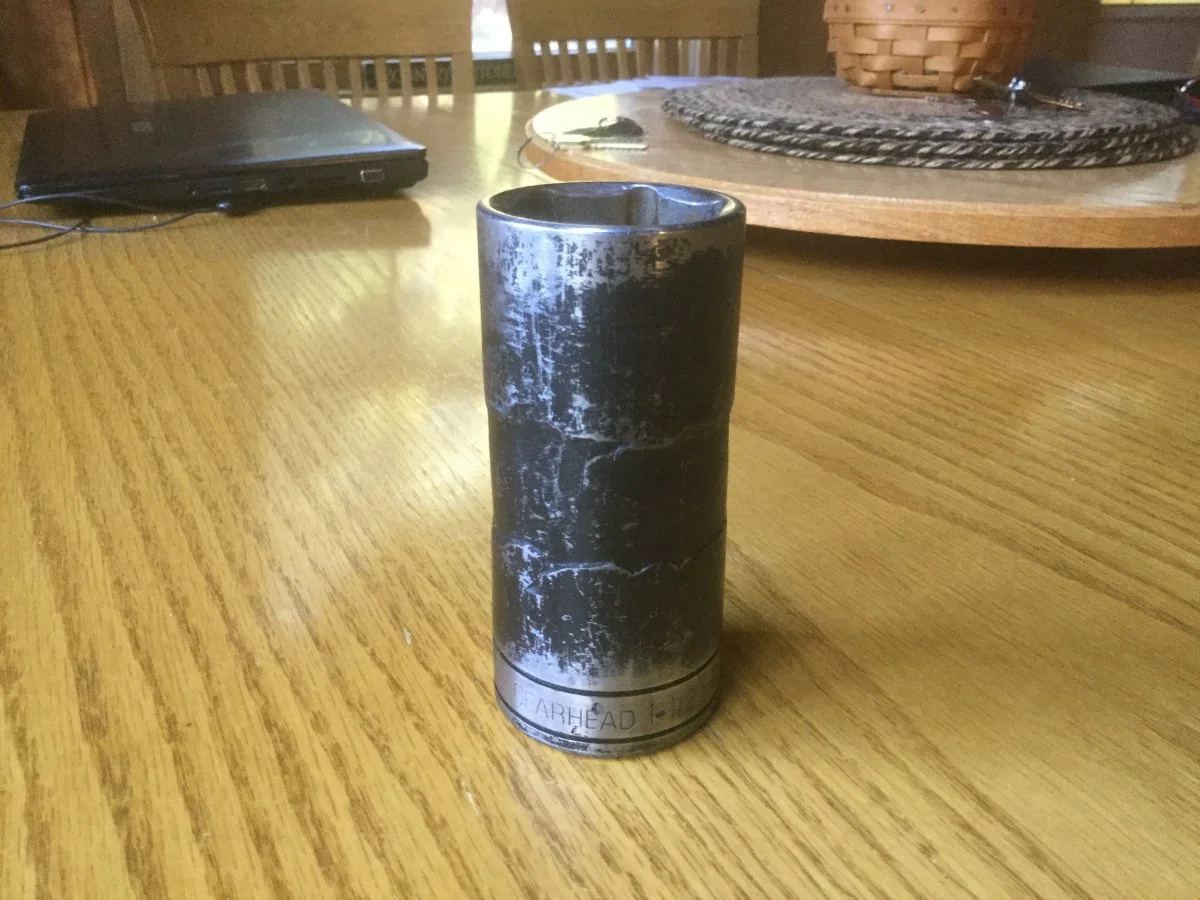

I cut a deep socket In half and welded a piece of black pipe in between the two pieces

Most auto supply stores have a double-box wrench for installing and removing trailer hitch balls. About $10

"The correct tool"

In my ( limited) experience I found it very difficult to get a box/combo wrench on the gear box sprocket with the engine and gearbox installed, and impossible to use with a torque wrench if so inclined. I might be missing something seeing how this is the only Norton I have worked on but I think a deep socket is the way to go. Just MHO
$7.00 @ Pep Boys and I had everything else at home.
Pete
