MikeG

VIP MEMBER
Joined
May 31, 2012
Messages
1,308
Country flag
Been looking at the pros and cons of mounting an Interstate tank and seat on my 71 Roadster. Lower bars are on the list, but am wondering about rear sets as well. Even in Roadster trim I find the pegs a bit too far forward for me if I spend more than a few hours on it and I'm reading that with the Interstate seat the problem will be that much worse. I'm looking for a set that will move my feet to a point of almost inline with my hips when seated. Is this about normal for whats readily available or are most set farther back for sportier riding? Anybody got pictures they can post?
Thanks

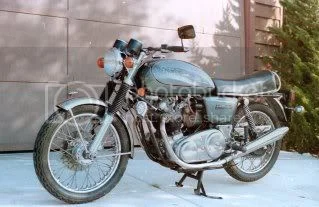

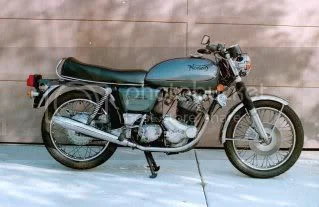

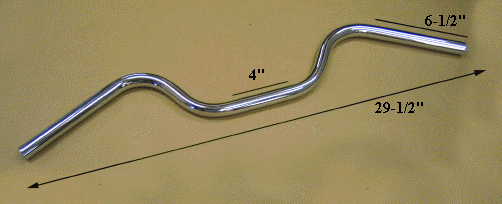

Interstate set up on my '73 750 (sold this in 1986). BMW R90S bars and the standard rearsets of the day. The pattern is still available from the many Norton parts sources.

Another rear set thread...

Another rear set thread...

There are various suppliers of rear sets that bolt onto the stock footrest mounting. Mine in the pics below are from Norvil Motorcycles.

I've spent a bleedin' fortune trying to save money on rearsets! I've tried all sorts of half bodged 'improvements'. I have now finally done what I should have probably done in the first place... Ordered a set from Matt @ CNW...!

Another rear set thread...


Another rear set thread...

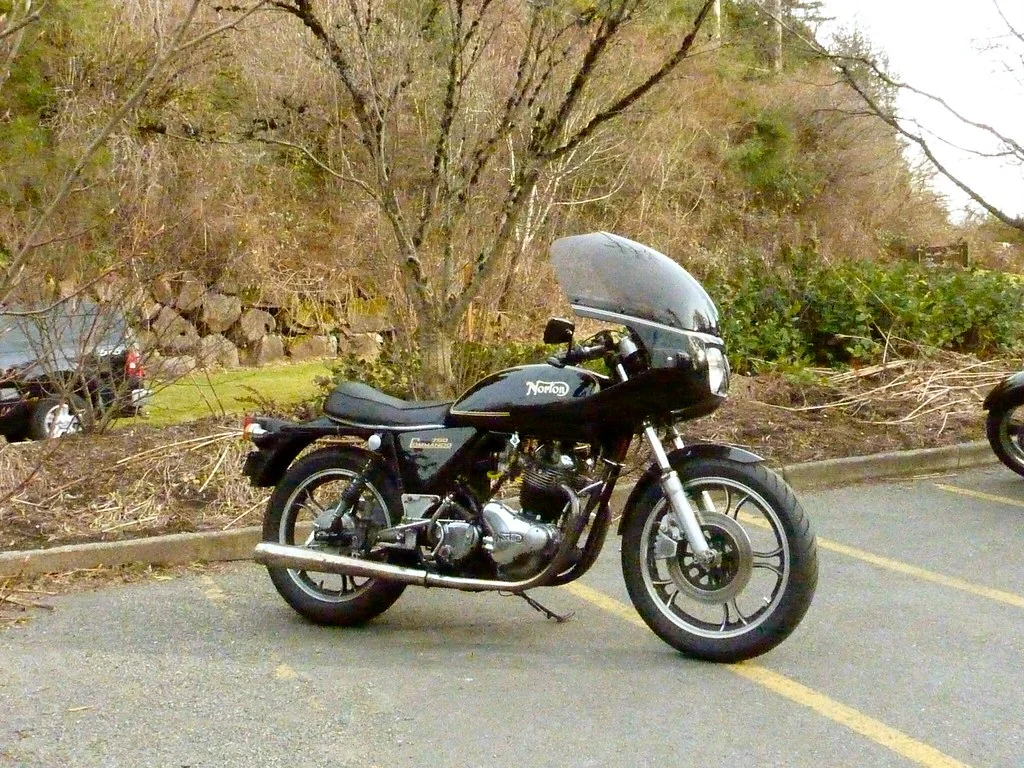

I recently changed a few different things on my commando.

1)I ordered an unpainted interstate tank from Ebay (india) which worked out fine for me, but it was not perfect. The filler neck's cap mounting hole which uses a roll pin was sloppy as hell. I drilled it, and the cap, out to the next size diameter pin and got it all worked out to my satisfaction.

2)I had my own oddessy painting the tank that I eventually got right. It was my fault because I was using paint which I was unfamiliar with.

3) the interstate tank did NOT have enough clearance with the early commando yokes (27 degree kind) which have less offset. I had to elongate the front bracket mounting holes to move the tank backward away from the yokes. I also modified the stops by adding additional metal stops to the fairing bracket I mounted on the bike to hold the fairing. The early commando yokes with less offset foul the interstate tank. That yoke can be identified because it has no bottom nut so it's smooth on the bottom side of the yoke, if you can't tell by the steeper head angle or less fork offset.

4)I mounted the clubman rear sets. they work OK. They took some getting used to, but I'm good with them now. I'm 6'2", so I wish they were mounted lower, but it doesn't kill me at all to ride in that position.

5) I have nearly flat, narrow bars. they are 24" wide and have a tiny rise to them. I like them. Mostly I don't have a garage, so I need extra narrow bars to get the bike into and out of the house... Not everyone has that problem, but I do.


You can definatly see that the back of the tank is really tight against the side covers and the low bars would foul the tank if I hadn't welded stops on the fairing bracket. I'm sure certain configurations work easily and other's don't.... As usual, I had every parts conflict permutation possible, but eventually I got it where it's "OK" for now....

Another rear set thread...

A flat bar will not work with the Interstate tank/seat.

I have rear sets I have been using with Interstate tank and UK bars (2.5" rise) since the 90s. Also used that setup with a hi rider tank. It works for me very well (I am 6'1") and I wont go back to the standard pegs.

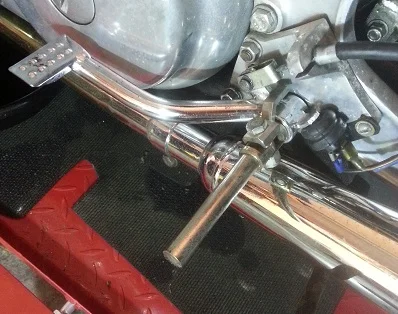

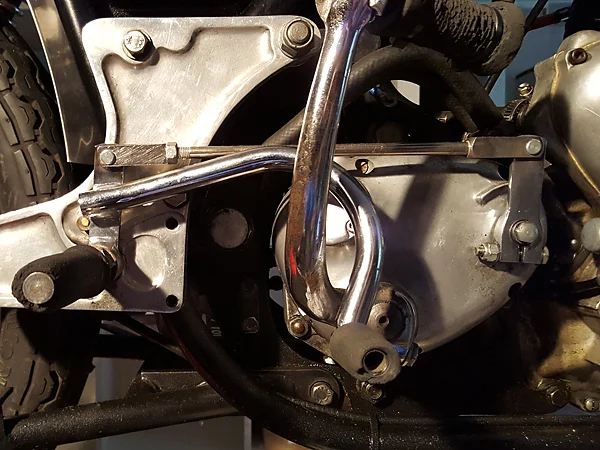

These pics show where they mount in the z-plate's rear footpeg mount hole.


Attachments

  • Another rear set thread...
    59.9 KB · Views: 560
  • Another rear set thread...
    clean pipe.webp
    33.6 KB · Views: 581
I drilled and threaded the fork stops and screwed in bolts to decrease the fork swing arc. Bolts are removed in the photo.
Needed when using clip-on bars.
Made moving the bike around in the garage more difficult due to the restricted turning.
Another rear set thread...

I have a manx 5 gallon tank with Madass's dunstall repro rear sets. The rearsets will help with the hamstring cramps, but the extra length of the tank may cause other problems depending on your seat/handlebar combo. Simply put, the longer tank push you farther back, and you need the right set of bars to accommodate. I've recently installed Tarozzi 3" rise clip ons and find they do a good job of putting the bars just where they need to be. Prior to that, no set of riser mounted bars I tried even came close (condors, M bars, euro etc...) The Tarrozi's are the same height as M's when choked all the way up, and by rotating them around the axis of the stanchion you can dial them in unlike anything else.

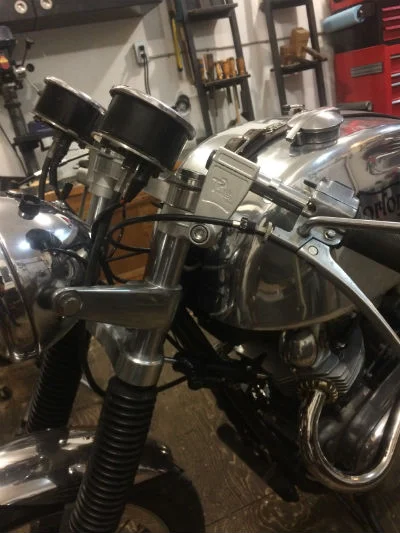

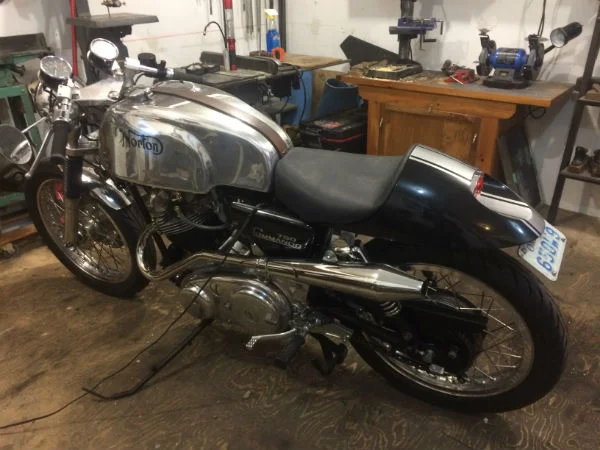

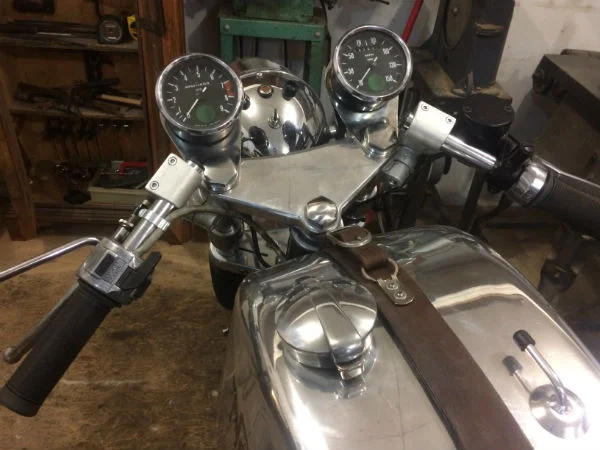

edit, here are pics of the rear sets, bars and seat...

Another rear set thread...

Another rear set thread...

Another rear set thread...

Another rear set thread...

gortnipper said:
A flat bar will not work with the Interstate tank/seat.

Really? My OEM Steel Interstate Tank (6 US gallons) worked quite well with my flat M-bars.

Anglophile said:
gortnipper said:
A flat bar will not work with the Interstate tank/seat.

Really? My OEM Steel Interstate Tank (6 US gallons) worked quite well with my flat M-bars.

Hyde M bars are different from flat or drag bars.

Another rear set thread...


Flanders drag bar didnt work with the tank pushed back as far as possible. 18 degree bend, 4″ pull back, 9″ straight center section and 31″ wide
