Amal Gasket Question

Status
Not open for further replies.
Joined
Apr 28, 2008
Messages
191
Country flag
Took off my Amal's to clean out the pilot jet (and one was indeed pretty clogged up).

In addition to the O-Ring, there was a gasket between the carb and the spacer/manifold connected to the head. Is that supposed to be there? My parts diagram shows just the O-ring.

Also any tips for extending the ticklers a bit? I pulled on them, but didn't seem to provide any extension.

Thanks!

- HJ


DogT

VIP MEMBER
Joined
Jan 20, 2009
Messages
7,446
Country flag
My carb only has the o-ring between the carb and the manifold. No washer. There is the thick heat washer between the manifold and the head.

Dave
69S

Joined
Apr 28, 2008
Messages
191
Country flag
swooshdave said:
Do you not have the extended ticklers? Available from Amal or most dealers

I *think* so. Hard for me to know as I'm not sure what the non-extended ticklers look like. In any case, they have a flared roll pin on the bottom (bowl side) and a big old button on the top side.

Cheers,

- HJ

Joined
Apr 15, 2009
Messages
11,415
Country flag
Hungry J0e said:
swooshdave said:
Do you not have the extended ticklers? Available from Amal or most dealers

I *think* so. Hard for me to know as I'm not sure what the non-extended ticklers look like. In any case, they have a flared roll pin on the bottom (bowl side) and a big old button on the top side.

Cheers,

- HJ

Well the old buttons could not be consider "big" so I guess you're covered.


L.A.B.

Moderator
VIP MEMBER
Joined
Nov 20, 2004
Messages
18,489
Country flag
Hungry J0e said:
In addition to the O-Ring, there was a gasket between the carb and the spacer/manifold connected to the head. Is that supposed to be there? My parts diagram shows just the O-ring.

The extra gasket/s won't do any harm.

Hungry J0e said:
Also any tips for extending the ticklers a bit? I pulled on them, but didn't seem to provide any extension.

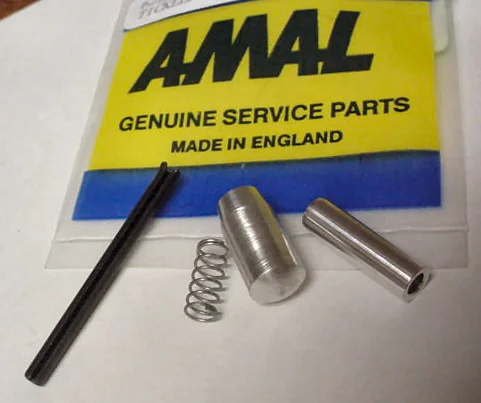

The extended tickler assembly:
Amal Gasket Question

If both button and pin are held (with two pairs of pliers?) and twisted, it should be possible to extend the pin?

Adjust it to give roughly 5/16" of ticker button movement.

Joined
Apr 15, 2009
Messages
11,415
Country flag
Hungry J0e said:
Also any tips for extending the ticklers a bit? I pulled on them, but didn't seem to provide any extension.

- HJ

Ok, back to the original question, why do you want to extend the ticklers?

Joined
Apr 28, 2008
Messages
191
Country flag
swooshdave said:
Ok, back to the original question, why do you want to extend the ticklers?

Fiddling with the float level... won't tickle where I want it set to...

Joined
Apr 28, 2008
Messages
191
Country flag
swooshdave said:
Float level is not set with the ticklers.

Right, but lowered the float level a bit and it would no longer tickle...

My bike is very finicky about the float level. A tad high and leaks from the float gasket. Tad low and it won't tickle.


gjr

Joined
Mar 5, 2010
Messages
461
Country flag
If your carbs are leaking from the bowl gaskets, the float bowls might be warped. Check across the mounting screw lugs with a straight edge.

Greg

Joined
May 7, 2005
Messages
6,105
Country flag
My bike is very finicky about the float level. A tad high and leaks from the float gasket. Tad low and it won't tickle.

You can extend the reach of the tickler by screwing a self tapper into the bottom end, adjust by screwing in or out. First set the float level as per the Amal website and then adjust the tickler to suit the new float level.


batrider

VIP MEMBER
Joined
Aug 9, 2008
Messages
2,293
Country flag
Main reason for going to the pushbutton ticklers is that you don't get fuel on your finger.

Joined
Jun 28, 2009
Messages
1,823
Country flag
batrider said:
Main reason for going to the pushbutton ticklers is that you don't get fuel on your finger.

Yes - and you don't get water in the float chambers either.

It does sound like adjusting the float levels isn't necessarily fixing the root cause of the problem....I'd also be looking at warped float chambers as they're famous for it ;)

Joined
Apr 28, 2008
Messages
191
Country flag
I'll lap the tops of the bowls... have to pull them anyways as the left cylinder is no longer firing. Perhaps I introduced an air leak on reassembly and is now too lean? Good spark, didn't touch ignition at all, only pulled and cleaned the carbs...

Good news is the right cylinder starts easily on one kick. Even idles like a dream on one cylinder...

Cheers,

HJ

Joined
Jan 31, 2010
Messages
2,926
Country flag
When you lap the bowl seating area flat and then place it on the body, you will probably find that the body seating surface is also warped - that needs to be trued also. You can do it with a fine file. While you are doing this, lap all the other carb/manifold surfaces as well, including the manifold surface where it joins the head. It will make a big improvement in the operation of the carb. Do not tighten any of the screws beyond "snug" and for the joint between the manifold and carb - with the Oring - just tighten the bolts to the point where the two metal surfaces meet, no more.
