Air Filter Caught Fire

Discussion in 'Norton Commando Motorcycles (Classic)' started by Tornado, Apr 19, 2019.

  1. Tornado

    Tornado VIP MEMBER

    Joined:
    Dec 5, 2017
    Was spraying a bit of brake cleaner around the intake manifold to check for leaks. Put a few squirts on HamCan grill to check what effect on idle would be. Found it dropped idle a fair bit. After shutting down for a few minutes, noticed the filter glowing orange beneath the grill! Pretty scary. Got it put out with windex sprayer.

    Where did it ignite from?

  2. oldbeezer

    oldbeezer VIP MEMBER

    Joined:
    Nov 2, 2017
    Please I hope you have pictures!
    Seriously, thankfully, sounds like you caught it before major damage.
    No idea what caused it.

  3. Tornado

    Tornado VIP MEMBER

    Joined:
    Dec 5, 2017
    Will take apart shortly and take some snaps if anything worth sharing.

    I can only think of "backfire" flame coming from carb but seems remote, no?

  4. Ron L

    Ron L VIP MEMBER

    Joined:
    Feb 27, 2004
    Check the wires from the alternator and any others routed below the air box. I discovered a fractured horn wire on the '69 S that looked like it probably had worn through the insulation by vibration on the rear airbox plate or the battery tray.

    Tornado likes this.
  5. o0norton0o

    o0norton0o VIP MEMBER

    Joined:
    Apr 27, 2015
    I wouldn't use brake clean to check for intake leaks... I use carb cleaner instead. Needless to say various fluids have different solvents and propellent chemicals in them. The fluid which most often in my experience ignites in the intake is starting fluid because it has such a low temperature flash point and high flame propogation speed. It doesn't take much to start a fire in the intake of an engine using starting fluid. Perhaps that is true of brake clean fluid too. That would explain why it ignited. The vapor from it ignites and the intake valve doesn't close fast enough because of the the speed of the ignited vapor of that particular fluid. (or something like that)

    I've had many a lawn mower with an intake on fire from using starting fluid, and a few cars too.

    Last edited: Apr 19, 2019
    CanukNortonNut and Tornado like this.
  6. Tornado

    Tornado VIP MEMBER

    Joined:
    Dec 5, 2017

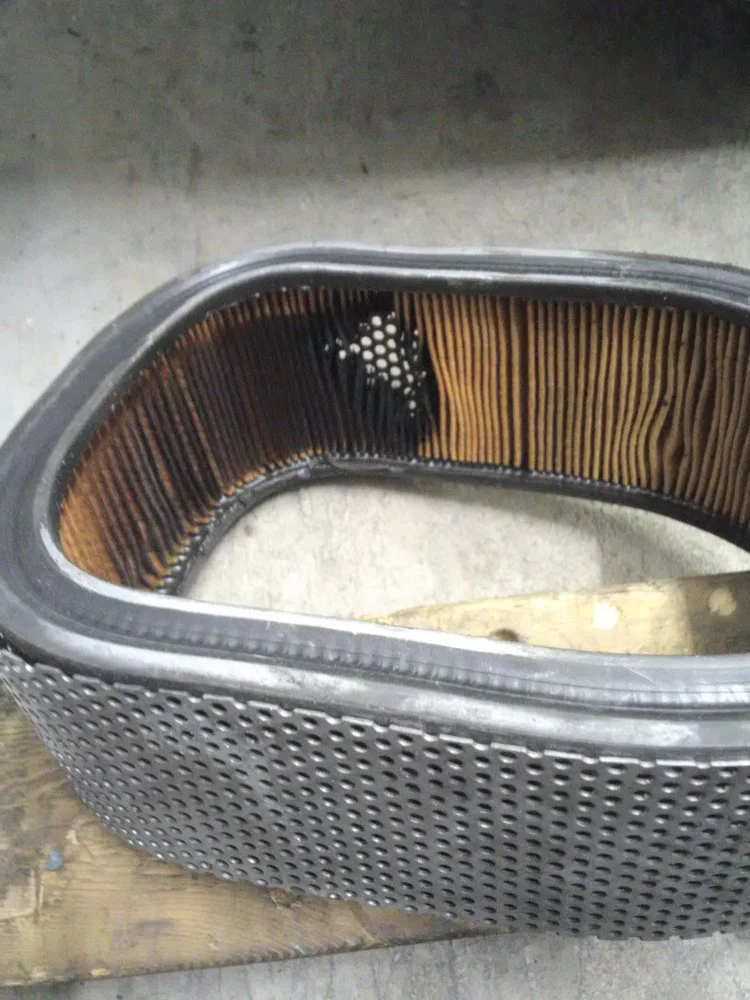

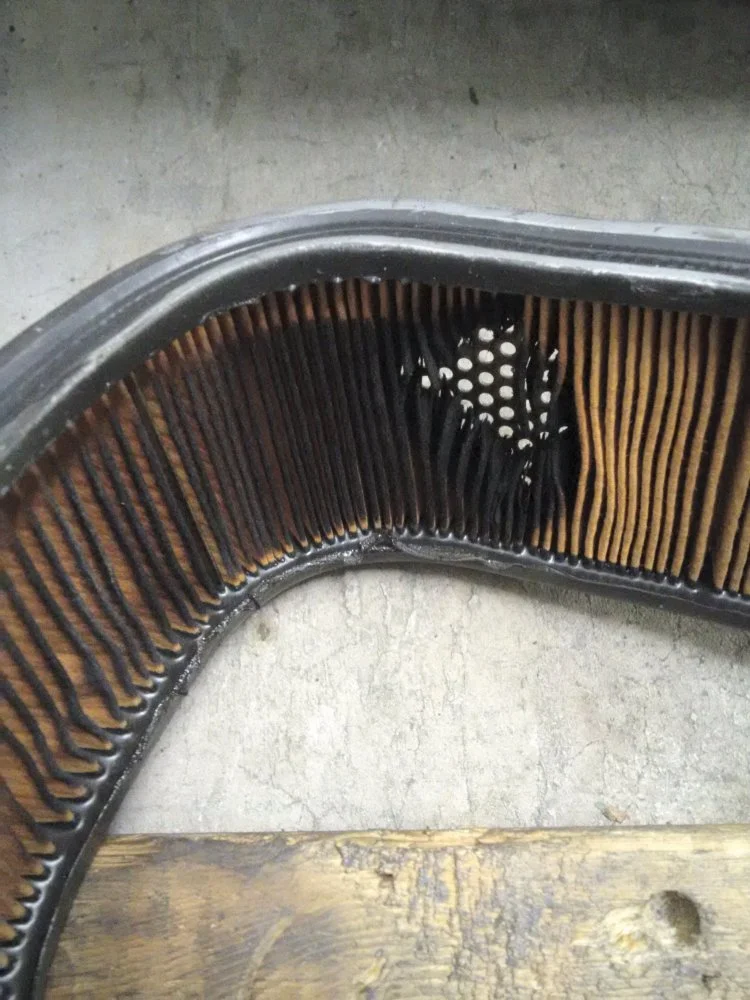

    Here's the aftermath pic:


    Looks like upper right side got most of the brunt.

    I've tossed an old filter in for now...not sure history of it as got it from a seller with box of used parts. Will order a fresh-un or might split for a K&N type made for the hamcan.

  7. concours

    concours VIP MEMBER

    Joined:
    Dec 29, 2011
    A PROPER (designed) air filter element contains wire mesh on the inside, which acts as a flame arrester.

    Dances with Shrapnel and Tornado like this.
  8. Tornado

    Tornado VIP MEMBER

    Joined:
    Dec 5, 2017
    That there sounds like a good reason to go for the K&N NO-0100 hamcan model filter. Looks like upwards of $90 here in Canada.

  9. Craig

    Craig VIP MEMBER

    Joined:
    Dec 20, 2005
    K&n will last as long as you own bike , just keep it clean and try not to burn it

    Tornado likes this.
  10. CanukNortonNut

    CanukNortonNut

    Joined:
    Aug 8, 2005
    deleted.
    Edit: no I got to say something. Really!
    Did the can of Brake Clean have a flammable symbol on it? Now you are blaming the Ham Can Paper Filter?

    Here is what is written on my Blaster Brake cleaner:
    Contents harmful
    Contents May Catch Fire.
    Container May Explode if heated.
    and another one:

    Emzone Brake and Parts cleaner:
    Extremely Flammable aerosol.
    Switching to a different K&N doesn't fix that maneuver. IMHO

    Last edited: Apr 19, 2019
  11. Tornado

    Tornado VIP MEMBER

    Joined:
    Dec 5, 2017
    Did I blame anything?
    Does starting fluid also have a flammability warning on it and don't folks spray that into filters as standard procedure?

    concours likes this.
  12. Danno

    Danno

    Joined:
    Feb 7, 2010
    Consider the possibility that "spitback" or standoff as it's more commonly referred to may have deposited some fuel on the filter medium and spraying the brake cleaner momentarily gagged the engine causing a slight backfire that ignited the fuel-sodden paper.

  13. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Brake cleaner has a very high solvent content cos it’s designed to evaporate off and leave zero residue behind on your brake surfaces. It could just have been the heat that caused it to ignite.

    You’re a lucky man!

  14. batrider

    batrider

    Joined:
    Aug 9, 2008
    Starting fluid washes the oil off the cylinder walls which is not good. It is not meant to be sprayed on an air filter.

    Have used the K&N element. It is slightly too thick and makes it harder to get the air cleaner together. I went back to the paper element.

  15. CanukNortonNut

    CanukNortonNut

    Joined:
    Aug 8, 2005
    Tornado,
    Sorry but this is what I got out from this thread ("That there sounds like a good reason to go for the hamcan model filter.") Which in my opinion would not changed anything.
    I was sarcastic, possibly. But go back to post #5 by o0norton0o. He worded it more politely than I. But good move to hit the embers with something and that you got a early fire below your fuel tank under control. You were lucky. Hopefully this turns out to be a Lessons learned event.
    Cheers,
    Tom

  16. maylar

    maylar VIP MEMBER

    Joined:
    May 13, 2007
    Not at all remote. My buddy had a foam reusable filter way back that caught fire when starting the bike. Burnt his 72 Combat to the ground before the fire truck could get there. I had the same filter on my 850 that caught fire and like you I had some water handy. These memories make me leery of oil soaked air cleaners.

  17. Craig

    Craig VIP MEMBER

    Joined:
    Dec 20, 2005
    Please tell me it was not a Uni-sock style filter , that burned the Combat to the ground ....

  18. Atlas Commando

    Atlas Commando VIP MEMBER

    Joined:
    Feb 27, 2018
    My first bike was a BSA 650 that used to spit back while trying to start it. More than once I had open flames emanating from the carb mouths. I learned pretty quickly that I just had to kick it over and it would suck the flames in and snuff them out. Your event was certainly different. For one thing, I didn't have any air filters, and your fire was on a running engine. I'm glad the windex bottle rescued the bike!

  19. rvich

    rvich VIP MEMBER

    Joined:
    Jul 25, 2009
    Just a couple more cents...propane is good for testing for manifold leaks. Use a torch that allows you to turn on the propane without igniting it and then pass the nozzle around the manifold. It's easy and clean and engines run well on it. Brake cleaner is flammable but not intended as fuel for a combustion engine. Big difference.

    The engine will speed up when the propane is ingested, which does not tend to cause a backfire like bogging it.

    Vildmand and eskasteve like this.
  20. eskasteve

    eskasteve VIP MEMBER

    Joined:
    Sep 24, 2012
    Never thought about using a propane torch. Great suggestion.
