5 bolts that mount engine/trans to frame

Pdr206 · Oct 15, 2020

I'd have to look again at my 69 norton, but I believe it is 5 different length/diameter bolts. I for the life of me, can not find them on Andover's site and I've been away from my parts manual for two weeks. Would like to order new ones as the bolts that came with my basket case were pretty chewed up.

Can anyone help me find the part numbers for these bolts? Again, they are what bolts the drivetrain to the frame, nothing else AFAIK.

Thank you!

maylar · Oct 15, 2020

These?

https://andover-norton.co.uk/en/sho...xing-set-commando-1968-71-studs-nuts-washers-

Derek Wilson · Oct 15, 2020

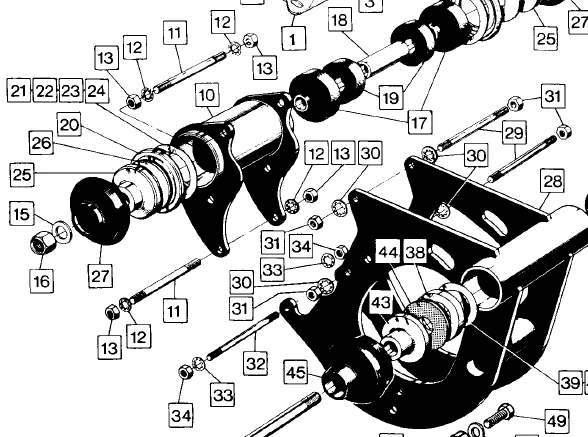

Are these what you are after? They are studs, not bolts, but bolts can be used. This is from a 1971, but your 1969 should use the same parts.

Front:

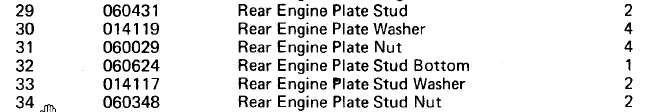

Rear:

Hope this helps.

Pdr206 · Oct 15, 2020

Absolute ace you are. Thank you! I know I have seen that diagram before. Where did it come from?

Pdr206 · Oct 15, 2020

Sorry for the PM,did not see your post at first maylar. these are exactly what I need

Derek Wilson · Oct 15, 2020

Pdr206 said:
Absolute ace you are. Thank you! I know I have seen that diagram before. Where did it come from?

Andover Norton Parts Drawings - Genuine Andover Norton Factory Parts - Commando Parts

Andover Norton Parts are the only Norton spare parts in the market manufactured to original drawings, within the factory-approved tolerances, from the correct materials, and with the correct finish.

andover-norton.co.uk

Torontonian · Oct 15, 2020

Check to see if the cradle stud holes are not oval or worn , particularly the rear 3.

tyborg15 · Oct 15, 2020

I bought a very nice engine mounting kit from CNW. High strength stainless steel, 12 point bolt/nuts.

Scout63 · Oct 16, 2020

Studs work better than bolts since you can remove them without removing the inner primary cover if one breaks. Ask me how I know.

SteveA · Oct 16, 2020

Pdr206 said:
I'd have to look again at my 69 norton, but I believe it is 5 different length/diameter bolts. I for the life of me, can not find them on Andover's site and I've been away from my parts manual for two weeks. Would like to order new ones as the bolts that came with my basket case were pretty chewed up.

Can anyone help me find the part numbers for these bolts? Again, they are what bolts the drivetrain to the frame, nothing else AFAIK.

Thank you!

The pedantic response could have been there is one bolt and one stud that mount engine and trans unit to the frame, through the Isos. There are 5 studs that mount the crankcase to the front Iso bracket (2) and the cradle (3), and 2 that mount the gearbox to the cradle, but since you now know what you are looking for...good luck!

LAB must have been busy elsewhere.
