2012, 961 paint and wiring

Discussion in 'Norton Motorcycles (Modern)' started by timshawglass, Jan 20, 2019.

  1. timshawglass

    timshawglass

    Joined:
    Oct 14, 2018
    Help! I just stuffed up, I was fitting a trickle charge to the battery and had not sussed out how to remove the fuel for the tank, and I had the tank perched on top of the bike, consequently I dropped the tank, and it pulled the wires out from the connector from the loom to the fuel pump located inside the tank.
    As the loom wires and the wires on the pump are all different colours, Can any one tell me which wire connects with which?
    Also has any one got any tips for touching up the paint work?
    Thanks
    Tim
    Its a 2015 model not 2012!

    Last edited: Jan 20, 2019
  2. timshawglass

    timshawglass

    Joined:
    Oct 14, 2018
    Sorry chaps its a 2015 961 sport not a 2012!
    Tim

  3. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    Tim, nightmare!

    Sorry, I can’t help,with your colour codes as mine is a later Euro 4 bike.

    But... to preven this catastrophe in future (and unfortunately, make you feel even worse about this one) are you aware that the factory kindly fitted a trickle charge socket, located on the RHS under the seat? It should be visible, but it may require the seat removing to see it.

    Also, check out the ‘sticky posts’ at the top of this page. One07 made some manuals that are on the cNw web site that are very helpful. One is about tank removal.

  4. timshawglass

    timshawglass

    Joined:
    Oct 14, 2018
    Thanks fast Eddie!

  5. comet

    comet VIP MEMBER

    Joined:
    Aug 23, 2016

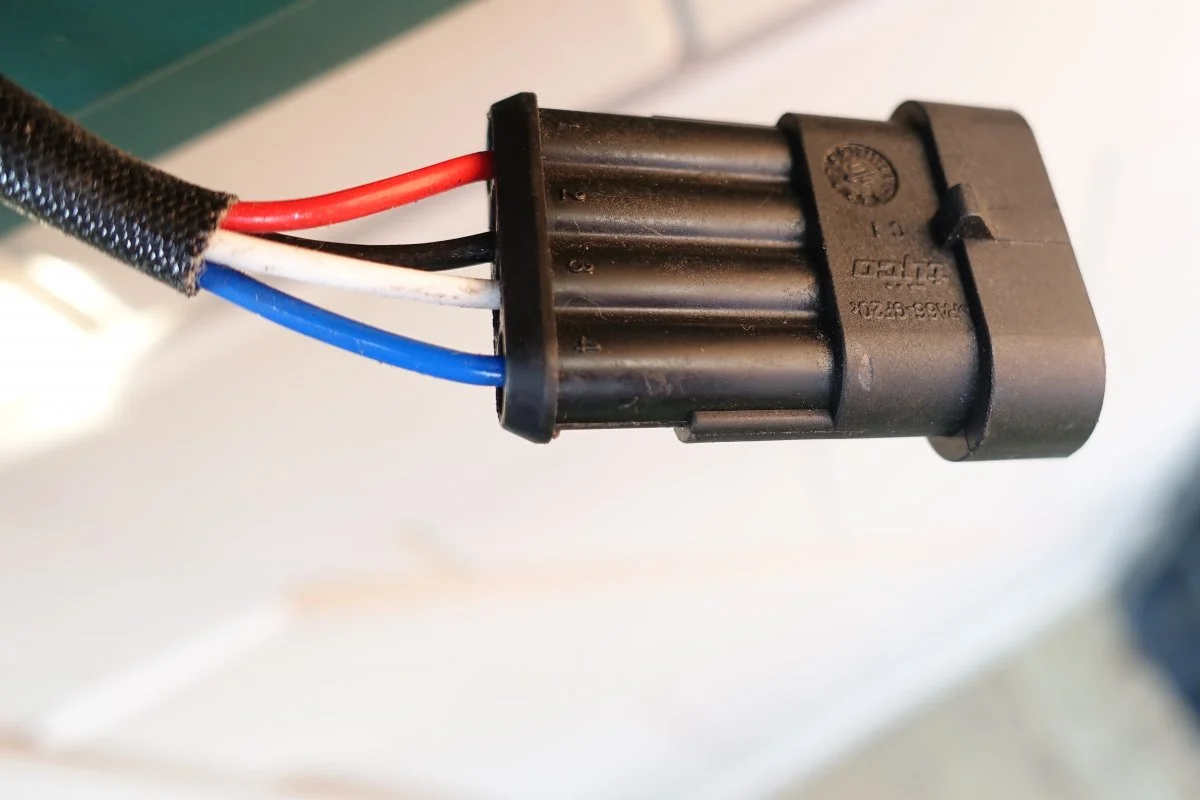

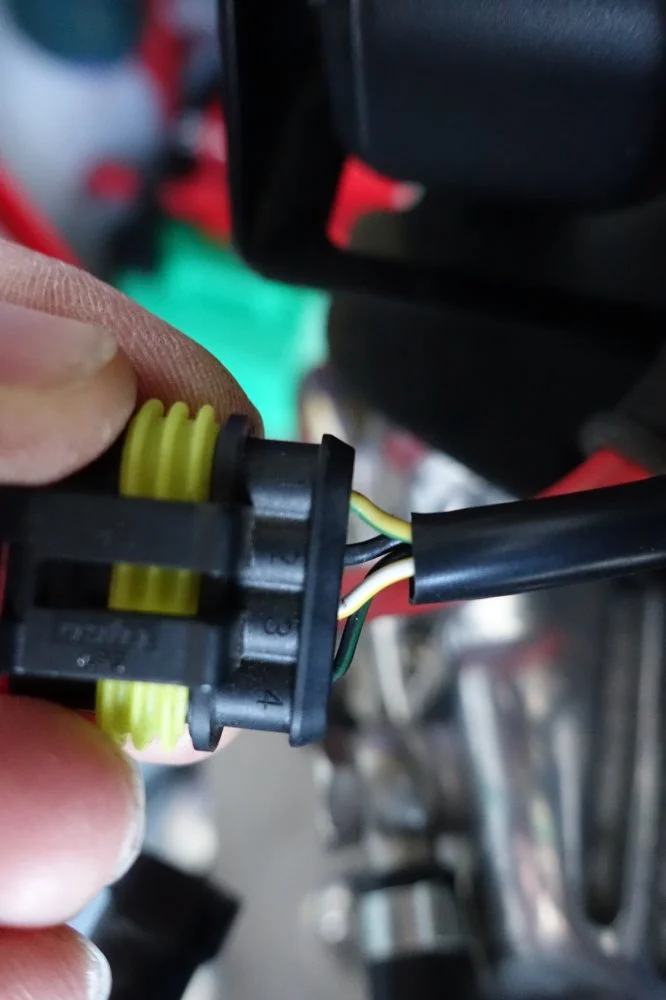

    Mine's a 2013, the connectors are numbered on the plug and socket.

    DSC01592.JPG DSC01588.JPG

  6. timshawglass

    timshawglass

    Joined:
    Oct 14, 2018
    thanks comet, trouble is that the wire got pulled out of the connector! all but one the white and green which is in a different position from yours! Must have different coloured wires on mine!
    by the way how do I post images, I tried the camera icon and it says I haven't added any media but when I click the my media it doesn't do anything!

  7. timshawglass

    timshawglass

    Joined:
    Oct 14, 2018
  8. comet

    comet VIP MEMBER

    Joined:
    Aug 23, 2016
    I figured your wires had pulled out, I was hoping they were the same colour as mine. I don't have a white/green wire. My connection is in line with the Euro 3 wiring diagram:

    Pin 1 - yellow/green to red
    Pin 2 - black to black
    Pin 3 - white/yellow to white
    Pin 4 - green/black to blue

    I'm assuming the wires from the pump are the same (i.e. pin 1 = red etc). If so, what are the colours of the loom wires, perhaps someone else has a wiring diagram with those colours.

    I haven't used the camera icon, I use the "Upload a File" option. I think you have to be a VIP member to use that - just requires a small monthly subscription to the forum.

  9. comet

    comet VIP MEMBER

    Joined:
    Aug 23, 2016
  10. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    My wiring diagram shows :

    pin 4 = black wire w/green tracer
    pin 3 = white wire w/yellow tracer
    pin 2 = black wire
    pin 1 = yellow wire w/green tracer

    Mine is just like Comet posted . Have your wires faded possibly ? I do not see a whte/green .

    Last edited: Jan 20, 2019
  11. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    Also , No need to remove the fuel . Just disconnect the QD fuel line from the pump . First disconnect the pump power plug and make sure key is off ! Read the Richard-7 manual to see the steps. Also , where was the tank scratched/gouged ?

  12. BritTwit

    BritTwit VIP MEMBER

    Joined:
    Aug 25, 2009
    Time for Rob at Norton to chime in.

    gchoppin likes this.
  13. BritTwit

    BritTwit VIP MEMBER

    Joined:
    Aug 25, 2009

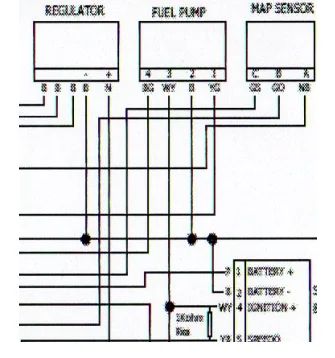

    Scan is poor because the manual compresses a large image into I page.
    Pin 1 looks to be Yellow/Green strip. No other yellow wire.

    [​IMG]

    Last edited by a moderator: Jan 31, 2019
  14. TonyA

    TonyA VIP MEMBER

    Joined:
    Jan 16, 2015
    WY = white with yellow tracer

  15. timshawglass

    timshawglass

    Joined:
    Oct 14, 2018
    You are all fantastic, thanks so much. the colours do match, and I'll put the tank back on today and try start her up. will let you know. This is a link to the image of the gouge in the tank.


  16. Rob Jameson - Norton UK

    Rob Jameson - Norton UK

    Joined:
    Apr 9, 2018
    Your bike appears to be 'Royal Red'. All of our paint colours are mixed at our painters specifically for us so do not have a colour code as such.

    The only thing I can suggest is you take the tank to a paint factors and ask if they can colour match it.

  17. Britfan60

    Britfan60

    Joined:
    Jan 5, 2014

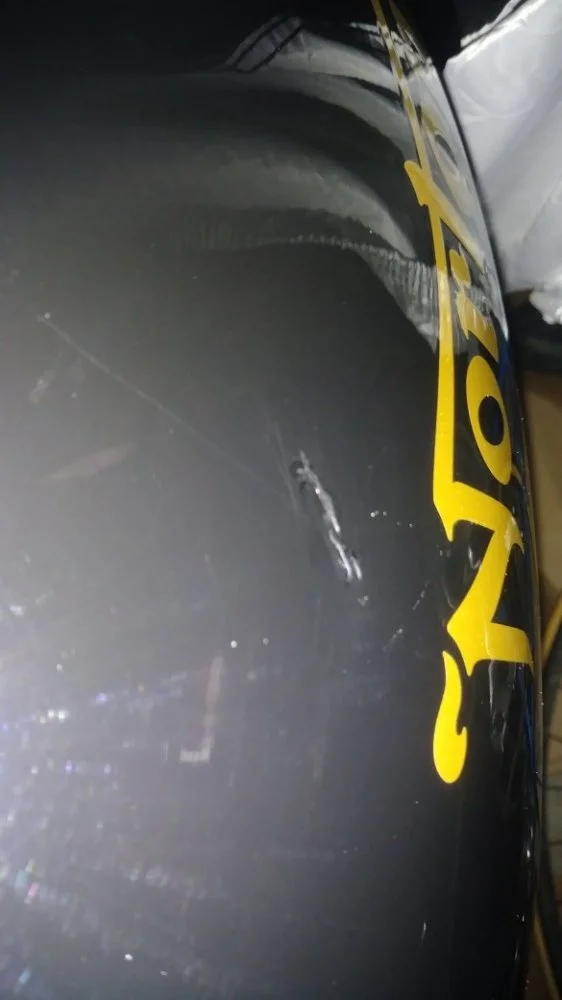

    Wow. I can only imagine the maniacal screaming and cussing when that happened. I'm sorry for that. I've recently had a roasting pan fall from a shelf and ding my tank. The neighborhood got an earful. And, it's not really that bad.

    BritTwit likes this.
  18. Fast Eddie

    Fast Eddie VIP MEMBER

    Joined:
    Oct 4, 2013
    How's the roasting pan...?

    Britfan60 likes this.
  19. BLIGHTYBRIT/SF

    BLIGHTYBRIT/SF VIP MEMBER

    Joined:
    Feb 28, 2016
    Sexy sticker over the gouge for now perhaps !

  20. Britfan60

    Britfan60

    Joined:
    Jan 5, 2014
    It was fine, so I picked it up and smashed it to the cement floor a few times. Now it is nicely dented. As it should be.:mad:

    Last edited: Jan 23, 2019
    Fast Eddie likes this.
