1972 Roadster Rebuild

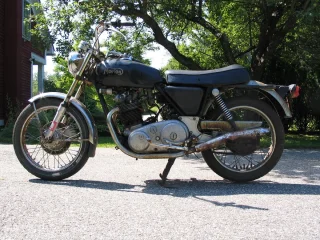

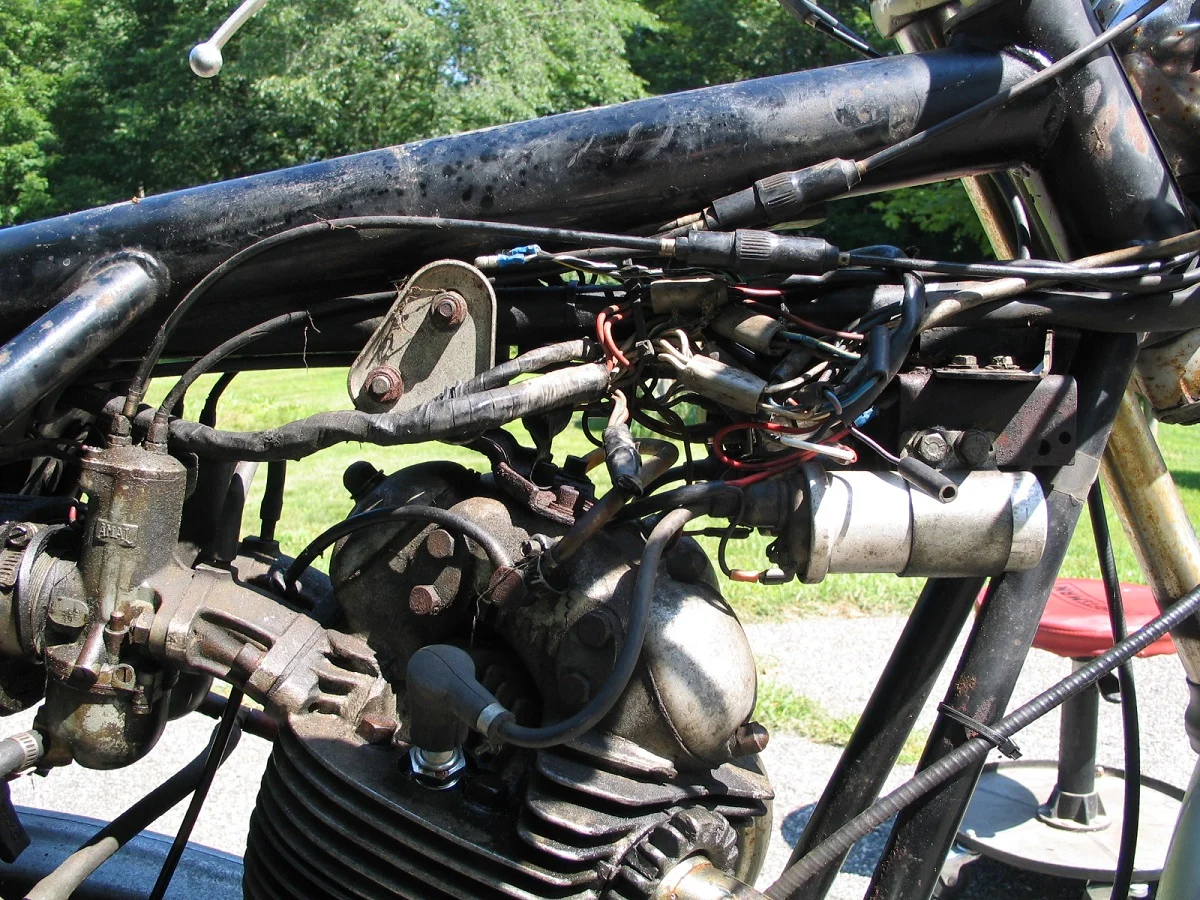

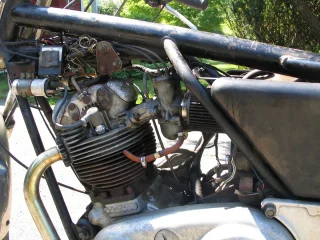

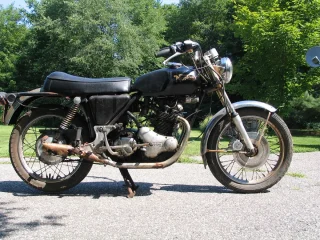

I am newly signed on here and I should introduce myself, as I have finally acquired a Norton Commando. A "shed fresh" 1972 Roadster with the disk brake option, s/n's 201202. I would say it is 99.9% complete, doesn't appear to have been abused too badly, is thoroughly surface rusted, and has no telltale crash scrapes. I had heard it was newly listed on Craigslist and not even 5 miles away, so I went right over. It was a little scary looking, but I decided if I was ever going to get a Commando this was it, so I agreed to his firm asking price of $3K. It had a 1983 Vermont inspection sticker on it, but it's usage history and why it was put up is not known. Back in the later '60's when I was riding Triumphs, a friend had a Norton that I always thought was cooler than a Triumph. Kind of like my thinking at the time that another friends Austin-Healey was maybe a little cooler than my TR-4. Down thru all my years of riding and a little racing, mostly Ducatis, owning a Commando was always in the back of my mind. And for the last couple of years, what with the awful condition of New England road pavement and unrelenting speed limit enforcement, I began thinking an older slower bike might put more fun back in street riding. I dearly love my Ducati 748 but it doesn't come into its fun zone until speeds that are much higher than conditions or police will allow. So I am in the process of returning my old BMW R90S, that was all stripped down for vintage racing, back to street legal use as a "cafe". But I think this Commando will make the ideal fun street bike. All I have done to it so far is spray almost a full can of PB-Blaster on it and removed the exhaust system to cut off the completely rotted out mufflers. I put a couple quarts of 5-20 in the oil tank to top it off, sprayed a healthy amount of engine fogging oil into the spark plug holes, and with the kick start lever cranked it over until plenty of the fresh oil was coming out of the return line. It shifted it into all the gears and was told it had spark. The fiberglass tank I am sure has never seen ethanol gas, and appears to be a good candidate for a Caswell coating. My plan is to slowly but surely get it into a nice looking good rider, treating it as a collection of sub-assembly's as was suggested in the recent "Where To Start" thread. The last thing I want is a basket case. The good looks part should be easy, as I've long considered the Commando the best looking motorcycle ever made. I'm sure all my questions along the way will have already been covered on here, so this forum should be an excellent resource.
Bill

7/18/17 Edited photos back in.

Re: New Sign On

Welcome to the forum.

You have some excellent "before" photos there, can't wait to see the "after" shots!

Re: New Sign On

pantah_good said:

... a Norton that I always thought was cooler than a Triumph. Kind of like my thinking at the time that another friends Austin-Healey was maybe a little cooler than my TR-4.

Click to expand...

Correct on both counts... That, or maybe just a little bit of the grass is always greener syndrome.

Welcome to the forum! Like someone once said, "Rust never sleeps"

Nathan

Re: New Sign On

Welcome, I have a pair of header pipes that you may be interested in that are just sitting in my garage in a pile. Shoot me a PM as they will be a great steal for you.

Nathan

Re: New Sign On

My buddy Wes has a nice 69 Bonneville and 71 Cdo and says the Cdo is like a UFO compared even though he also like the Bonnie light handyness on twisties and on THE Gravel, its gotten away from him in surprise shock going secure slowly. Truninps look like faceted gemstones to me all cleaned up but in antquie setting like childs red wagon. Triumph drum vs Combat disc is night and day too. You will see way more Cdos out in public than any other vintage Brit Iron. We would not be having this discussion even with you Duci 750 experience if you had actual tasted a Commando, especially to the Cream of Crop Combat Bomb. Btw 1972 Combat era and actual factory issue features is a touchy subject to discuss as some versions issued that year are not full Combat spec and some shared features but real Combat had black barrels and yours does not seem so but otherwise has external features of Combat. Can search up Combats numbers to see if your lands in time and number range.
I know what vintage 750 Ducatis are capable of and seen hot shots on elite 600s loose it and ask Ducati pilot how the hell such an antique can go around that fast : ) Put triple isolastic links or swash plates on the Combat and see which ya like best. Will want the swign arm spindle back up collars as cheap hidden upgrade. Rear brake safety spring is not in any parts book. Get the 1/4 Whitworth bent end wrench vendors should all have.

$5000 is slightly pricey side but not unreasonable money inflation age for intact dream machine which looks fairly straight forward to get it nice & roadworthy for about 10 grand more if not getting too fancy on upgrades and finishes. Be alware the brake system and fork and swing arm likely as rusted as the rest of it. I file and sand to 2000 grit before the series of buffer wheel polishing begins... and keep a FIRM grip on items.

Re: New Sign On

Thanks for the replys.

NoiseyNorton: I will get a PM off to you.

hobot: I was hoping for some feedback on what I paid for it as it was kind of a rushed / shot in the dark / take it or leave it purchase, but if you were talking about my deal, you might have mis-read the price which was three thousand. I was leaning toward just replacing the stock master cylinder with a Brembo 12mm rectangular reservoir master and hoping I can rebuild the caliper. If the caliper isn't saveable, I am curious if anyone has adapted a Brembo F08 caliper which I am very familiar with. I will do a search on here for that and for the rear brake safety spring. And I agree, there are no short cuts when polishing.

Bill

Re: New Sign On

Rotten mufflers? I through they were the open sports exhaust pipes, joking aside I think you got a good buy, another one saved and I am sure you will have some fun with it and will be better when you first fire it up and take down the road, good luck and welcome.

Ashley

Re: New Sign On

pantah_good said:

I am curious if anyone has adapted a Brembo F08 caliper which I am very familiar with. I will do a search on here for that and for the rear brake safety spring.

Bill

Click to expand...

cNw adapts the Brembo 5165 Series: P3034, I think, for their lovely kit

http://coloradonortonworks.com/part-categories/brakes/

Re: New Sign On

Welcome ... nice looking Commando project ... lots of opinions here ... lot of true blue knowledge too ... take your time and get to know your bike ... you are going to love it ... the CNW Brembo master works well with rebuilt caliper , SS brake line and new modern pads ...
Craig

Re: New Sign On

Craig said:

new modern pads ...

Click to expand...

Dont forget new modern shoes...

http://www.rgmnorton.co.uk/buy/rgm-rear ... d_2471.htm

:mrgreen: :mrgreen:

Re: New Sign On

Bill - you should give this thread a read (teaser below) - ugrade-brake-lockheed-plus-ninja-t22556.html

comnoz said:

jaydee75 said:

Ok, it is finished. It is actually better than I expected. The road test was a joy. With the increased diameter frictional radius it should be 14% stronger due to mechanical advantage alone. The slick hard chrome oem surface has a terrible coefficient of friction and I knew it would improve. The A/N hoses replacing the oem rubber hoses gives a solid feel. The original rotor weighed 5 1/2 pounds, new one a little over 1 pound.
All in all, I am tickled and probably will never add the Brembo caliper I had originally planned.
I'll be at the INOA rally in a couple of weeks if anyone wants to see it.

Jaydee

Click to expand...

What you have done is a much better upgrade than trying to make the original brake work by increasing the hydraulic ratio.
Using the original caliper and rotor with a small master is a disaster waiting to happen if you ride in the mountains, as it will overheat quickly and then there will be no brakes at all.
See you in NC. Jim

Click to expand...

Re: New Sign On

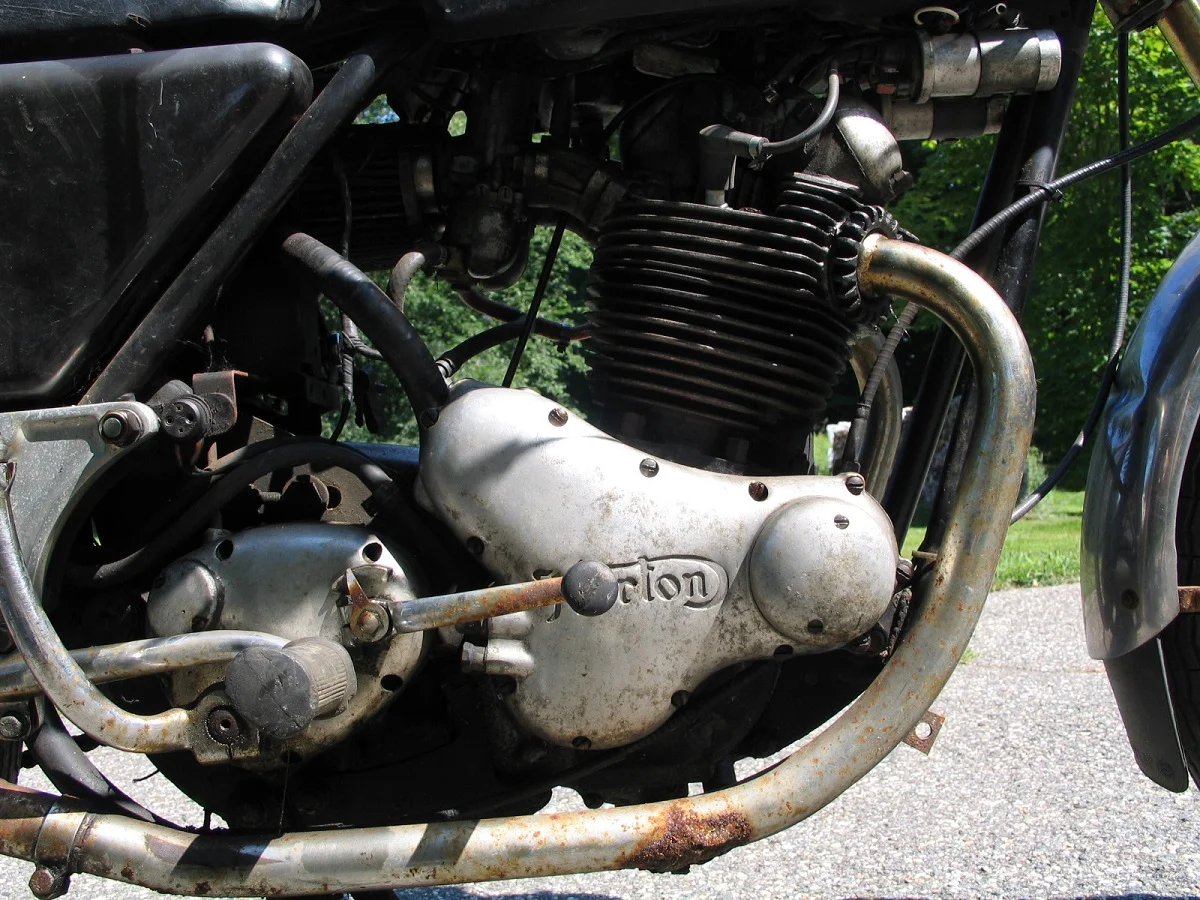

That is the gnarliest exhaust I've ever seen still clinging to a motorcycle. :shock:

Re: New Sign On

Welcome to the forum.
How many miles on the odometer?

Whenever I check out a new project, I always look at how buggered up the fasteners are.
I figure that if whoever worked on it in the past couldn't take it apart without tearing up the nuts, bolts and screws,
Then it a sure bet that whatever they "fixed" was done poorly and will need to be repaired correctly.
Yours luckily don't look to be too bad.

Those tabs welded to the downtubes. I wonder what they were added for ?????

Re: New Sign On

Ok 3000 is 2000 better but now see you are in for it over 10 grand as already spent most a grand to lose Norton brake. Enjoy the process and decision points$. Picking the right oil is something else to ask. Have ya been initiated yet on the classic vdieo we drive L.A.B. nutz with, who might send em is ya ask or just delete ya.

Re: New Sign On

Nice complete bike that looks pretty well unmolested.

"...put a couple quarts of 5w20 in the oil tank to top it off..." Have you drained the sump? A Norton that sat that long with oil in it would most certainly have wet sump'd it's contents to the engine in which case it may now have twice the amount of oil it should and the extra will get pumped into the re-filled oiltank and out through it's vent line (and anywhere else it can escape too).

Re: New Sign On

Odometer reads 16,263 miles.

Thank you, no, I didn't think to drain the oil first, but should have. I was just turning it over with the kick start lever to see if oil circulated, which it did, and that stuff will get all drained out. I'm a long way from trying to run the engine.

This forum may be too good. I'm not getting anything else done.

Bill

Re: New Sign On

While there are no true mountains in Nova Scotia ... there is no flat land either ... very hilly terrain right down to the water ... I did forget to mention new rear brake shoes ( and drum for me ) ... however I have had no heat issues with my front brake , what so ever ... Vermont is similar in geographical features ... unless you are heading for the Rockies I think the previously mentioned front brake upgrade works fine ... maybe not the best upgrade available but cost effective with excellent results ... what's that saying " how high is high enough "
Craig

Re: New Sign On

Non running, but omplete, bikes always seem overpriced to me. Sellers always have the "it's all there" attitude, even though a lot of parts have to be thrown out because they are so far gone... IMO, the thing that would make the bike worth $3000 is the thing that is unknown with a non-runner.. If you are lucky and the frame, engine, gearbox, and primary internals are actually "good to go", then you got a fair deal. If the engine needs a complete overhall, then $3000 isn't as good a deal.

I bought my bike from a friend in 1978 for $500. because it had a burned out stator and my friend got tired of trying to find the problem... I saw my bike run when my friend owned it, even though he had trouble with it. Eventually, I did rebuilt the entire bike over the years and it wasn't cheap to do. For a long time, I had more money into the bike than it's market value was worth. I think at some point in the future as the value of old bikes rise my bike will be worth more than it cost me to rebuild it.... I'd say I have 5-6,000 into it in rebuild parts and consumables like tires and replacement cables, brake pads, isolastics, metal gas tank, and new seat, etc... I don't include the time I spent working on it in my cost estimate...

There's some stuff on your bike that is going into the garbage, like the front fork tubes, tires, and mufflers, but that's expected. As was mentioned, You really need to post a before and after picture once you're on the road. Those mufflers are "unique". 8) Good luck to you...

Re: New Sign On

And a fine howdy to you new sign on.... I've been bit by the norton charm.... Hard !! Years ago,you picked the right forum to join,no pretensious bullshit here just a good group
Of like minded folks,some of the brightest norton minds in the world are here too... Might I suggest a VIP
Membership to you ? It's next to nothing and helps support this great endeavor ,welcome and have fun with your project

Re: New Sign On

Mine was not far from that condition and I spent $8K and there's still things to do. But it runs fine and looks half decent, not pristine by any means. Welcome.

Dave
69S
