1963 650SS Australia

Discussion in 'Norton Motorcycle Rebuilds' started by Burgs, Jul 22, 2018.

  1. Burgs

    Burgs VIP MEMBER

    Joined:
    Dec 14, 2013

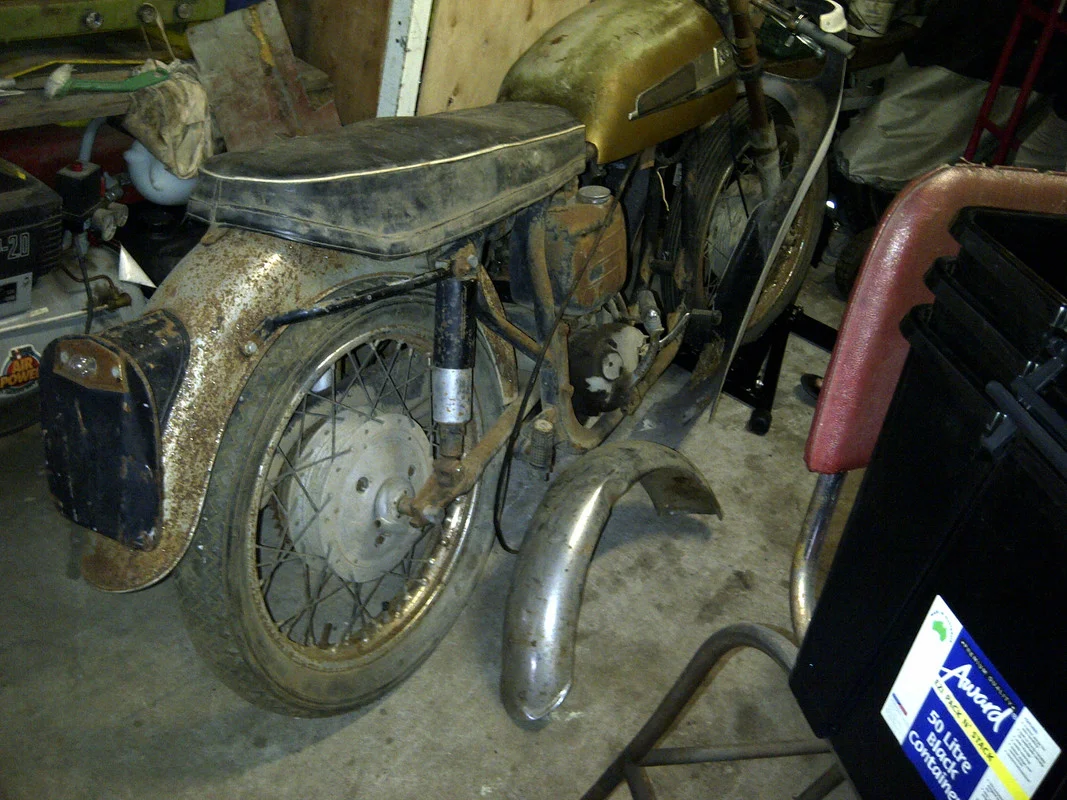

    Well this year is the year I finally got to work on my 63 650SS, which I found in Bathurst a few years back April 2013.
    The plan is to complete the bike this year, time permitting.
    Bike had been stripped down in the seventies after are spending time on the race tracks around Sydney, so the previous owner said.
    The engine was in an old trunk stripped down to just about the last nut and bolt.
    There was a busted conrod and evidence marks in the timing side case of the conrod making heavy contact.
    In the box of engine bits there were two Commando rods and a set of well worn 99 pistons.
    Bores were out to 0.020" oversize.
    The head was fully assembled, the original Monoblock carburettors were intact except for the slides and Caps/nuts.
    The frame was a roller with gearbox still in place, clutch was complete.
    Most of the panel work seemed to be there and in reasonable condition, missing at the time of inspection was the exhaust pipes and front mudguard, the previous owner found these prior to delivery, he delivered for free.

    [​IMG]
    Best regards
    Burgs

    Last edited: Jul 28, 2018
  2. gortnipper

    gortnipper VIP MEMBER

    Joined:
    Nov 11, 2013
    Please change your font color from white. It does not show up on a standard white background.

  3. L.A.B.

    L.A.B. Moderator VIP MEMBER

    Joined:
    Nov 20, 2004
    Text corrected. Now visible in the white background forum version.

    gortnipper likes this.
  4. Burgs

    Burgs VIP MEMBER

    Joined:
    Dec 14, 2013
    Hi
    Frame was bent and twisted straightened out using a 50mm thick mill table and panel beaters jacks.
    The table has a heap of holes drilled and tapped that allowed me clamp the frame down using the swing arm spindle as reference.
    The rear left hand top shock mount was higher than the right hand side by about 12mm, and the top left-hand rail had a dip down wards.
    Jacking the rail out bought the shock mount back in line, had to have a few goes, I had to jack way further than I thought to get it to come in line.
    Steering head also had a twist at the bottom, but this also came back into line.
    I machined a set of cones to fit a piece of hard chrome rod I had to check the alignment of the steering head.

  5. acotrel

    acotrel

    Joined:
    Jun 30, 2012
    Talking about jacks - I saw Jack Forrest win a race at Bathurst on one of those.

  6. Burgs

    Burgs VIP MEMBER

    Joined:
    Dec 14, 2013
    Hi Al
    They were quite successful in production racing in Australia and other places for sure.
    I have been looking for one for many years and just luck I guess when we found this one.
    We were at the annual Bathurst week long rally and someone in our group thought they would like to check out the shed next to the caravan park for bikes, when they spotted the owner they dully chased him up.
    They came back and said not much there except an old 650ss in boxes all over the place, waited till next day and the rest is history.
    I have had the crankshaft reground, bores rebored to plus 0.030" and fitted one of my reed breathers.
    New cam old one badly worn, new cam bushes and of course new mains.
    [​IMG]
    [​IMG]
    Test fitting new Monoblocs, and sorting out missing stud and SHCS.

    Burgs

  7. grandpaul

    grandpaul VIP MEMBER

    Joined:
    Jan 15, 2008
    Looks like a very fun project.

    Did you see that Manx bodywork kit in the for sale section?

    Broken link removed

    Sounds like a fair price...

    Last edited by a moderator: Sep 13, 2018
  8. possm

    possm

    Joined:
    Jul 3, 2009
    Are you running the sleeves in the inlet manifolds?

  9. Burgs

    Burgs VIP MEMBER

    Joined:
    Dec 14, 2013
    Ordered some sleeves yesterday, how did you end up with yours, are they still in place?
    Got most of the tin bits ready for painting, need to get some dents out of the chain case first.
    Broken link removed

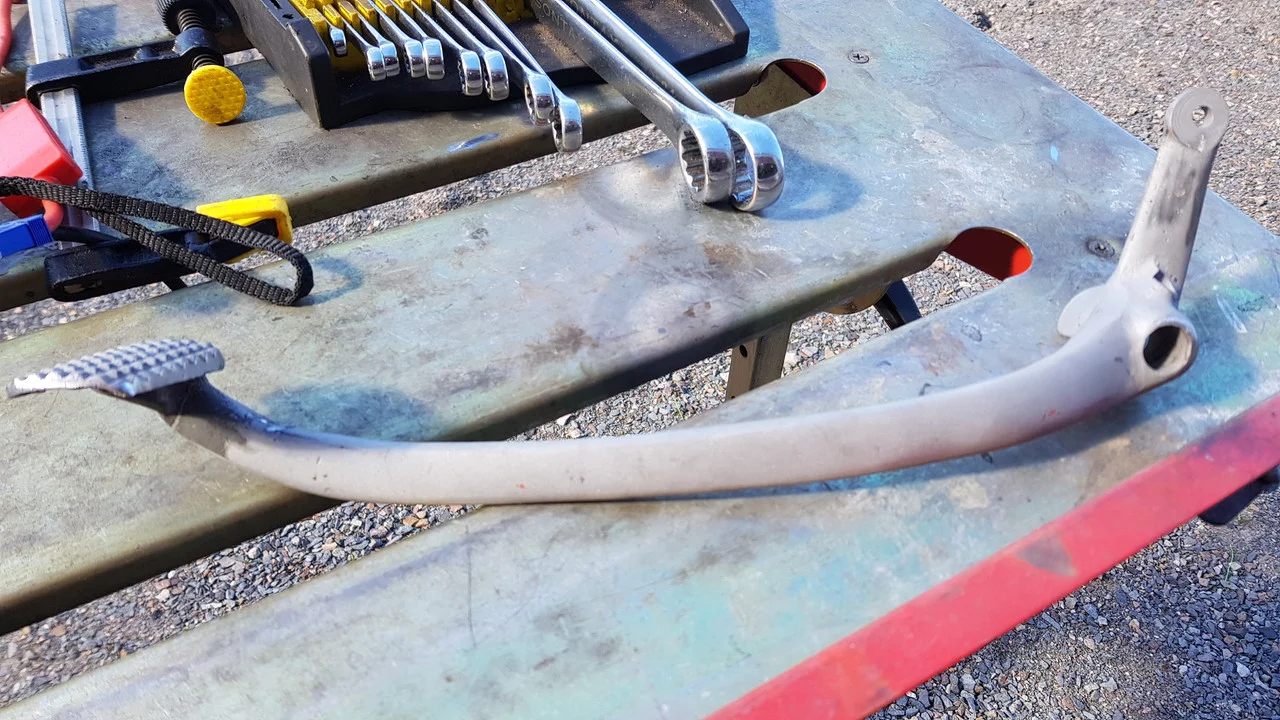

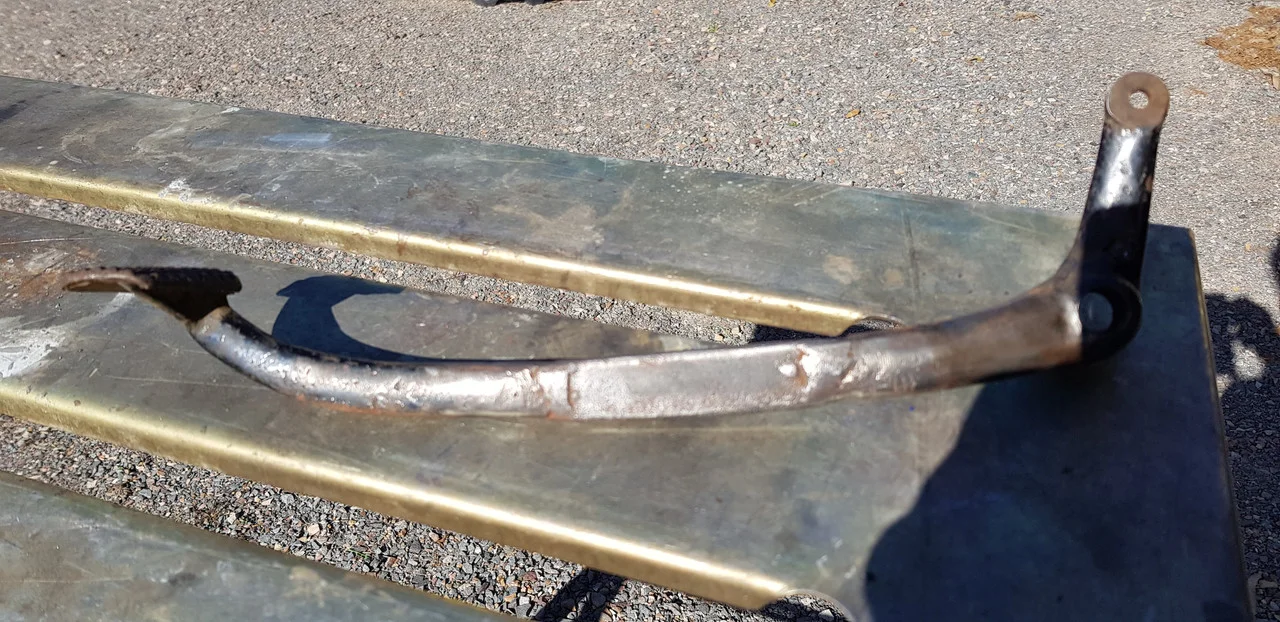

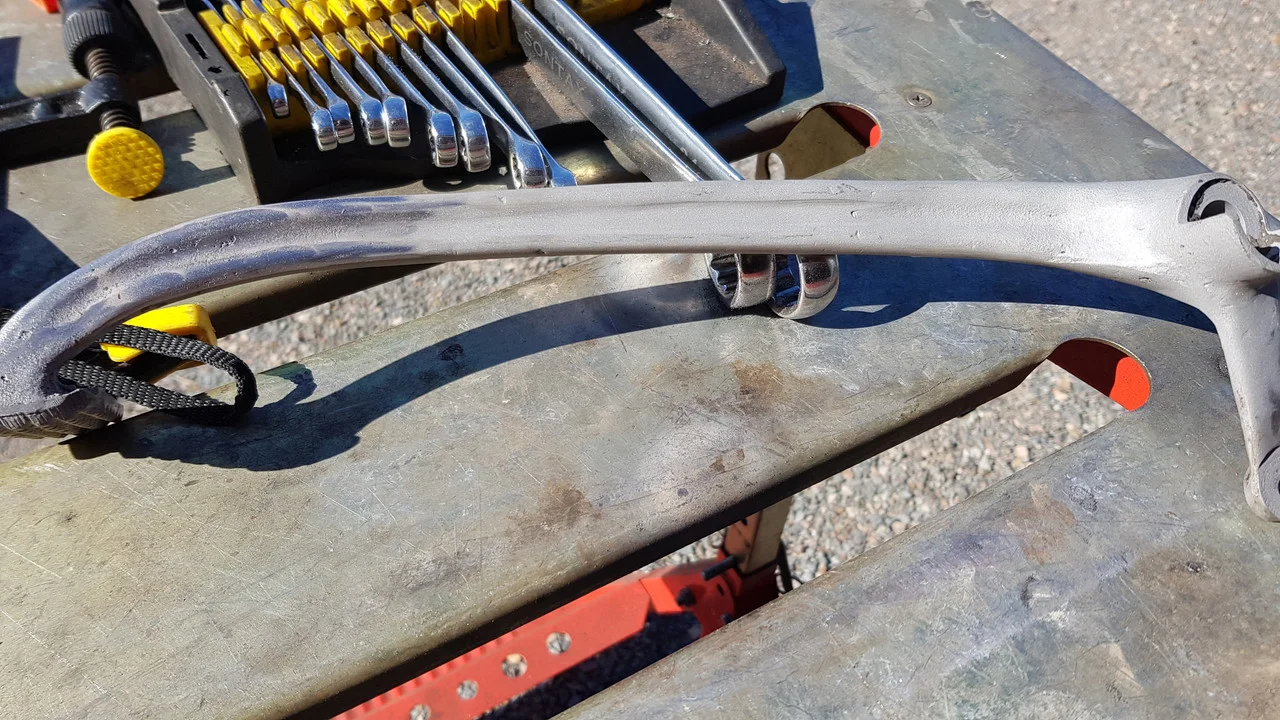

    Brake pedal was broken at some stage had a piece welded in, ground out the welds and rewelded and cleaned up
    [​IMG]

    [​IMG]

    [​IMG]

    Last edited by a moderator: Jul 26, 2018
  10. robs ss

    robs ss VIP MEMBER

    Joined:
    Aug 16, 2016
    Burgs
    Where did you order your sleeves from?
    I wasn't aware they were still available
    I've got twin Monoblocs on my '64 but no sleeves.
    Cheers
    Rob

    Kvinnhering likes this.
  11. acotrel

    acotrel

    Joined:
    Jun 30, 2012
    Bob Rosenthal has a 750cc Atlas which he raced in A-grade road races against proper racers, in Victoria in the 1960s. The other guys used to get upset because he left the rear number plate and tail-light on it while he blew them to the weeds. Another friend had a 650cc Manxman - it surprised me - it was much faster than a 650cc Bonneville of the same year.
    I think that Jack Forrest would win on any bike he rode - he was a work's rider for BMW in Europe. One of my mates who raced against him, hates him because of his big mouth.

    Last edited: Jul 23, 2018
  12. acotrel

    acotrel

    Joined:
    Jun 30, 2012
    The simple fact is that in Australia, in the 50s and 60s most of us played with Triumphs, not Nortons. There were far more Triumphs imported. Nortons of that era are pretty rare. I'd love to have one, they are the sort of bike that let's you feel the hair growing on your chest. A unit Bonneville is always good, but a featherbed Norton twin is better. The Norton is more substantial and usually doesn't piss oil.

  13. Burgs

    Burgs VIP MEMBER

    Joined:
    Dec 14, 2013
    Grandpaul
    Been there done that with café racer bit, I still have a project using a Trident engine I have acquired, currently more interested to getting things as close as possible to original.

    Rob ordered sleeves from RGM hopefully they are correct, Part # 067860, they look right in the photo.

    Al, real good riders are like that, they make it look easy.
    I bought a 1958 99 in 1968 that basically never had a spanner on it, until I got hold of it and turned it into a café racer that is, the things you do, still have the gearbox and fuel tank!
    Spoke to an old racer at Broadford a few years back and his advice on going out on the first few laps was to get to know the bike, gear changes, brakes, then work on going faster a little bit at a time, I was at the time trying to work out how to ride a two stroke, he was on his Manx, took his advice and got better every lap.

    Burgs

  14. acotrel

    acotrel

    Joined:
    Jun 30, 2012
    The guy who originally made the crank for my short stroke 500cc Triumph motor, worked for the Triumph factory and came 12th in the Senior on the IOM in about 1948. He told me that when I started racing I should force myself to go slow. But I was too smart for that - I went fast and crashed a lot. I still think I don't deserve to be alive. You don't get fast by riding bad bikes, but you learn how to avoid crashing. When I built the Seeley Commando, I went almost straight to a good answer - experience counts. If you have raced a two stroke and solved it's problems, an old British four stroke is much easier to deal with. The problems are similar but different - especially valve timings and exhaust systems.

  15. possm

    possm

    Joined:
    Jul 3, 2009
    My engineer manufactured a pair of sleeves from pictures posted on this forum by beng.

  16. Burgs

    Burgs VIP MEMBER

    Joined:
    Dec 14, 2013
    Rob yes I had those pictures to, but when I saw RGM had them I took the easy route.

    Both footrests had been broken off and had bits welded to them, had a go at restoring them but scrap bin jobs really so have a new one from RGM so far and will get the other in the next couple of weeks.
    No side or centre stands with it either and haven't been able to source off ebay or local swap meets, so most likely I will have to order new ones, which I will do after this week, as there is a swap meet at Nabiac, that sometimes turns up the odd bits.

    Burgs

  17. robs ss

    robs ss VIP MEMBER

    Joined:
    Aug 16, 2016
    possm - I've been chasing those drawings for a while - could you post them here? (or PM me and I'll give you my email)
    Cheers
    Rob

    Last edited: Jul 24, 2018
  18. robs ss

    robs ss VIP MEMBER

    Joined:
    Aug 16, 2016
    Thanks Burgs - found them on the RGM site :D

  19. possm

    possm

    Joined:
    Jul 3, 2009
  20. possm

    possm

    Joined:
    Jul 3, 2009
