Warpedscout 74 850 Commando Rebuild

Member's Norton Restoration Projects

Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Mon Sep 05, 2016 10:51 am

Been a long while since I have got back on rebuilding my 74 Norton. Friend still has my transmission case and will be getting it finished up in the next month or so. Just got my parts back from the powdercoaters a few days ago. Used the template to blank it off from Old Britts, hoping I hit all the correct spots on it!! Have cleaned and painted blanking areas and waxed. WIll probably do another wax to make sure have a good one on it. Had frame coated Semi Gloss black, the guys who did it gave me a good deal. Was $150 to blast and PC, I went back to blank it to save the money and a lot of headaches!! Hope to make at least monthly progress on this but having to deal with contractor putting in pool and may have to resort to legal actions. Fiancee is wanting me to rain fire and brimstone on him but don't want to end up spending more money that could be reserved for Norton!! LOL.

Removing blanking

Blanking on frame

Painted and waxed

My attempt at removing paint with citrus strip. Needless to say it did'nt work out too good! LOL
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby lcrken » Mon Sep 05, 2016 12:14 pm

I've been using Citrus Strip to remove paint from some wheels, and it seems to really need to sit for at least 30 minutes to do it's work. It also requires multiple applications. Not nearly as effective as the old methylene chloride based strippers.

Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2795
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Mon Sep 05, 2016 12:28 pm

I let it sit for a while, over 30 minutes and would barely strip off the frame and some parts. Was able to strip the kick stand and battery box but was about all. Was easier to let these guys blast and PC, took me forever to find someone in my area to do this for me. EPA has shut a lot of these guys down or run them out of business. Any further blasting I can handle in my friends small blasting cabinet when we get to the transmission case, engine lower and any other pieces I decide that need blasting.
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby grandpaul » Mon Sep 05, 2016 2:41 pm

What's your plan for the engine? Any warm-up mods?
GrandPaul
author "Old Bikes"
too many bikes to list, including:
952 Prototype, MkIII Interstate, Combat Dunstall, Triton
User avatar
Access Norton VIP Paying Member
grandpaul
VIP MEMBER
Posts: 9620
View Photo Album - Images: 30
Joined: Tue Jan 15, 2008 1:11 pm
Location: Laredo (south) Texas

Re: Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Mon Sep 05, 2016 7:21 pm

Not sure on engine yet. Want a fresh rebuild and see what I'm working with. Will be a few mods like crankcase breather and oil weyr mod. Man objective is to refresh bike and do the modifications to make it more daily driver. Not a big speed demon! Lol
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby APRRSV » Tue Sep 06, 2016 1:36 am

Hi Warpedscout,
You mentioned blanking templates from Old Britts. Can you elaborate? I've been to the website and can't find anything.

Thanks,
Ed

APRRSV
Posts: 191
Joined: Sun Jun 26, 2016 6:47 pm
Location: Northern Virginia

Re: Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Tue Sep 06, 2016 5:47 am

Hey Ed,

It is found in the technical articles on the Old Britts site:

http://www.oldbritts.com/powder_coating.html

I went in and printed each article as a PDF on my computer so I will always have them.
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby APRRSV » Tue Sep 06, 2016 6:32 am

Thanks much for the quick reply.

APRRSV
Posts: 191
Joined: Sun Jun 26, 2016 6:47 pm
Location: Northern Virginia

Re: Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Thu Sep 15, 2016 2:55 pm

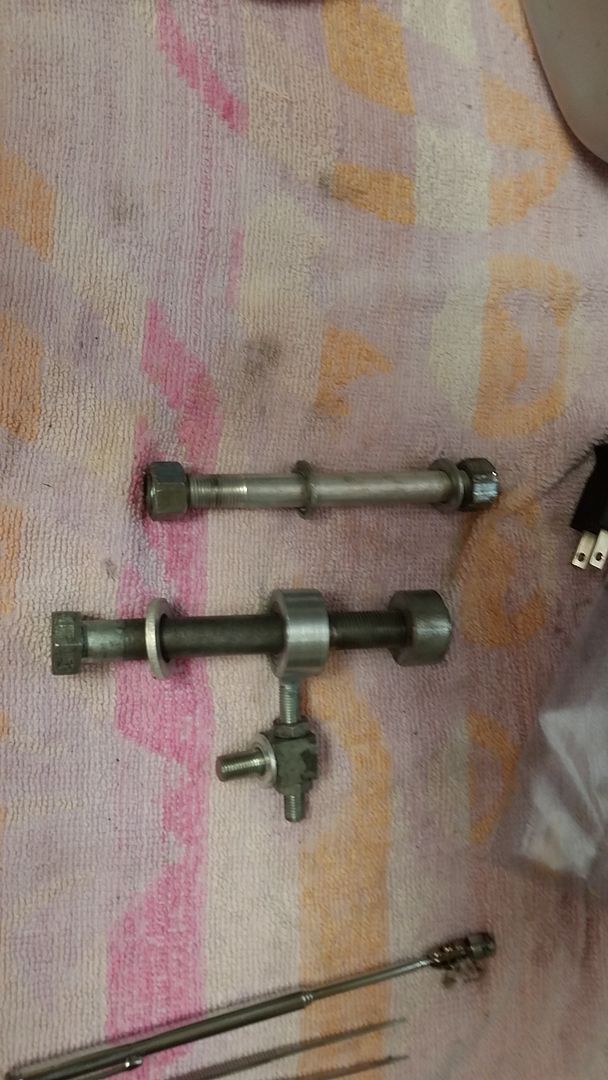

Havent had much time lately. Had to fire pool installer and looking for new one. I pulled everything out a few days ago so I could put hands on everything and try to get it in a more organized mess. Been pulling out all the bolts and pieces that I haven't cleaned yet to feel like I'm making a little progress.

Roll call:

Bits and pieces

Been keeping the head and barrel sprayed down to unstick some nuts and such. What is the trick to get the head to let loose?
It is a RH10.


Working toward getting over to my friends to weld crack in trans case so I can blast and paint it. Rebuild kit is ready to go.
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby gortnipper » Thu Sep 15, 2016 3:06 pm

There are three nuts that secure the head from the underneath - one on each barrel front (7, 8), and one between the barrels at the rear (2). You will need to grind down the sides of a box end wrench to get it in there on the rear one.

Access Norton VIP Paying Member
gortnipper
VIP MEMBER
Posts: 1221
View Photo Album - Images: 5
Joined: Mon Nov 11, 2013 5:42 pm
Location: Auckland, NZ

Re: Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Thu Sep 15, 2016 3:36 pm

Got the bolts and nuts off, think it is just stuck. Have some Aero Kroil sprayed in where the head mates.
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby gortnipper » Thu Sep 15, 2016 3:46 pm

OK, cool. Apply heat?
Access Norton VIP Paying Member
gortnipper
VIP MEMBER
Posts: 1221
View Photo Album - Images: 5
Joined: Mon Nov 11, 2013 5:42 pm
Location: Auckland, NZ

Re: Warpedscout 74 850 Commando Rebuild

Postby warpedscout » Thu Sep 15, 2016 4:22 pm

I have some but not paid it a whole lot of attention. Mainly fishing for do's and dont's. Scared of breaking a fin! Lol
User avatar
Access Norton VIP Paying Member
warpedscout
VIP MEMBER
Posts: 232
View Photo Album - Images: 3
Joined: Sat Feb 12, 2011 7:14 pm
Location: Mississippi

Re: Warpedscout 74 850 Commando Rebuild

Postby Danno » Thu Sep 15, 2016 10:57 pm

Whack it with a large rubber mallet or use a large ball-peen hammer and a wood block to spread the load over all the fins so you don't break any. Best spot is right at an exhaust port. This should break loose any sealer that was used on the head gasket. If the crank is rotated so one of the exhaust valves is open, the valve spring pressure will help push the head up off the cylinder.
Access Norton VIP Paying Member
Danno
VIP MEMBER
Posts: 2279
Joined: Sun Feb 07, 2010 10:42 am
Location: Southwestern Illinois

Re: Warpedscout 74 850 Commando Rebuild

Postby L.A.B. » Fri Sep 16, 2016 2:24 am

User avatar
Access Norton VIP Paying Member
L.A.B.
VIP MEMBER
Posts: 12265
View Photo Album - Images: 5
Joined: Sat Nov 20, 2004 3:41 pm
Location: Norfolk, UK
