Postby serbatac » Thu Feb 16, 2017 11:12 am

Hello everybody,
I m french,
I just bought a customized norton,

I am beginner in the nortons,

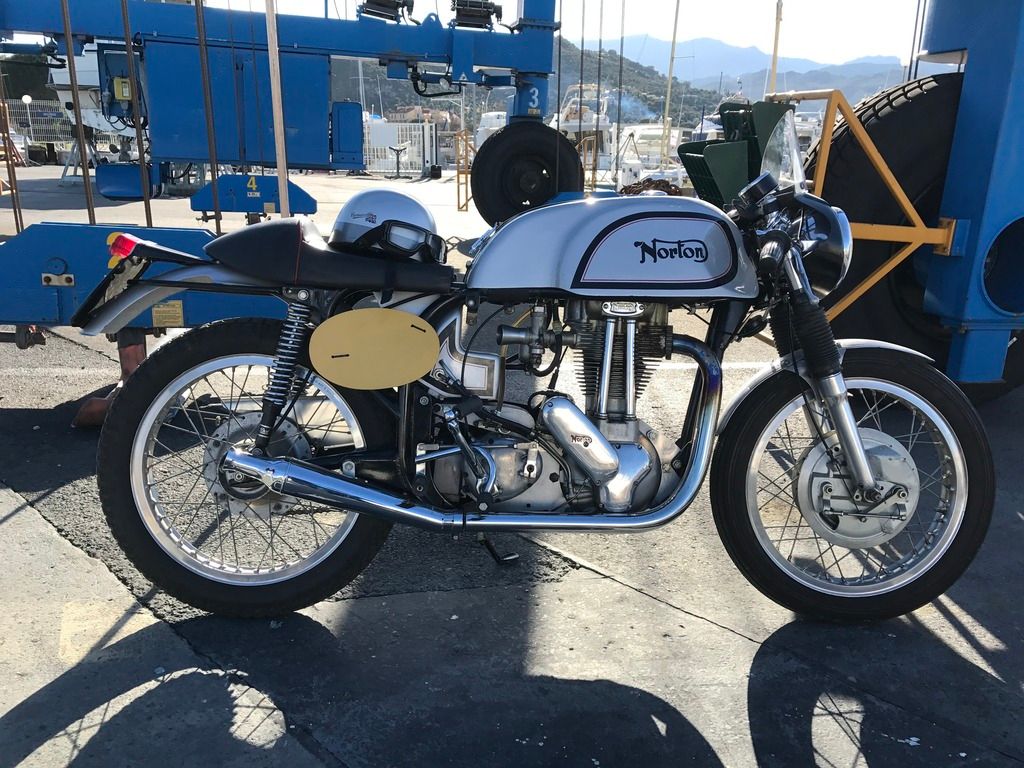

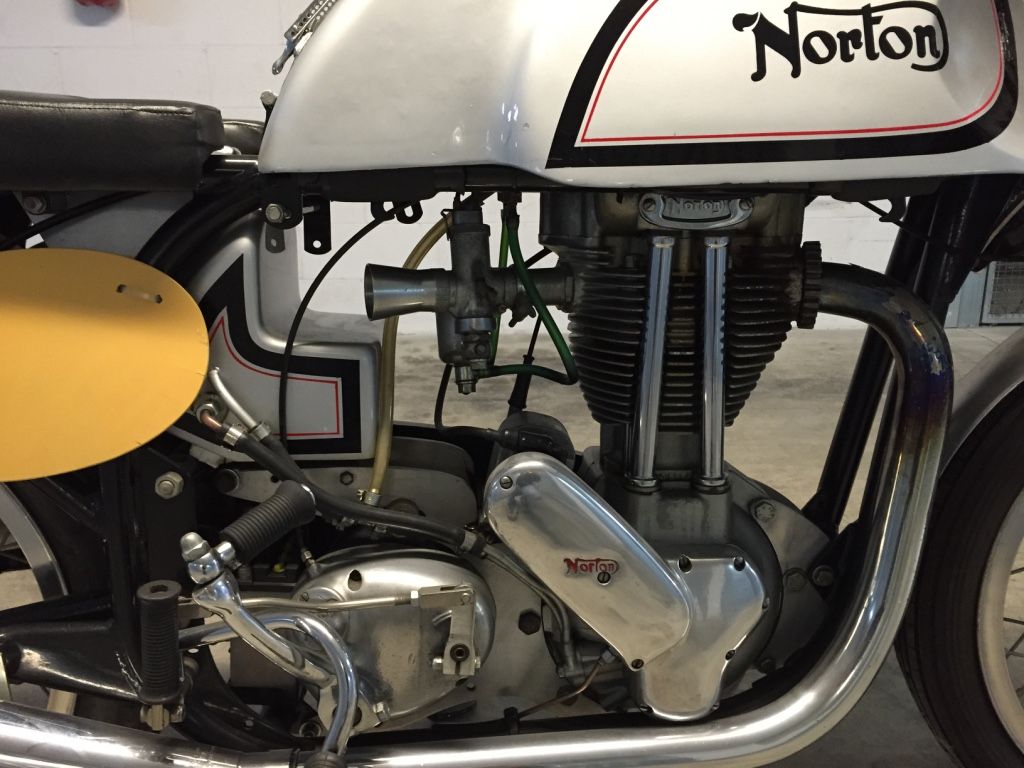

What is the type of this engine?
What is the model of frame? Slimline or wideline?






Thank you for your help
Seb.

serbatac
Posts: 5
Joined: Wed Feb 15, 2017 12:49 pm

Re: Norton, which model? Identification!!

Postby Mike B » Thu Feb 16, 2017 12:41 pm

Pretty bike. Slimline featherbed frame, engine looks like an ES2, gearbox is later AMC type.

Mike B.

Mike B
Posts: 95
Joined: Fri Oct 16, 2015 6:37 pm

Re: Norton, which model? Identification!!

Postby triumph2 » Thu Feb 16, 2017 4:13 pm

And a late '60's Triumph front brake.
'73 Norton Commando 850
'69 Norton Mercury 650
'65 Norton Atlas 750
'63 Matchless G80CS 500
'05 Triumph Rocket III
User avatar

triumph2
Posts: 192
Joined: Wed Aug 13, 2008 8:19 am
Location: Keswick Ont. Canada

Re: Norton, which model? Identification!!

Postby Rohan » Thu Feb 16, 2017 7:31 pm

And a BSA/Triumph conical rear hub, adapted to fit a Norton.
Very nice example of a featherbed Norton ES2 cafe racer,
with a Manx style tank and oil tank.
Very tidy indeed.

Rohan
Inactive
Posts: 8217
Joined: Thu Aug 26, 2010 5:30 pm

Re: Norton, which model? Identification!!

Postby gtsun » Thu Feb 16, 2017 7:52 pm

Wow that is one of my dream Norton combos!! Slimline featherbed with any effort to moto slimline featherbed with a ES2 motor? Very very very very nice.
Access Norton VIP Paying Member
gtsun
VIP MEMBER
Posts: 1613
Joined: Mon Sep 21, 2009 12:58 am
Location: Fullerton, CA. USA.

Re: Norton, which model? Identification!!

Postby serbatac » Thu Feb 16, 2017 11:26 pm

thanks for these informations,
How do you know it's a slimline frame?

serbatac
Posts: 5
Joined: Wed Feb 15, 2017 12:49 pm

Re: Norton, which model? Identification!!

Postby Rohan » Thu Feb 16, 2017 11:39 pm

serbatac wrote:thanks for these informations,
How do you know it's a slimline frame?


The curvature of the frame tubes around near the rear shocks.
The wideline had absolutely straight tubes there.

If you look at it from above, at the front of the seat the tubes should curve inwards a bit
- to give some space for your knees.
The wideline didn't give any space for your knees !

You might need the seat and tank off to see this, they can hide it to some extent.

Rohan
Inactive
Posts: 8217
Joined: Thu Aug 26, 2010 5:30 pm

Re: Norton, which model? Identification!!

Postby Rohan » Thu Feb 16, 2017 11:51 pm

Previous pic here of a slimline.
Note how the frame is narrower (slimmer) just in front of the seat area.

There are a few slightly different versions, to suit various models and years,
so yours may not be perfectly identical to this...


Rohan
Inactive
Posts: 8217
Joined: Thu Aug 26, 2010 5:30 pm

Re: Norton, which model? Identification!!

Postby serbatac » Fri Feb 17, 2017 2:23 am

Ok, I understood the difference (slimline/wideline)
The bike is not perfectly restored but it gives it charm
It works well but not easy to regulate

more pics:


The gaz tank is made of fiberglass,
I want to replace it with aluminium tank,
Where can i find the good model tank for my fram ?

thanks you for your help!
seb

serbatac
Posts: 5
Joined: Wed Feb 15, 2017 12:49 pm

Re: Norton, which model? Identification!!

Postby serbatac » Fri Feb 24, 2017 2:27 am

Who can tell me what year is the engine and what power has it?

thanks
sebastien

serbatac
Posts: 5
Joined: Wed Feb 15, 2017 12:49 pm

Re: Norton, which model? Identification!!

Postby Triton Thrasher » Fri Feb 24, 2017 2:33 am

serbatac wrote:Who can tell me what year is the engine and what power has it?

thanks
sebastien


Tell us the engine number.


It's a handsome bike. I don't like the slightly chopper-ish silencer though.
User avatar

Triton Thrasher
Posts: 1037
Joined: Tue Feb 10, 2009 7:27 am
Location: Thurso, Scotland

Re: Norton, which model? Identification!!

Postby serbatac » Fri Feb 24, 2017 9:59 am

Engine : 41843 79x100 HH843

Frame : R88927

serbatac
Posts: 5
Joined: Wed Feb 15, 2017 12:49 pm

Re: Norton, which model? Identification!!

Postby ntst8 » Fri Feb 24, 2017 12:41 pm

serbatac wrote:Engine : 41843 79x100 HH843, Frame : R88927


Frame - R = model year 1960, 88927 is in the range for 1960 as well.
If it is a roadgoing frame then it would be off a twin, slimline singles only started in 1961. Telltale for that is the top tube in front of the tappet adjuster cover in singles was crushed in by the factory to give clearance to remove that cover, for twins the tube remained round.
Engine - 41843 would be a late 1951 model. 79 x 100 = standard bore x stroke for a 500, ES2. From memory around 25hp if all is set up well. Allegedly capable of 80mph in standard trim - my wideline ES2 will sit happily on 60mph all day with some in reserve for overtaking.
Iain B
'44 WD16H
'60 ES2
'73 850 Interstate
'12 Yamaha XT660Z
User avatar
Access Norton VIP Paying Member
ntst8
VIP MEMBER
Posts: 654
View Photo Album - Images: 6
Joined: Sat Feb 14, 2004 1:17 pm
Location: New Zealand

Re: Norton, which model? Identification!!

Postby Rohan » Fri Feb 24, 2017 3:23 pm

ntst8 wrote:Engine - 41843 would be a late 1951 model. 79 x 100 = standard bore x stroke for a 500, ES2. From memory around 25hp if all is set up well. Allegedly capable of 80mph in standard trim


A 1951 ES2 would have had an iron head, and fairly low compression.
And would be surprised if it gave as much as 25 hp - thats a later motor number ?
Can't quite tell if your head is iron painted silver, or a later alloy head ?

Rohan
Inactive
Posts: 8217
Joined: Thu Aug 26, 2010 5:30 pm

Re: Norton, which model? Identification!!

Postby Triton Thrasher » Sat Feb 25, 2017 2:57 am

serbatac wrote:Image



That's the air slide ("choke") fully on for cold starting, in case there's any doubt.
User avatar

Triton Thrasher
Posts: 1037
Joined: Tue Feb 10, 2009 7:27 am
Location: Thurso, Scotland
