Postby lcrken » Sat Jan 14, 2017 7:48 pm

Making a little more progress. This is the inner primary plate. It's 1/8" 5052 alloy, and my first experience at aircraft style riveting. Still have to make the outer cover. I'm debating whether to try fabbing it up out of alloy, or make a plug, pull a mold off it, and make a glass fiber, or maybe carbon fiber, cover. Always decisions.


Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2802
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: MK3 Restomod

Postby grandpaul » Sat Jan 14, 2017 8:49 pm


2.5 oz.

CF
GrandPaul
author "Old Bikes"
too many bikes to list, including:
952 Prototype, MkIII Interstate, Combat Dunstall, Triton
User avatar
Access Norton VIP Paying Member
grandpaul
VIP MEMBER
Posts: 9667
View Photo Album - Images: 30
Joined: Tue Jan 15, 2008 1:11 pm
Location: Laredo (south) Texas

Re: MK3 Restomod

Postby Fast Eddie » Sat Jan 14, 2017 9:55 pm

lcrken wrote:Making a little more progress. This is the inner primary plate. It's 1/8" 5052 alloy, and my first experience at aircraft style riveting. Still have to make the outer cover. I'm debating whether to try fabbing it up out of alloy, or make a plug, pull a mold off it, and make a glass fiber, or maybe carbon fiber, cover. Always decisions.


Ken


Ken, you know there's only one right way to do this...

Make a CF cover!

In fact make more than one Ken and sell one to me please !!
User avatar
Access Norton VIP Paying Member
Fast Eddie
VIP MEMBER
Posts: 3635
Joined: Fri Oct 04, 2013 12:48 am
Location: Oxford, England

Re: MK3 Restomod

Postby lcrken » Tue Feb 14, 2017 7:05 pm

Got sidelined a bit by back injury, but back to work again. Finally got the wheels painted.

This is a bare wheel that's been cleaned and prepped with brush-on Iridite conversion coating, with the Rustoleum gold paint beside it.


And this is my high quality paint studio, with the front wheel in process.


And this is the painted pair. After they cure for a few days, I'll do a 2-part clear coat, and that's it.


Time to order some tires next. The wheels are both 18", with 3.5" rear and 2.5" front, so I have some options.

Other than the wheels, I'm working on the plug for making a mold for the primary cover.

Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2802
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: MK3 Restomod

Postby grandpaul » Wed Feb 15, 2017 7:07 am

Coming along nicely.
GrandPaul
author "Old Bikes"
too many bikes to list, including:
952 Prototype, MkIII Interstate, Combat Dunstall, Triton
User avatar
Access Norton VIP Paying Member
grandpaul
VIP MEMBER
Posts: 9667
View Photo Album - Images: 30
Joined: Tue Jan 15, 2008 1:11 pm
Location: Laredo (south) Texas

Re: MK3 Restomod

Postby cjandme » Wed Feb 15, 2017 3:49 pm

lcrken wrote:Got sidelined a bit by back injury, but back to work again......Other than the wheels, I'm working on the plug for making a mold for the primary cover.Ken

Well okay then Ken, I guess you made your decision & so you're gonna go fo it, :shock: and make the composite primary cover / covers? :D
Norton Fan by Bro w/'75MKIII
User avatar

cjandme
Posts: 1650
Joined: Sat Feb 05, 2011 3:27 pm
Location: Misawa, Japan

Re: MK3 Restomod

Postby lcrken » Wed Feb 15, 2017 8:11 pm

Yep, CF it is.

Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2802
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: MK3 Restomod

Postby Scout63 » Sun Feb 19, 2017 2:56 pm

+1. Gorgeous. Interesting. Did I say Gorgeous?
Ben Zehnder
Orleans, MA
1971 BMW R75/5
1972 Norton Interstate - project bike
1978 Yamaha SR500E
1980 Honda XL500S

Scout63
Posts: 56
Joined: Thu Nov 24, 2016 1:27 pm
Location: Orleans (Cape Cod), Massachusetts USA

Re: MK3 Restomod

Postby lcrken » Wed Mar 08, 2017 12:52 pm

New tires mounted to wheels. Finest kind Shinkos in 100/90-18 and 130/90-18. I've used the same style Shinkos on several other bikes, and am amazed at how well they stick. And they last, too. I decided to go ahead and run them tubeless, even though the rims are meant for tubes, so they are now sitting for a day to be sure they will hold pressure, before balancing and mounting disks and such. If they don't hold air well enough, I'll use tubes.


I also have the oil system ready to make hoses and install. Sharp eyed listers might notice that the hose ends are not new. I'm doing my best to uses up old race bits wherever I can instead of buying new.


Still working on the primary cover, but it will take a while. Worst part is making a good plug to pull a mold from.

Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2802
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: MK3 Restomod

Postby grandpaul » Wed Mar 08, 2017 1:04 pm

Love the aircraft fittings, properly done.
GrandPaul
author "Old Bikes"
too many bikes to list, including:
952 Prototype, MkIII Interstate, Combat Dunstall, Triton
User avatar
Access Norton VIP Paying Member
grandpaul
VIP MEMBER
Posts: 9667
View Photo Album - Images: 30
Joined: Tue Jan 15, 2008 1:11 pm
Location: Laredo (south) Texas

Re: MK3 Restomod

Postby lcrken » Thu Apr 13, 2017 7:49 pm

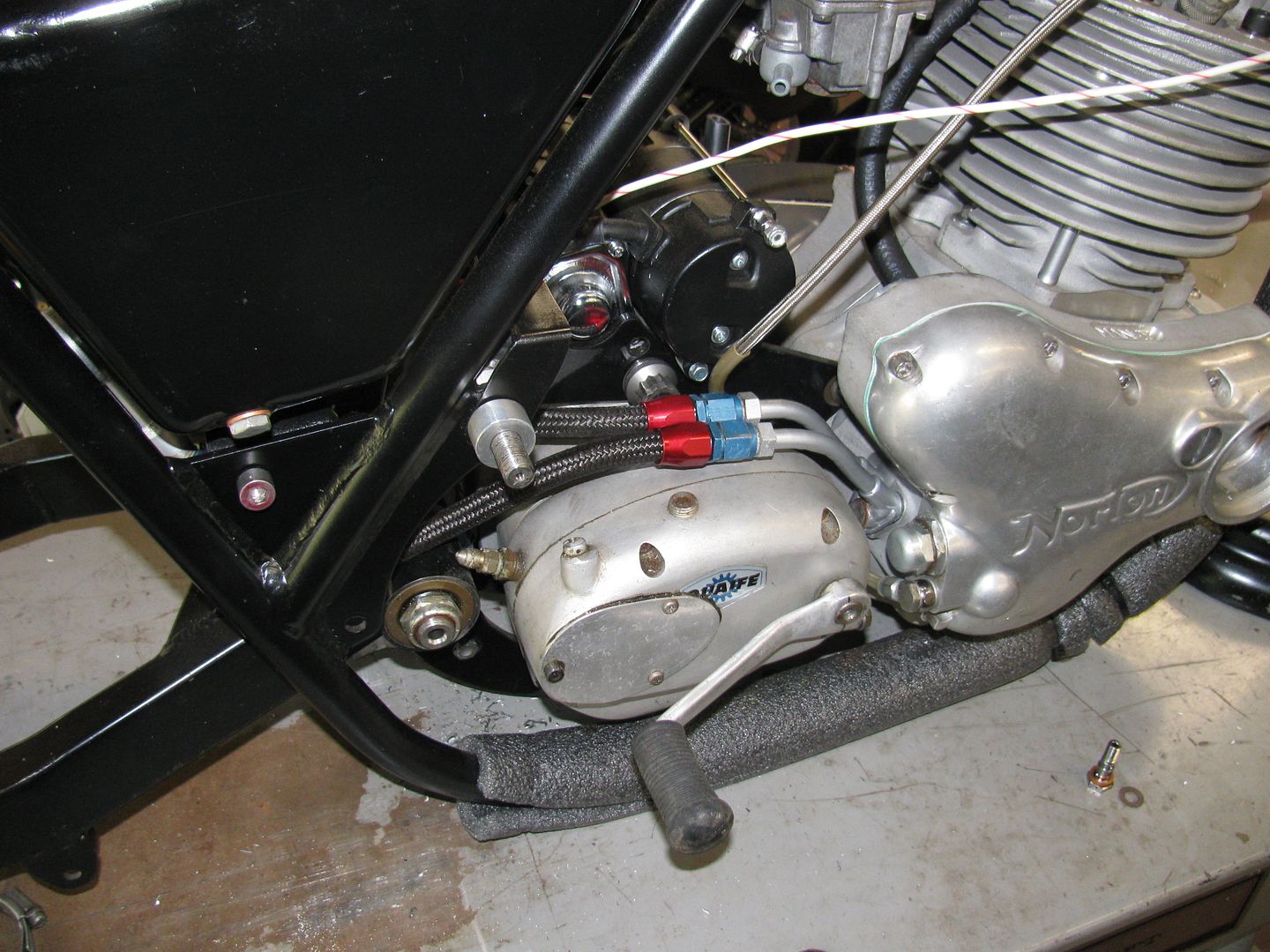

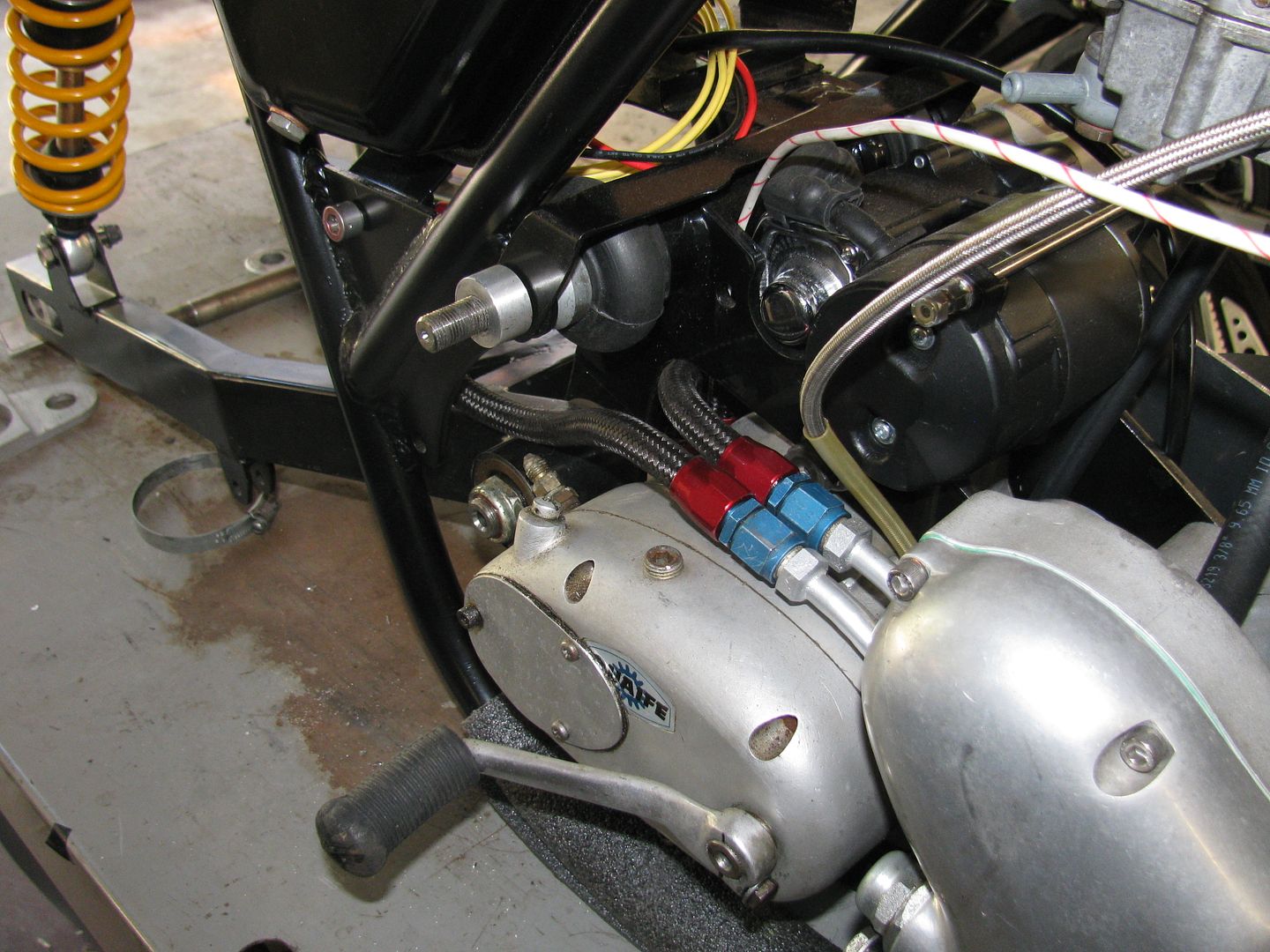

It's been a while, but I finally have a little more progress. These are pictures of the finished oil lines. I decided to go with the newer hose from Earl's, instead of the stock I already have. The newer stuff is still the same steel braid hose, but now has a black braided fabric protective layer. The 90° fitting I needed was on backorder for a long time, but finally came in, and allowed me to finish the lines.




I've also managed to finish the rear brake rotor adaper, and am just waiting for some flat head countersunk titanium fasteners to come in to finish it.

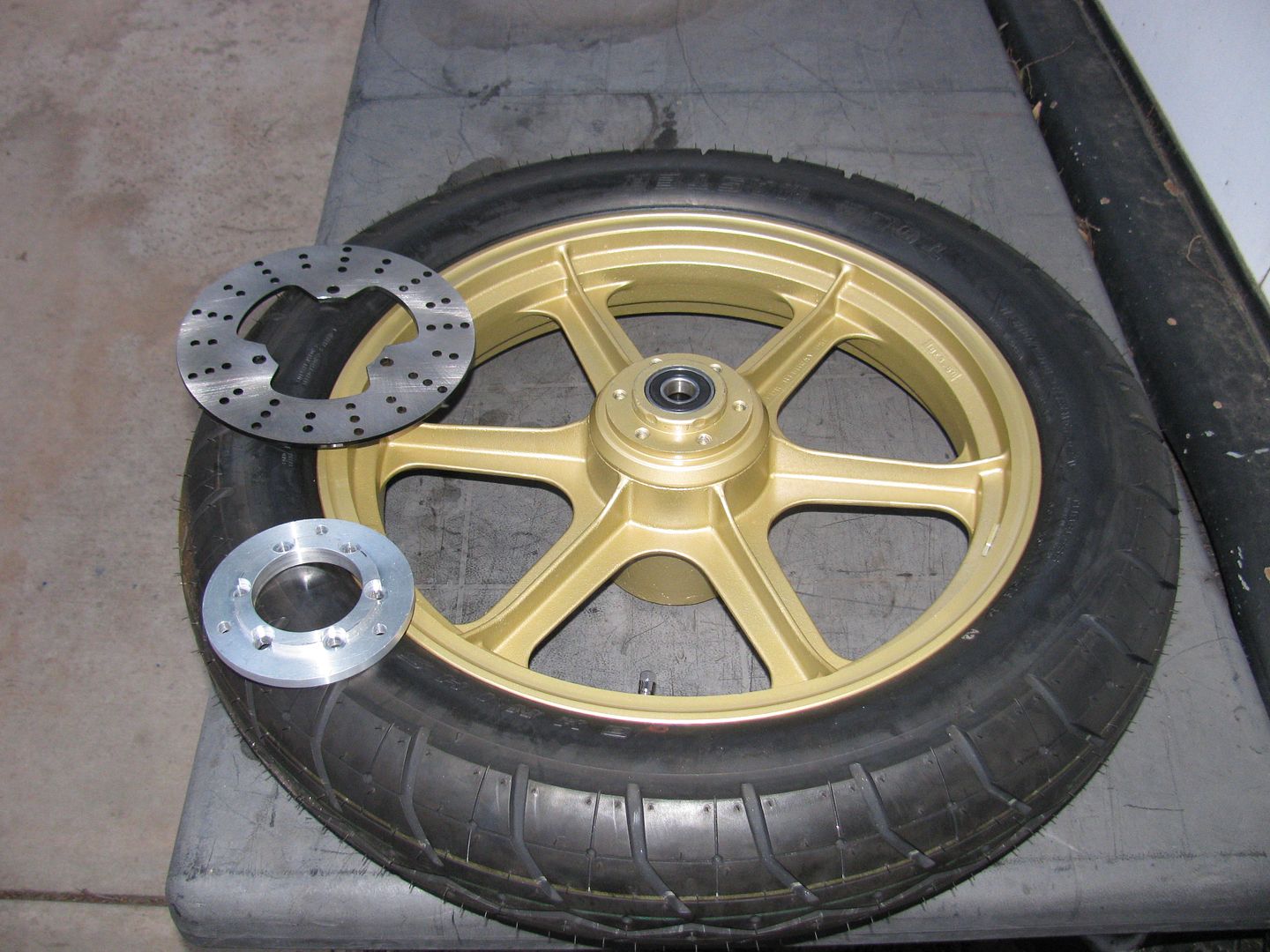

This is the rear wheel with rotor and adapter. The rotor is from a TZ250 race bike.

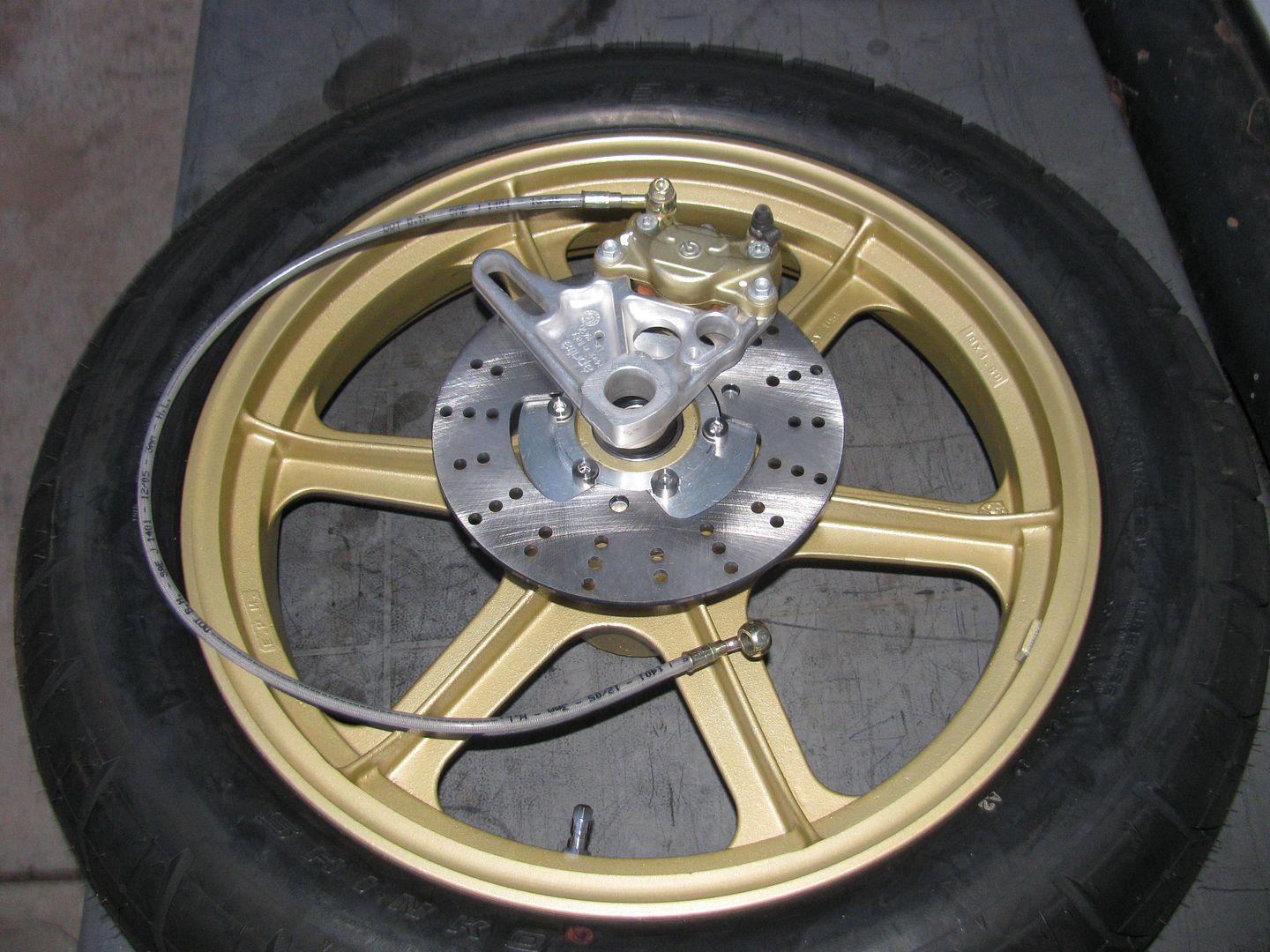

This is the wheel and rotor with the Brembo caliper I'm using. It's from an Aprillia, which has a slightly larger disk, so I won't be able to use the bracket in the picture, but will have to fab one to fit. The style bracket I use is pretty simple, so that part shouldn't take too long.


I've been working on the fork yokes, so I can get the bike up on wheels. It was going well until I had a senior moment and bored the fork holes too large, so now I'm waiting for some more 6061 plate to arrive so I can start over. It's a bitch getting old.

I haven't forgotten about the primary cover, but decided I wanted to see the bike with wheels and such attached first.

Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2802
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: MK3 Restomod

Postby Danno » Fri Apr 14, 2017 8:56 am

Hey, it's all gotta get done. At least you're making headway. I'm at an impasse until the first of May or so.

Danno
Posts: 2283
Joined: Sun Feb 07, 2010 10:42 am
Location: Southwestern Illinois

Re: MK3 Restomod

Postby lcrken » Wed May 03, 2017 10:35 am

Time for another update. I've been working on getting the for yokes done. This is a shot of the lower in the mill with the basic holes finished.


And this pic shows the upper and lower with the fork and spindle holes finished. Also shows the location of the bolts holding the two bits together. It's made for 52 mm offset with no spacers, and can be adjusted to a max of around 68 mm if needed. 52 mm offset gives a 97.5 mm trail with my current choice of tires and chassis dimensions,which is just a bit more than a stock Commando. I think that should be pretty good as is, but if the steering is a bit too slow, I can add spacers to get it to suit me after the bike is running.


Now it's time to get the rotary table out and try to make them lighter and prettier, as well as machining for the pinch bolts.

Ken
User avatar
Access Norton VIP Paying Member
lcrken
VIP MEMBER
Posts: 2802
Joined: Sun Mar 15, 2009 8:08 pm
Location: Southern California

Re: MK3 Restomod

Postby grandpaul » Wed May 03, 2017 5:43 pm

That's some nice work.

One of these days I'll get a lathe and mill...
GrandPaul
author "Old Bikes"
too many bikes to list, including:
952 Prototype, MkIII Interstate, Combat Dunstall, Triton
User avatar
Access Norton VIP Paying Member
grandpaul
VIP MEMBER
Posts: 9667
View Photo Album - Images: 30
Joined: Tue Jan 15, 2008 1:11 pm
Location: Laredo (south) Texas

Re: MK3 Restomod

Postby Tin Man » Wed May 03, 2017 7:24 pm

Well, I'm jealous! Really beautiful work.
User avatar
Access Norton VIP Paying Member
Tin Man
VIP MEMBER
Posts: 95
View Photo Album - Images: 0
Joined: Mon Oct 10, 2016 8:31 pm
Location: Ashland, VA
