Gearbox mainshaft "circlip" ???

Postby kevbo82 » Wed Aug 01, 2012 11:56 am

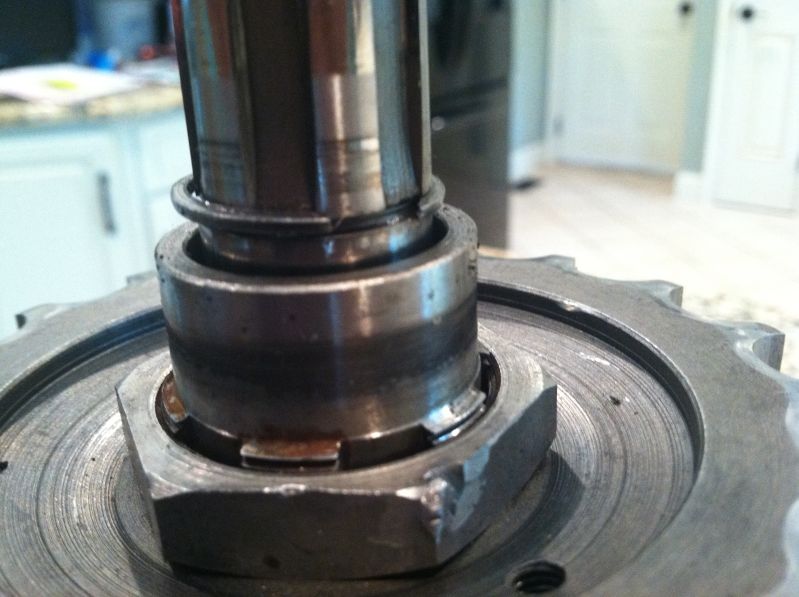

The mainshaft on my gear box has, for lack of a better term, a circlip on it right where it comes through the sleeve gear. I don't see this part on old brits parts list, or on any members photos i see on here of gear box tear downs. whats the deal with it? Also seems rather loose on there, like i could pop it off with a flat head and a little pressure.
User avatar
Access Norton VIP Paying Member
kevbo82
VIP MEMBER
Posts: 519
Joined: Mon Mar 12, 2012 9:18 am
Location: Bucks County PA

Re: Gearbox mainshaft "circlip" ???

Postby L.A.B. » Wed Aug 01, 2012 12:17 pm

kevbo82 wrote:I don't see this part on old brits parts list, or on any members photos i see on here of gear box tear downs. whats the deal with it?


http://www.oldbritts.com/nor_comm_73_10.html
53 060752 Circlip, Clutch Location


The circlip and the cupped washer locate the clutch assembly at the rear (and is the part which often fails if the clutch nut is tightened to the manual's 70 ft.lb. recommendation).

Try searching: "mainshaft clutch circlip"
User avatar
Access Norton VIP Paying Member
L.A.B.
VIP MEMBER
Posts: 9344
View Photo Album - Images: 5
Joined: Sat Nov 20, 2004 3:41 pm
Location: Norfolk, UK

Re: Gearbox mainshaft "circlip" ???

Postby Dances with Shrapnel » Wed Aug 01, 2012 12:22 pm

From the looks of it in the photo you should get a new replacement circlip. This is typical.
Access Norton VIP Paying Member
Dances with Shrapnel
VIP MEMBER
Posts: 1535
Joined: Fri Jul 08, 2011 1:06 am

Re: Gearbox mainshaft "circlip" ???

Postby kevbo82 » Wed Aug 01, 2012 12:23 pm

ahhh i was looking on the parts list for the gear box for it. Much thanks LAB, i wanted to replace it but couldn't find it on there!
User avatar
Access Norton VIP Paying Member
kevbo82
VIP MEMBER
Posts: 519
Joined: Mon Mar 12, 2012 9:18 am
Location: Bucks County PA

Re: Gearbox mainshaft "circlip" ???

Postby DogT » Wed Aug 01, 2012 1:06 pm

I kept this note from a while ago, forget who.....The circlip behind the clutch locating washer should be replaced with #15 shown here. http://www.oldbritts.com/1975_g12.html

Dave
User avatar
Access Norton VIP Paying Member
DogT
VIP MEMBER
Posts: 6044
Joined: Tue Jan 20, 2009 8:03 pm
Location: Hume, VA

Re: Gearbox mainshaft "circlip" ???

Postby pete.v » Wed Aug 01, 2012 1:23 pm

DogT wrote:I kept this note from a while ago, forget who.....The circlip behind the clutch locating washer should be replaced with #15 shown here. http://www.oldbritts.com/1975_g12.html

Dave

+1 Burr side toward the gearbox. 06-8072

Good judgement comes from experience,
experience come from poor judgement.
User avatar
Access Norton VIP Paying Member
pete.v
VIP MEMBER
Posts: 4344
View Photo Album - Images: 0
Joined: Sat Oct 31, 2009 4:24 pm

Re: Gearbox mainshaft "circlip" ???

Postby kevbo82 » Wed Aug 01, 2012 1:30 pm

whats the reasoning behind using that one? is the correct way to install to slide it down the shaft until it locks in rather than trying to open it around the shaft? if ya get my drift
User avatar
Access Norton VIP Paying Member
kevbo82
VIP MEMBER
Posts: 519
Joined: Mon Mar 12, 2012 9:18 am
Location: Bucks County PA

Re: Gearbox mainshaft "circlip" ???

Postby pete.v » Wed Aug 01, 2012 2:08 pm

kevbo82 wrote:whats the reasoning behind using that one? is the correct way to install to slide it down the shaft until it locks in rather than trying to open it around the shaft? if ya get my drift

This is a problem area and when you apply 70ft lb (as recomended)to the clutch center, the stress under load has and will shear the oem clip. Many are reducing to 40 ft lb's at the clutch center nut to remedy this issue.

The 06-8072 clip is more robust and simply does a better job. It is tougher to get on, but that is the nature of the beast. And yes, run it down the shaft.
Good judgement comes from experience,
experience come from poor judgement.
User avatar
Access Norton VIP Paying Member
pete.v
VIP MEMBER
Posts: 4344
View Photo Album - Images: 0
Joined: Sat Oct 31, 2009 4:24 pm

Re: Gearbox mainshaft "circlip" ???

Postby Guido » Wed Aug 01, 2012 8:40 pm

If you are going to order one, order 3. Their cheap enough.
You can just slid it down or use a snap ring plier. Harbor freight sell a set for about $3 or $4
'73 850 COMMANDO
'74 850 COMMANDO
"Restored" the '74 and "restoring" the '73 this year.
I have 2 parts to buy. Now, if I can only find $5000 lying about.
I live in Woodland, Cal.
User avatar

Guido
Posts: 615
Joined: Mon May 23, 2011 9:14 pm
Location: WOODLAND, CA. USA


Return to Norton Commando Classic Motorcycles
