Finally got one

Finally got one

Postby Rocker » Sun May 14, 2017 9:35 am

Hi all

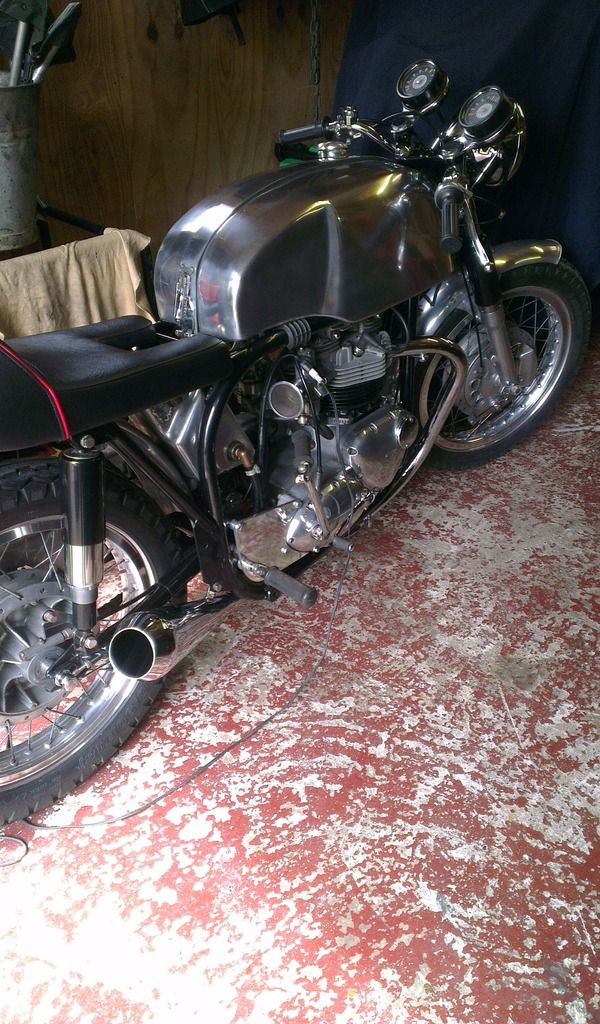

I'm new here finally got myself a Triton :D


Will do some better pictures on a sunny day later 8)

As with everything you buy there's always problems, most niggly and I've sorted them,
but the front mudguard was rubbing on the tyre so took it off to investigate and noticed she's got odd fork legs on :roll: :roll: :evil: didn't notice when I made the purchase :oops:
So has anyone got a leg kicking about (no pun intended)


I have type B on the brake side (right) and type C pinch bolt side (left) I would prefer to change the pinch bolt side for a type B or change them both for the type D.

Many thanks in advance I'm based near Sudbury in Suffolk

Rocker
Posts: 11
Joined: Sat May 13, 2017 10:53 am

Re: Finally got one

Postby Triton Thrasher » Sun May 14, 2017 11:33 am

The tea-strainer gauze on the bellmouth looks restrictive.

Could lead to gross richness at full throttle at high rpm.
User avatar

Triton Thrasher
Posts: 1007
Joined: Tue Feb 10, 2009 7:27 am
Location: Thurso, Scotland

Re: Finally got one

Postby Rocker » Sun May 14, 2017 12:05 pm

Triton Thrasher wrote:The tea-strainer gauze on the bellmouth looks restrictive.

Could lead to gross richness at full throttle at high rpm.


Cheers I will bear it in mind and check :D

Rocker
Posts: 11
Joined: Sat May 13, 2017 10:53 am

Re: Finally got one

Postby Bernhard » Mon May 15, 2017 3:20 am

Rocker wrote:Hi all
I'm new here finally got myself a Triton :D

Will do some better pictures on a sunny day later 8)
As with everything you buy there's always problems, most niggly and I've sorted them,
but the front mudguard was rubbing on the tyre so took it off to investigate and noticed she's got odd fork legs on :roll: :roll: :evil: didn't notice when I made the purchase :oops:
So has anyone got a leg kicking about (no pun intended)

I have type B on the brake side (right) and type C pinch bolt side (left) I would prefer to change the pinch bolt side for a type B or change them both for the type D.
Many thanks in advance I'm based near Sudbury in Suffolk

You should have only ONE pinch bolt fork leg on the front forks.

Bernhard
Posts: 2361
Joined: Wed Apr 20, 2011 5:01 am

Re: Finally got one

Postby Rocker » Mon May 15, 2017 4:38 am

Bernhard wrote:
Rocker wrote:Hi all
I'm new here finally got myself a Triton :D

Will do some better pictures on a sunny day later 8)
As with everything you buy there's always problems, most niggly and I've sorted them,
but the front mudguard was rubbing on the tyre so took it off to investigate and noticed she's got odd fork legs on :roll: :roll: :evil: didn't notice when I made the purchase :oops:
So has anyone got a leg kicking about (no pun intended)

I have type B on the brake side (right) and type C pinch bolt side (left) I would prefer to change the pinch bolt side for a type B or change them both for the type D.
Many thanks in advance I'm based near Sudbury in Suffolk

You should have only ONE pinch bolt fork leg on the front forks.

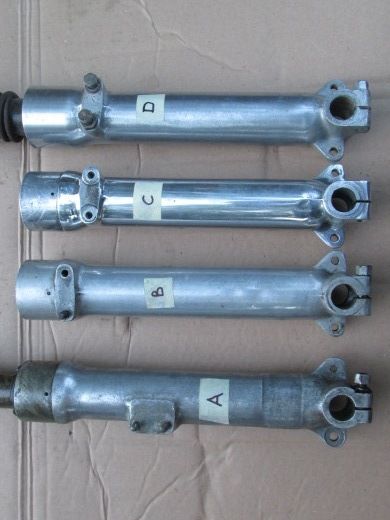

Hi Bernhard thanks for the reply but just to clear up any confusion the picture is from the internet showing the different types, they are not mine.
I was using the picture to show the two sliders I have fitted :mrgreen:

Rocker
Posts: 11
Joined: Sat May 13, 2017 10:53 am

Re: Finally got one

Postby Triton Thrasher » Mon May 15, 2017 4:46 am

Bernhard wrote:You should have only ONE pinch bolt fork leg on the front forks.



Some recent pattern sliders have a pinch bolt on both sides.
Last edited by Triton Thrasher on Mon May 15, 2017 10:57 am, edited 1 time in total.
User avatar

Triton Thrasher
Posts: 1007
Joined: Tue Feb 10, 2009 7:27 am
Location: Thurso, Scotland

Re: Finally got one

Postby chris plant » Mon May 15, 2017 10:38 am

if using 2 pinch bolt sliders what is anchoring the brake plate, chris
the older i get the faster i was

chris plant
Posts: 459
Joined: Thu Nov 06, 2008 3:01 pm
Location: uk

Re: Finally got one

Postby Triton Thrasher » Mon May 15, 2017 11:08 am

chris plant wrote:if using 2 pinch bolt sliders what is anchoring the brake plate, chris


Yes I meant sliders. Anyway:


User avatar

Triton Thrasher
Posts: 1007
Joined: Tue Feb 10, 2009 7:27 am
Location: Thurso, Scotland

Re: Finally got one

Postby Triton Thrasher » Mon May 15, 2017 12:52 pm

Maybe "recent" pattern parts was the wrong thing to say.

I bought them in the early 1990s, from Les Emery's catalogue. They were in Norton packaging and full of swarf. At that time, I had to buy those and file the brake side slider to make room for the wheel of a 1957 99. It was something like they only had one sort of slider set to fit forks of different yoke width.

It was something like that, my memory isn't perfect.
User avatar

Triton Thrasher
Posts: 1007
Joined: Tue Feb 10, 2009 7:27 am
Location: Thurso, Scotland
