Tail light assembled and installed. It's like a weird jigsaw puzzle, nothing straightforward with the MkIII.

Ricks '75 MkIII Roadster resto/furb


Oil filter installed and piped in.

Ricks '75 MkIII Roadster resto/furb


Oil tank painted, installed & piped in.

Ricks '75 MkIII Roadster resto/furb

Carb cleaning - noticeable difference

Ricks '75 MkIII Roadster resto/furb


Carbs installed with new throttle cable & K&N dual-neck air filter

Ricks '75 MkIII Roadster resto/furb


Looking more and more like a bike, might be running by this weekend if all goes well and I don't get interrupted..

Ricks '75 MkIII Roadster resto/furb

It looks like there are no heat insulators between the head and intake manifolds? Is that intentional or maybe just an artifact of the photo?

Ron L said:

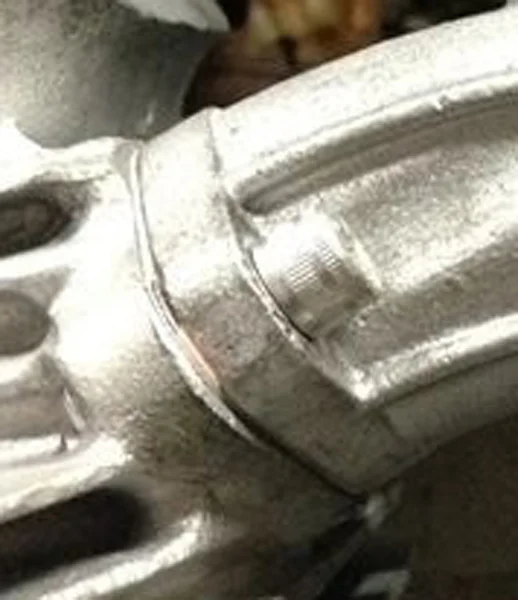

It looks like there are no heat insulators between the head and intake manifolds? Is that intentional or maybe just an artifact of the photo?

They look there to me. Dont see a washer on the cap screw tho. :wink:


Attachments

  • Ricks '75 MkIII Roadster resto/furb
    blow up.jpg
    124.1 KB · Views: 630
he should not be working nortons as i have seen other errors also on this one as with his other builds. he is good with polish and paint and that is about where it stops.

There just sitting there for a photo op. Filter still needs spacer rings, too.

I have the insulators and the washers. Just filling time till the clutch locating circlip arrives.

Didn't anyone notice the chain adjusters aren't on? My God, someone could get killed!

Circlip arrived, so I set the primary drive in place and gently snugged in the clutch basket.

Checking primary chain alignment - I used vice grips to gently clamp a section of alloy angle to one of the alternator housing studs with one face flat against top and bottom edges of the primary case near the drive sprocket, then measured the gap to the face of a primary chain plate.

Ricks '75 MkIII Roadster resto/furb


Next, I relocated the angle back to one of the chain adjuster studs and measured the same gap near the clutch basket. They were the same, using the shims that were previously installed. So, no worries.

Ricks '75 MkIII Roadster resto/furb


Primary drive and clutch center nipped in place.

Ricks '75 MkIII Roadster resto/furb

Cleaned up clutch plate stack ready to install

Ricks '75 MkIII Roadster resto/furb


Clutch, primary chain tensioner, electric starter drive gear, and alternator installed.

Ricks '75 MkIII Roadster resto/furb


Primary side done, apart from overhauling and installing the starter motor & outer cover with shifter gear.

Ricks '75 MkIII Roadster resto/furb

Transmission cover installed with new seal & gasket, kicker installed just after this photo was taken.

Ricks '75 MkIII Roadster resto/furb


This is as clean as this area between the engine and transmission will probably ever be once it leaves the shop.

Ricks '75 MkIII Roadster resto/furb


Primary cover with new seal & o-rings for the inspection caps, new gasket of course. Z-plate just set in place for now...

Ricks '75 MkIII Roadster resto/furb

Chain & chainguard installed. Located spacer and installed center bolt a few minutes later.

Ricks '75 MkIII Roadster resto/furb


Z-plate, footpeg, shifter, exhaust supports installed.

Ricks '75 MkIII Roadster resto/furb


Passenger peg mounts & exhaust installed.

Ricks '75 MkIII Roadster resto/furb

Right hand electrical quadrant is really cruddy inside.

Ricks '75 MkIII Roadster resto/furb


Disassembled, cleaned & painted right side quadrant.

Ricks '75 MkIII Roadster resto/furb


Hand controls and cables installed.

Ricks '75 MkIII Roadster resto/furb

Whole lotta shiny stuff going on...

Ricks '75 MkIII Roadster resto/furb


Timing cover installed, this side is looking good, too!

Ricks '75 MkIII Roadster resto/furb


I hope to fire it up soon...

Rear master cylinder reservoir, front was similar

Ricks '75 MkIII Roadster resto/furb


Clean master cylinder reservoir

Ricks '75 MkIII Roadster resto/furb


Rear brake plunger, lots of grunt

Ricks '75 MkIII Roadster resto/furb


Clean rear brake plunger

Ricks '75 MkIII Roadster resto/furb

Rear master cylinder, totally gunked. Nice aftermarket stainless unit. Front wasn't as gunked up.

Ricks '75 MkIII Roadster resto/furb


Clean rear master cylinder.

Ricks '75 MkIII Roadster resto/furb


Rear piston was dirty, but it's stainless, so no corrosion. Front was in good shape.

Ricks '75 MkIII Roadster resto/furb

Rear brakes done including hoses, just need to fill and bleed.

Ricks '75 MkIII Roadster resto/furb


Front brakes done except filling & bleeding. Both terminals were broken off the brake light switch, replaced with a good one off the shelf.

Ricks '75 MkIII Roadster resto/furb

Starter housing will get a re-paint.

Ricks '75 MkIII Roadster resto/furb


Dirty starter parts...

Ricks '75 MkIII Roadster resto/furb


Nice 4-brush conversion!

Ricks '75 MkIII Roadster resto/furb


Commutator has a bad groove. I need to chuck it up in the lathe and turn it down, then undercut the mica in the slots.

Ricks '75 MkIII Roadster resto/furb

Starter Overhaul: Step 1 - chuck the armature in the lathe, center it and cut the commutator down till the low spot JUST cleans up.

Ricks '75 MkIII Roadster resto/furb


Step 2 - chuck the armature up in the mill vice and use a tiny bit to undercut the mica. Last time I did this was 38 years ago in the Navy, and we used thin, sharp hacksaw blades; took forever.

Ricks '75 MkIII Roadster resto/furb


Nice and clean, ready to spin up.

Ricks '75 MkIII Roadster resto/furb

Almost like herding cats, getting those 4 brushes back in their holders! I use o-rings to hold them, 1 at a time.

Ricks '75 MkIII Roadster resto/furb


Starter bearings lubed, and ready to re-install.

Ricks '75 MkIII Roadster resto/furb
